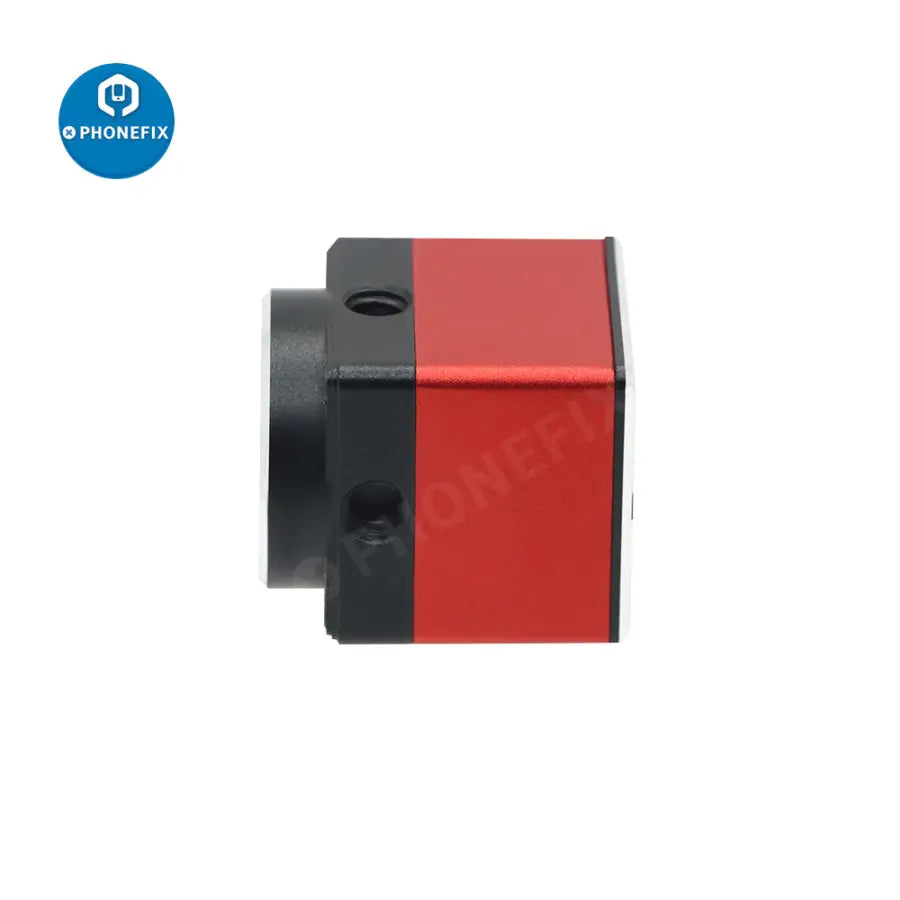

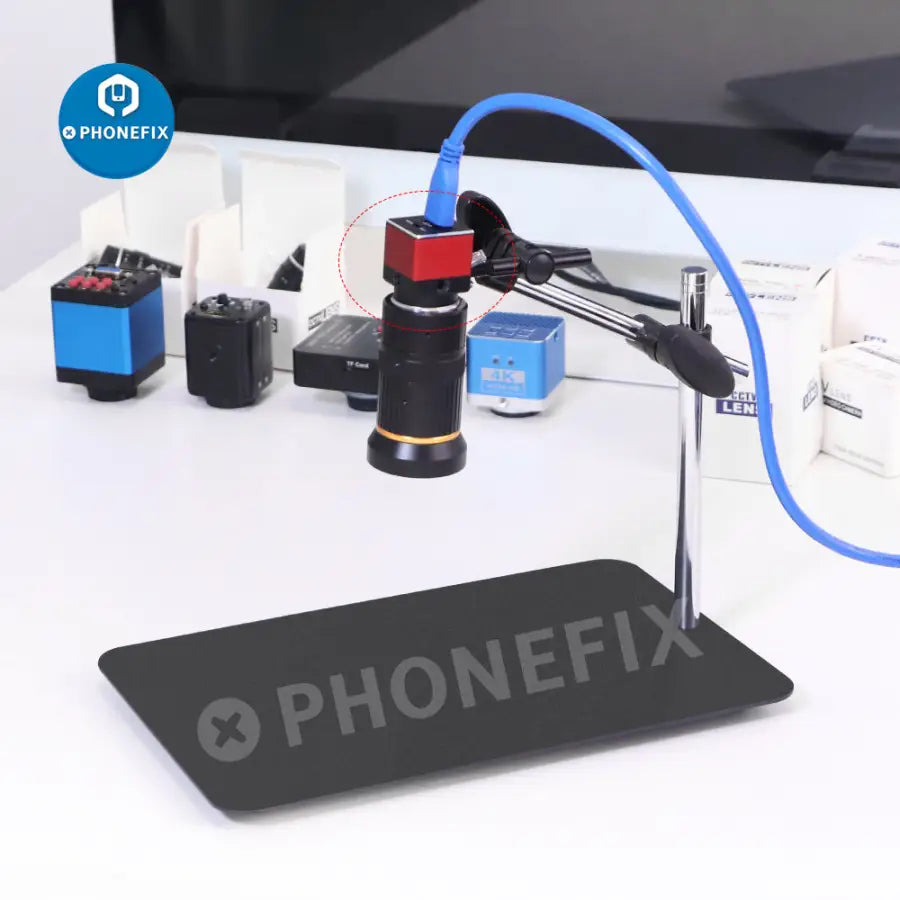

5MP Industrial Digital Camera, USB 3.0 Image Output, CMOS Sensor, 60FPS Electronic Digital Eyepiece Microscope Accessories.
Specification:

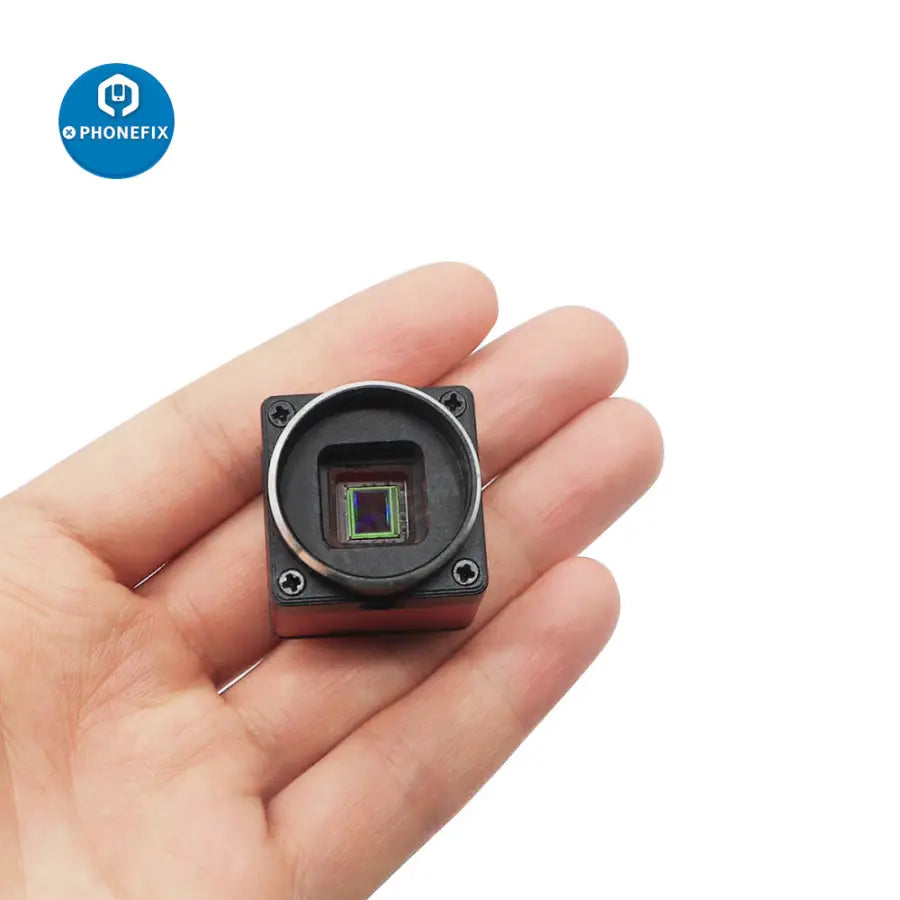

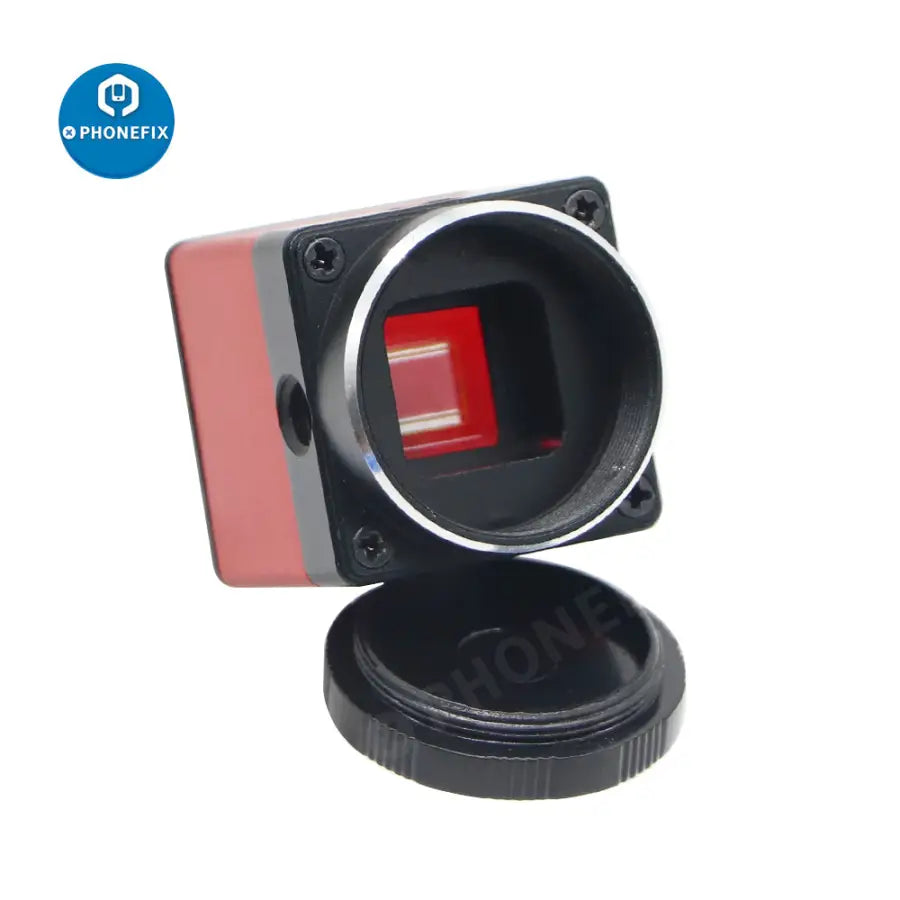

Imaging Sensor: Sony IMX335, 1/2.8 inches Color
CMOS Image Sensor
Scan Patterns: Scan Line By Line
Maximum Resolution: 5.0M, 2592 x 1944(5,038,848 Pixels)
Sensor Optical Format: 1/2.5" (5.70mm(H) x 4.28mm(V), Diagona 7.13mm)
Pixel Size: 2.2μm x 2.2μm
ADC:12-bit, 8-Bit R.G.B to PC
SNR: Signal to noise 35dB
Dynamic range: 64dB
Spectral Characteristics:380-650nm
Preview Modes:
Frame rate MJPG 2592*1944@25FPS
1920*1080@60FPS
1280*720@60FPS
640*480@60FPS
Frame rate YUV422: 2592*1944@25FPS

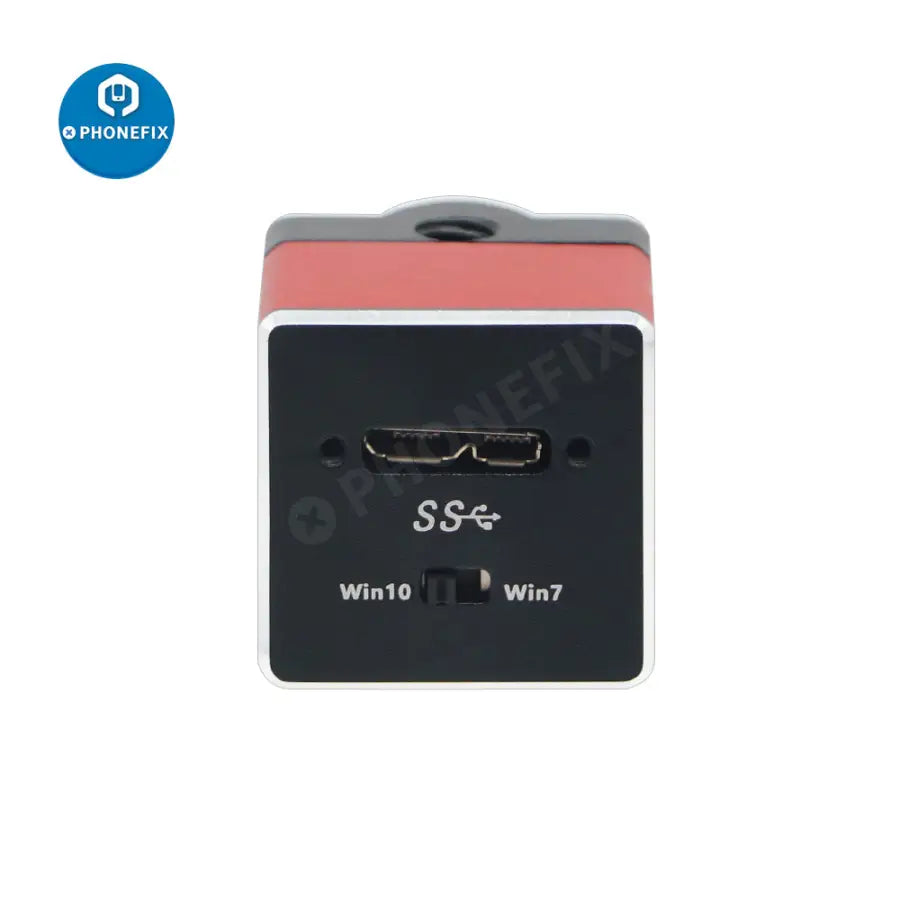

Image output: USB3.0 UVC
Exposure Capability: Exposure mode Rolling shutter
White Balance: Automatic And Manual
Working temperature: Environment temperature-20~ 70Degree
Storage temperature: -40~ 85Degree

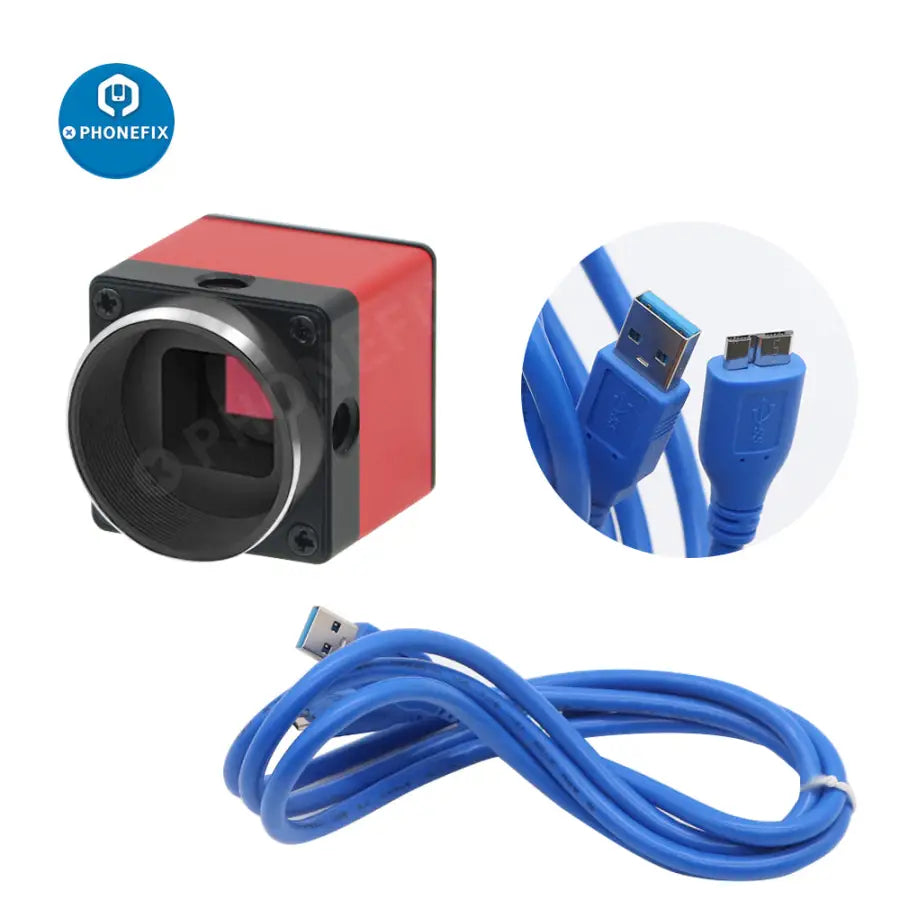

Package:
1 X USB 3.0 Camera

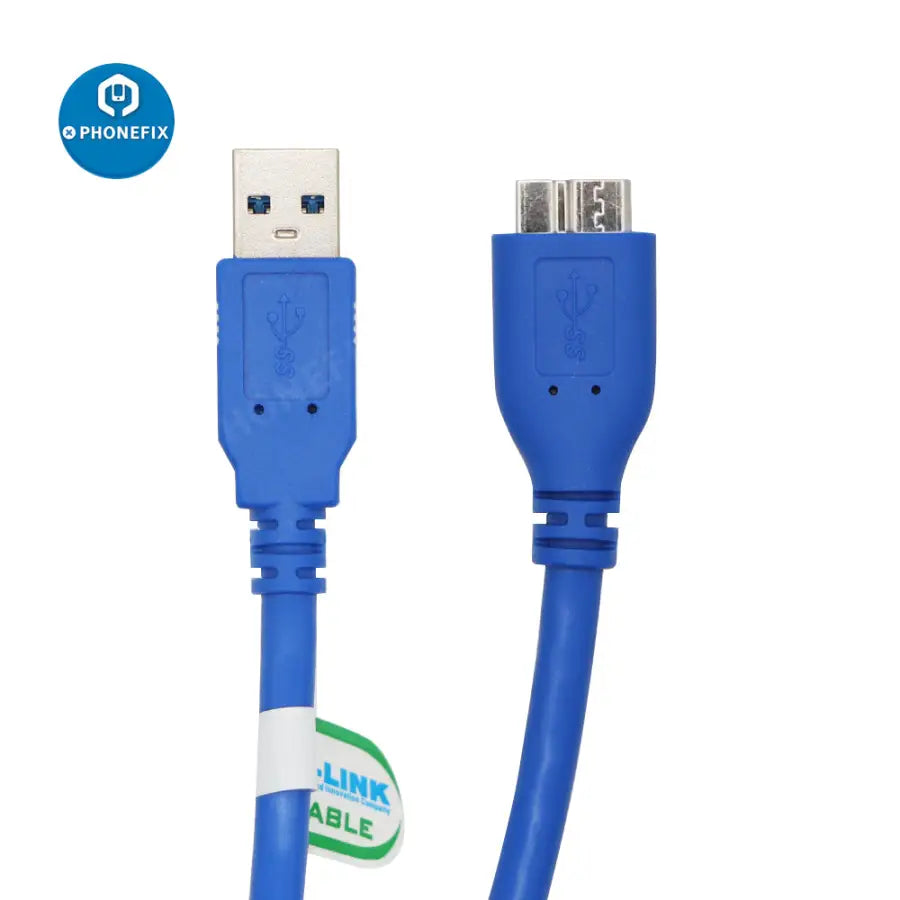

1X Cable
