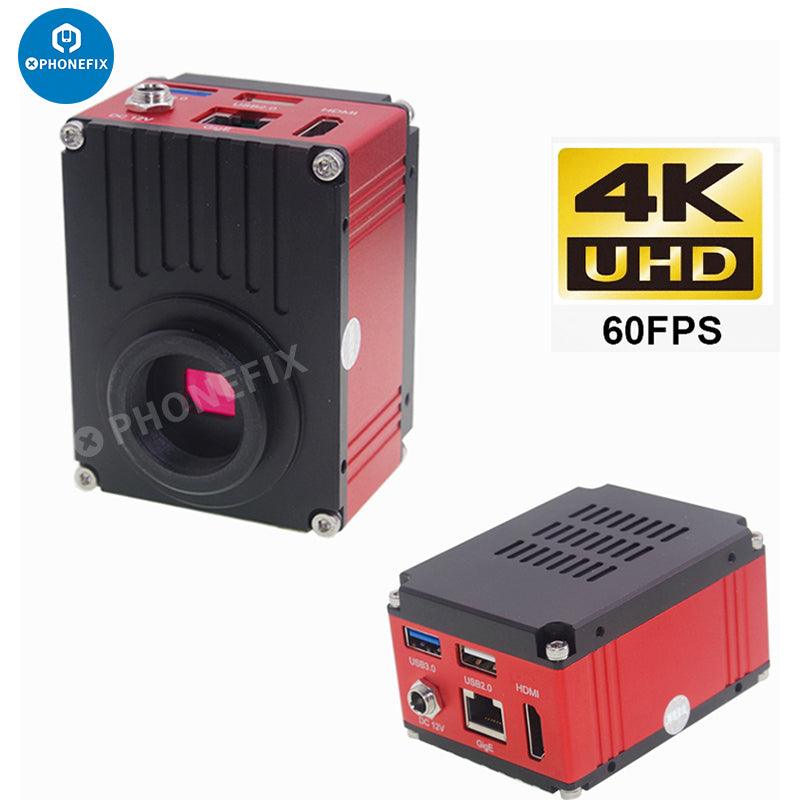

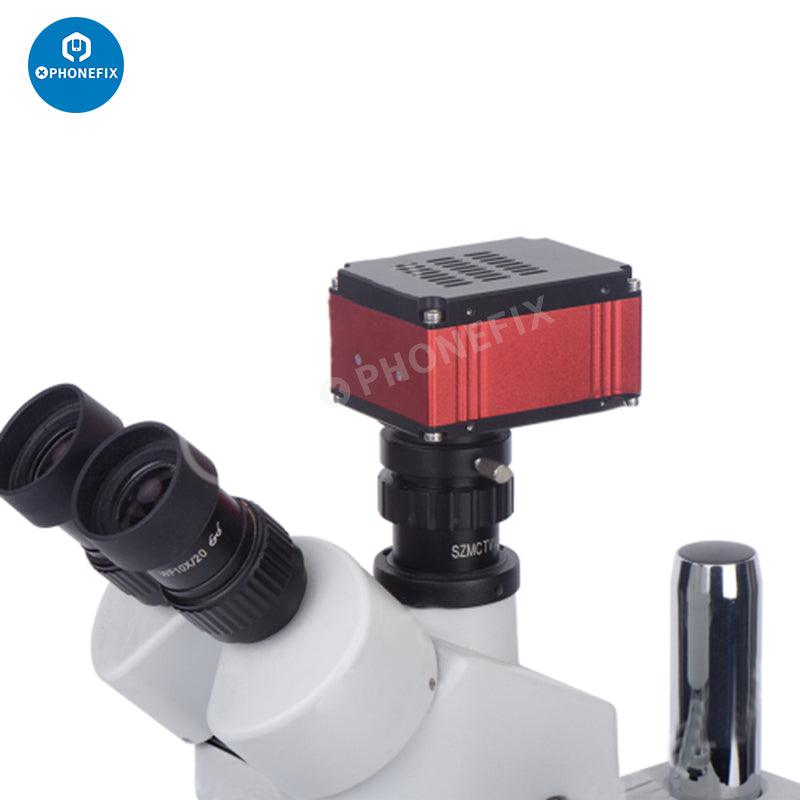

4K @60FPS UHD 1080P HDMI LAN FHD industry microscope digital video camera. It enables real-time HDMI transmission to a display and includes a Gigabit Ethernet port. It is a reliable and efficient way to transmit HDMI data to a display and observe it via a computer with this 2K camera.
Features:
-
Real-time HDMI transmission: The device enables real-time transmission of HDMI data to a display, providing a reliable and efficient way to view multimedia content.
-

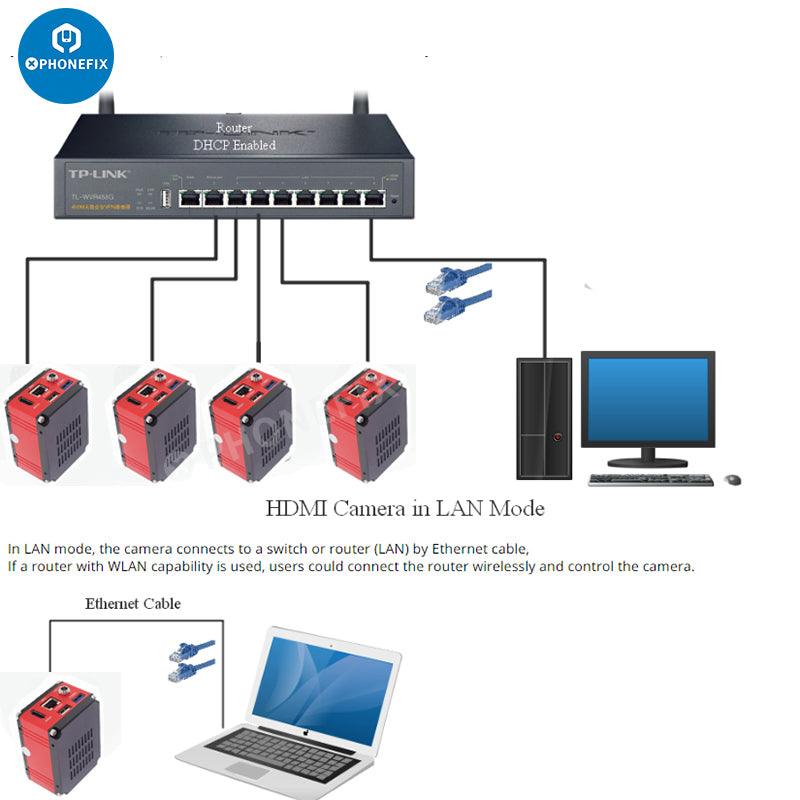

Gigabit Ethernet Port: The device features a Gigabit Ethernet port that allows connecting to a computer, enabling users to observe HDMI data being transmitted.
-
Sony high-end CMOS Chip: The device is equipped with a high-end Sony CMOS chip, providing high-quality imaging and performance.
-
8GB built-in storage: The device has 8GB of built-in storage space, allowing users to store and retrieve data quickly and easily.
- UI Digital design, mouse operation, humanized design.
-
Length measurement: Line length, line length, curve length, parallel line distance, point line distance.
- The center distance: The radius fixed circle, two points setting circle, three points setting circle.
- Geometric measurement: Line length, radius fixed circle, two-point fixed circle, three-point fixed circle, concentric circles.
Specifications
-
Model: TD-4KC 4K Imaging

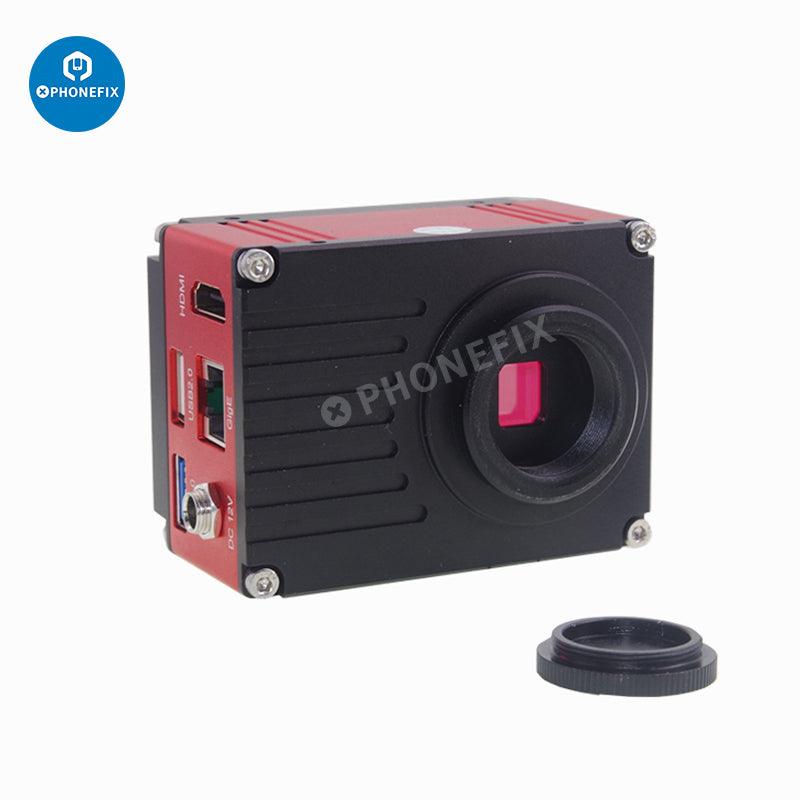

- Thread: C mount
-
Resolution: 3840X2160P@60FPS
-
COMS: 8 million pixels
-

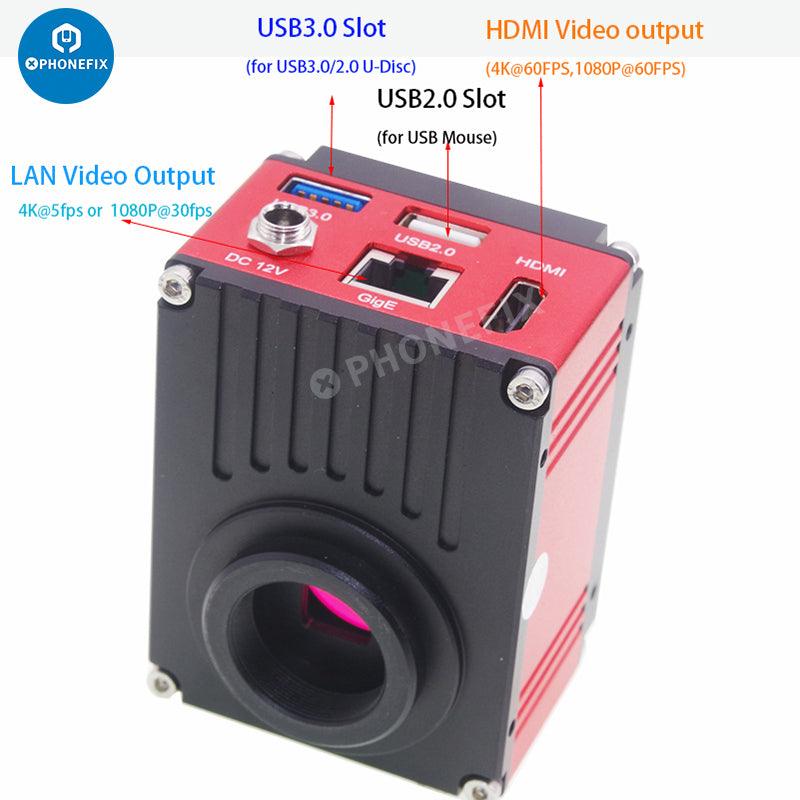

Output Interface: HDMI+Gigabit Ethernet port+USB3.0+USB2.0
-
Power Supply: DC-12V/1A
-
Measurement Accuracy: 0.0001MM
-
Optical Size: 1/2.8 inch
-
Pixel Size: 1.85um X 1.85um
-
Operation Mode: Mouse
- The geometric area: Polygon, square
-
External Equipment: HD HDMI Display + Computer
-
Basic Functions: Taking pictures, Measuring, Storing, Video Recording
-
Image Quality Adjustments: Exposure, White Balance, Brightness, Contrast, Saturation, Hue, Anti-Reflection
-
Camera Functions: Grid Line, Black and White, Electronic Zoom in and Out, Contrast, Scale, Screenshot, Freeze.
- Output interface: 4K HDMI, USB (for USB mouse, USB Disk, cannot output the video to the PC), TF card.
Video Output:
HDMI Interface
- Comply with HDMI2.0 standard;
- Max frame rate 60fps@4K or 60fps@1080P;
- The video saved into SD card or USB drive, video can be replayed on TV monitor directly from SD card or USB drive.
- H264 encoded video;
- Bandwidth adjustment in real time;
- Unicast/multicast configuration;
- DHCP configuration or manual configuration.
