3.5X -90X Simul Focal Stereo Trinocular Microscope Set + 1080P 51MP 38MP 2K 48MP 4K HDMI USB VGA Video Camera 2.0X 0.5X C Mount Lens 56 LED Ring Lamp for Smart Phone PCB Soldering Repair Tool.
Applications:
- Zoology, biology, botany, entomology, histology, mineralogy, archaeology, geology, and dermatology.
- Textile industry raw material & cotton wool inspections.
- Electronics industry for inspections/repairs on mobile phones, watches, and transistors
- Biological anatomy and precision parts manufacturing.
- Inspection of surface quality of lenses, prisms, transparent substances, and precision scales.
- Inspection of cultural relics, books, coins, calligraphy, and paintings.
- Widely used in textile products, chemistry, plastic products, electronic manufacturing, machinery manufacturing, pharmaceutical manufacturing, food processing, printing industry, colleges and universities, and archaeological research, among many other fields.
Features:
- Super Widefield High-Eyepoint Optics.
- Sturdy all-metal pillar stand, Powerful 56-LED ring light with dimmer.
- An excellent stereo inspection microscope with intensity-adjustable 56-LED ring light.
- 7x-45x super wide zoom magnification power.
- Bright cool light 56-LED illumination system.
- High resolution with great flatness and contrast, giving sharp and clear images.
- Trinocular head with 45 degrees inclined 360 degree swiveling eye tubes
- Sharp stereo erect images with a wide field of view.
- Crystal clear original true color microscope images.
- Dual eye tubes with adjustable diopters.
- Large working distance.
- Sturdy all-metal table stand.
- Accurate alignment reduces eye strain for longer periods of viewing.
- Full optical glass elements.
- Precise ground glass lenses.
- Full metal chrome-plated mechanical components.
- Adjustable interpupillary distance.
- Rubber eye-guards included.
Specifications:
- Head: 45-degree inclined 360-degree swiveling trinocular simul-focal
- Eyepiece: 30mm super widefield high-eyepoint WF10X/20
- Objective: 0.7-4.5X
- Zoom Range: 6.5:1
- Trinocular Port: 23mm photo port
- Interpupillary Distance: 2-1/8" to 3"(54-76mm)
- Field of View: 1-1/4" (33mm)
- Working Distance: 7X-45X (100mm) Use 0.5x objective lens 3.5X-45X(165mm) Use 2.0x objective lens 7X-90X(30mm)
- Head Mounting Size: 3" (76mm) diameter
- Accessory Mounting Size: 1-7/8" (48mm female thread) diameter
Parameters:
- Aluminum alloy shell processed by CNC fine milling technology;
- Support the shutdown setting parameter saving;
- Support for Chinese and traditional Chinese and English menu languages;
- Support remote control operation, take photos without shaking the image clearer;
- Support for TF card storage, up to 64GB support;
- Provide the center cross-line display / close;
- Provide 16-line drawing line function, line color, thickness, adjustable position;
- Automatic white balance / one-key white balance, red, green, blue adjustable;
- Automatic exposure / one-click exposure, exposure compensation value adjustment;
- Electronic scaling function;
- A 48-megapixel photo recording and a 1080P video recording;
- One-click freeze / thaw function;
- 48 Million photos, JPG format, photo size 8000x6000.
Parameters
- Aluminum alloy shell processed by CNC fine milling technology;
- Support the shutdown setting parameter saving;
- Support for Chinese and traditional Chinese and English menu languages;
- Support remote control operation, take photos without shaking the image clearer;
- Support for TF card storage, up to 64GB support;
- Provide the center cross-line display / close;
- Provide 16-line drawing line function, line color, thickness, adjustable position;
- Automatic white balance / one-key white balance, red, green, blue adjustable;
- Automatic exposure / one-click exposure, exposure compensation value adjustment;
- Electronic scaling function;
- A 48-megapixel photo recording and a 1080P video recording;
- One-click freeze / thaw function;
- 48 Million photos, JPG format, photo size 8000x6000.
76mm Microscope Stand:
- Type: Microscope Stand
- Material: Metal
- Connecting Objective: DIA 76mm
- Connection Pillar: DIA 32mm
- Stand Size:200mm x 255mm x 250mm
- Applications: Stereo Microscope Binocular Microscope Trinocular Microscope
- Support base: 32mm
- Boom hole diameter (ie connected to the microscope): 32mm
- With the column diameter: 32mm

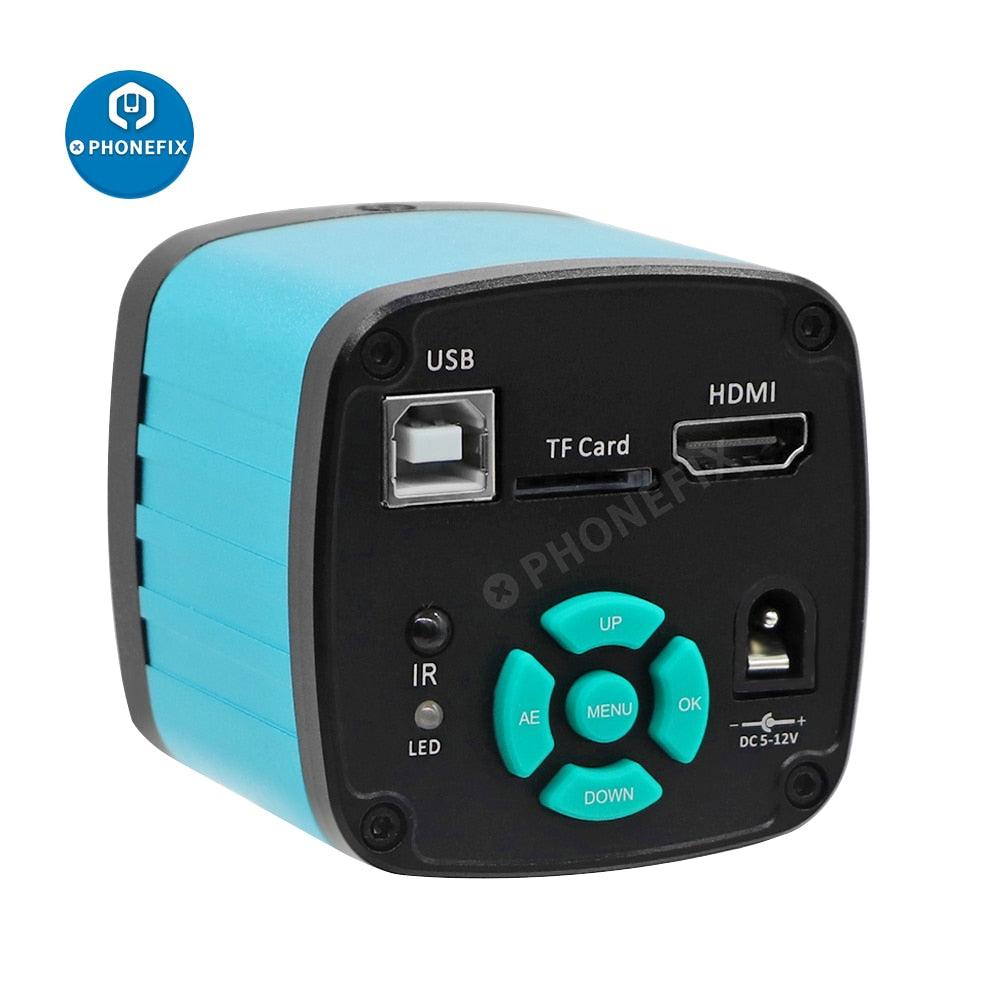

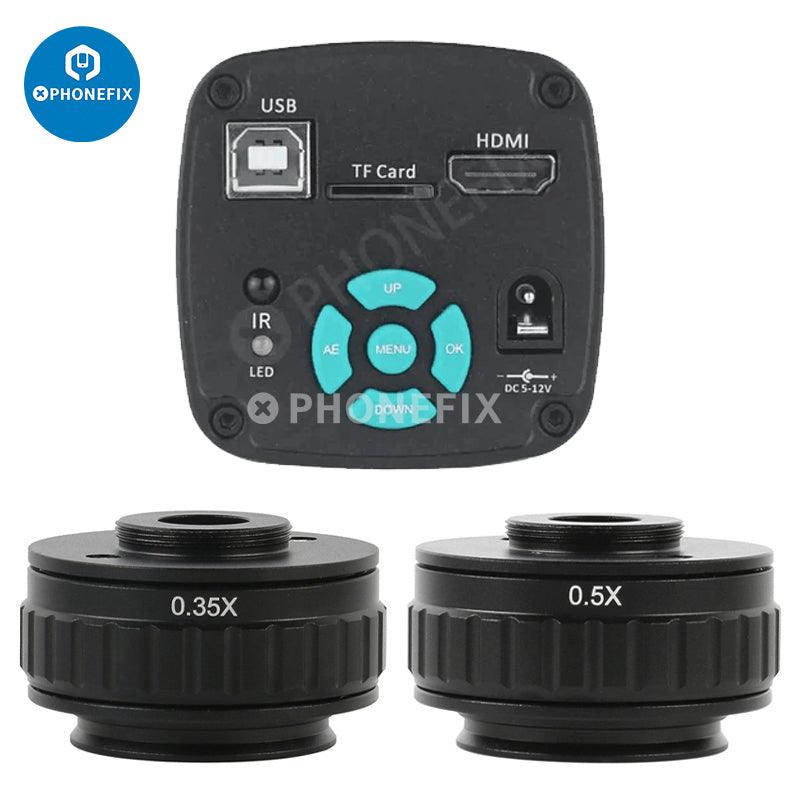

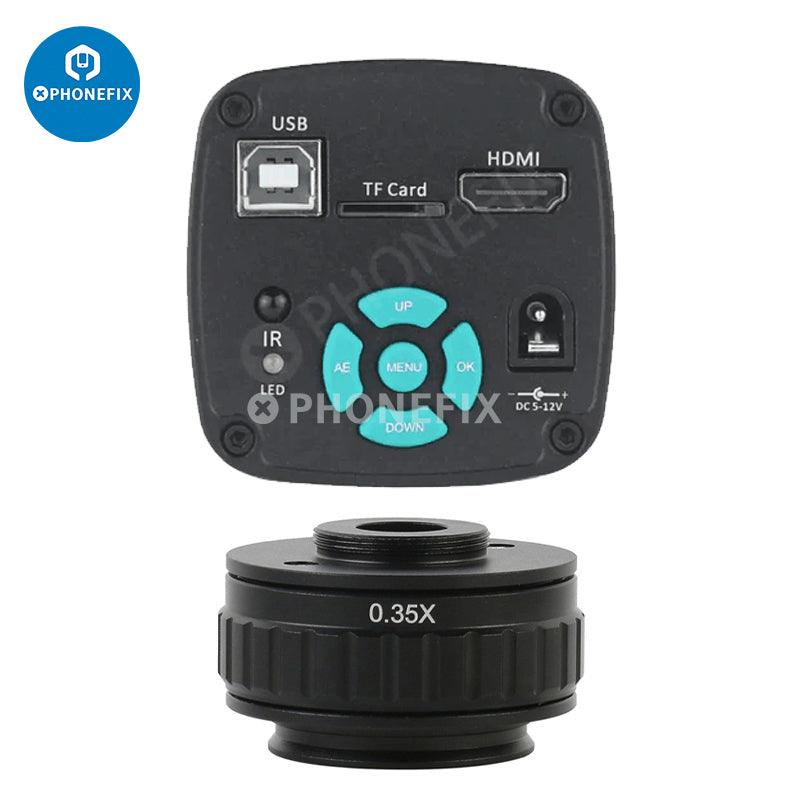

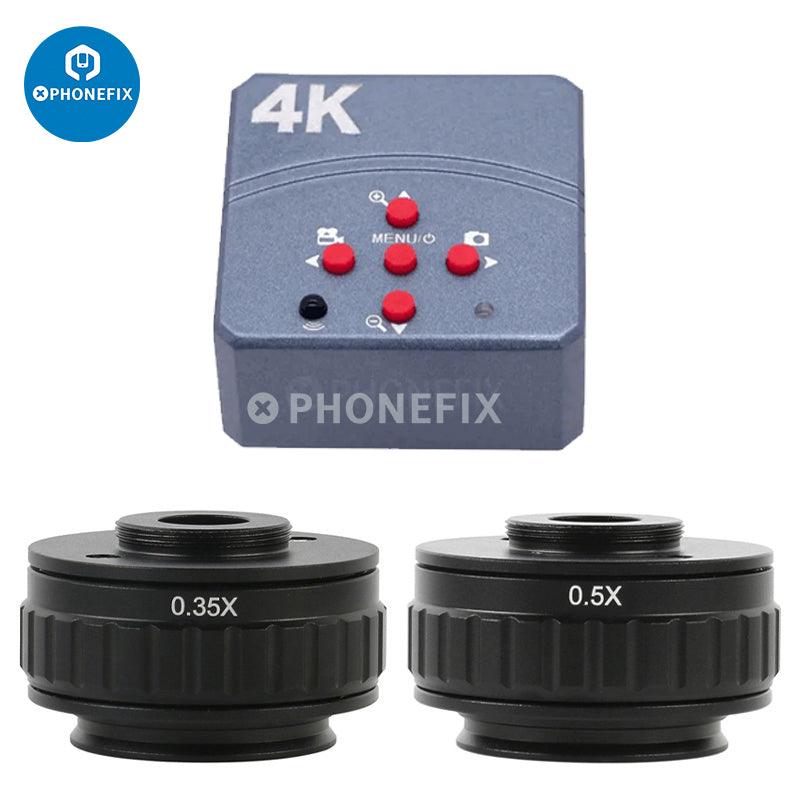

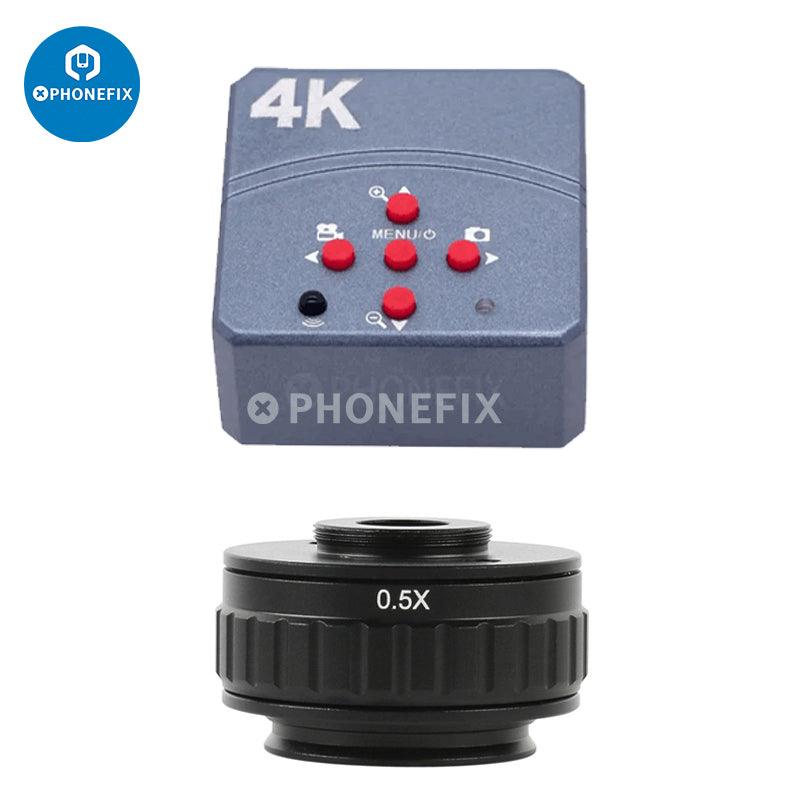

48MP 2K 4K TF HDMI USB:
- Model: Camera with HDMI USB2.0 two output
- Image sensor: 48-megapixel Panasonic sensor
- Frame rate: 60F/S @ HDMI output
- Movie size:4K(25fps) 2K(30fps) 1080P(60fps) 720P(60fps)(Note: If you need to record 4K or 2K video, you need to use the SDHC class10 TF card.)
- Housing: All metal
- Support: C-Mount lens
- Digital magnification: 5 times digital zoom
- White balance: Auto/manual
- Cross cursor: Support multi-color, size adjustable
- TF card interface: Max 32G
- video format: MOV
- HDMI interface: HDMI/UDB output
- Image: 48M 8000X6000/38M 7168X5376/26M 5888X4416/20M 5120X3840/16M 4608X3456
- Language: Chinese/English
- Mirroring: Support
- Frequency:50Hz/60Hz
- Monitor: 16:9/16:10/4:3
- Grid line: 15 Horizontal line, 15 Vertical line, Central scale line, Custom colors, Size
- Power supply:5-12V 1A
VGA USB HDMI Video Microscope Camera:
- VGA Input 2.0MP 200W 1080P, 30FPS, 1/3 inch
- High Quality, High Resolution, Clear Images
- CMOS
- Photo Model / Video Model
- Industry Cmos Camera. It can Show the live image directly on any HDMI monitor, Projector or TV.
- It builds in digital crosshairs and color control, add line in the pictures, freeze, Mirror, Rotate, Negative, Compare function
- Supply USB, HDMI HD video, VGA, output ports

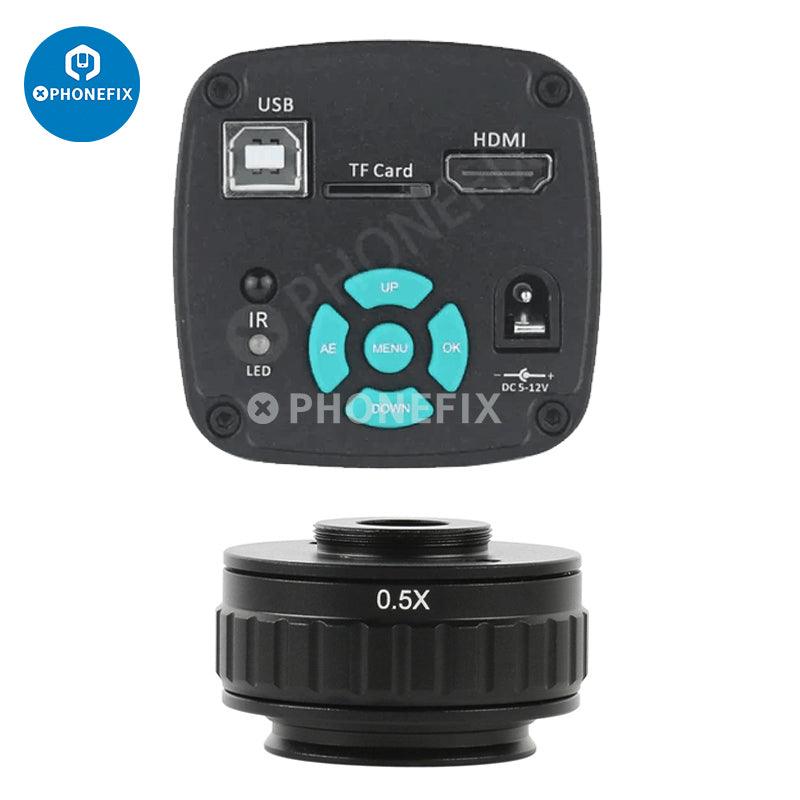

38MP Camera:
- Model: Camera with HDMI USB 2.0 two outport
- Image resolution: 4640*3480 pixels (for TF card); 1920*1080 pixels (for PC USB)
- Video recorder: 1920*1080 pixels @30FPS (for HDMI USB)
- White Balance/Light: Auto
- Negative and Freeze: Support
- OSD: English/Chinese/French/Spanish/Portuguese
- Line: different color, 4 horizontal line, 4 vertical line, any positions
- Pixel size: 1.43x1.43um
- Frame rate: 60fps
- Definition: FULL HD, Video format: AVI
- Encode: H.264 (High Profile)
- Brightness control: Auto/manual
- Film and record: Support
- Cross cursor: Support multi-color, size adjustable
- TF card interface: Max 32G
- Lens: C, custom provide CS

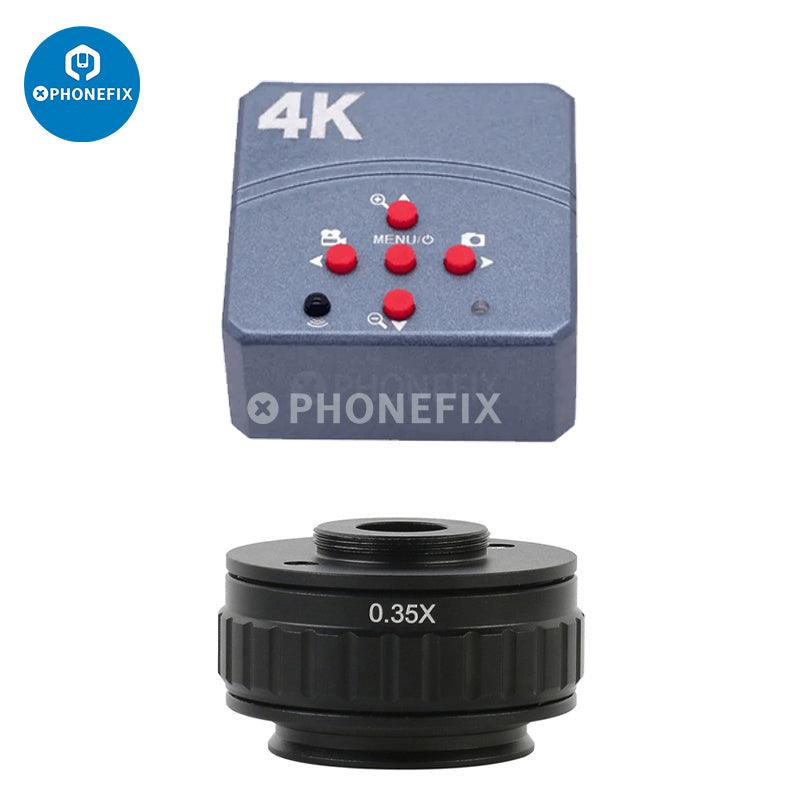

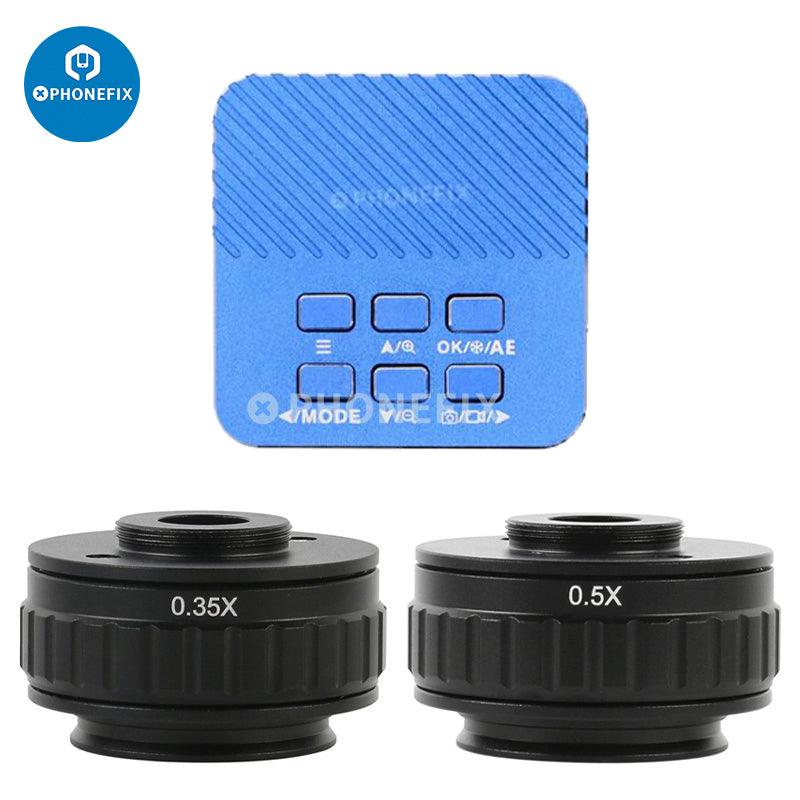

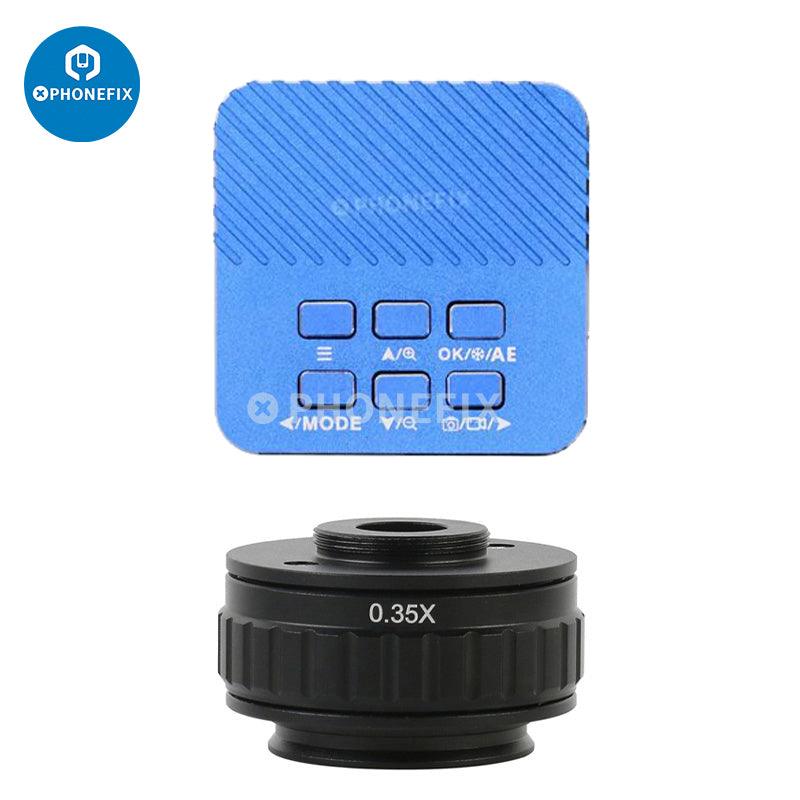

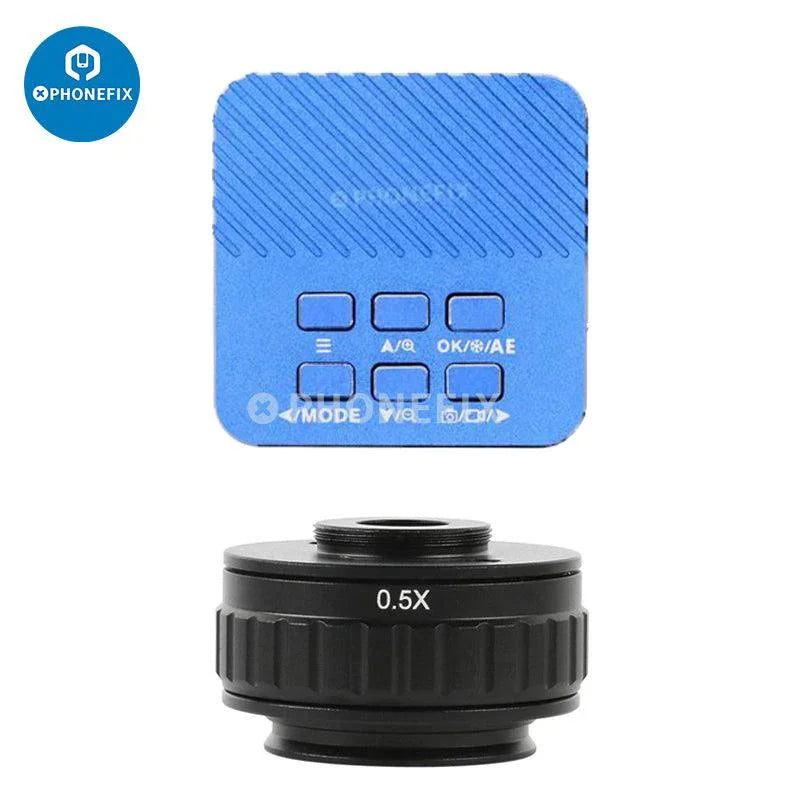

48MP HDMI Type-C 4K:
- Sensor A1 / 2.8 SONY 2-megapixel import sensor
- Pixel size 2.9µm × 2.9µm
- HDMI output 1920*1080 60FPS
- TYPE-C output 1920*1080/30 1280*720/30 640*480/30 320*240/30 (MJPG)
- Lens interface C/CS
- Exposure Automatic / manual
- Exposure Compensation support
- White Balance: Automatic / manual, support for RGB adjustable
- Memory; Max. support is 64GB
- Input Voltage: DC: 5V
- Lineation: 16 lines, with adjustable color, thickness, and position
- Center Line: Support
- Menu Language: English / Chinese
- Tele-Controller: Support for the remote-control operation
- Net Weight: 150g
- Rough Weight: 350g
- Product Size: 66*66*49mm
- Packing Measurement: 145*130*70mm

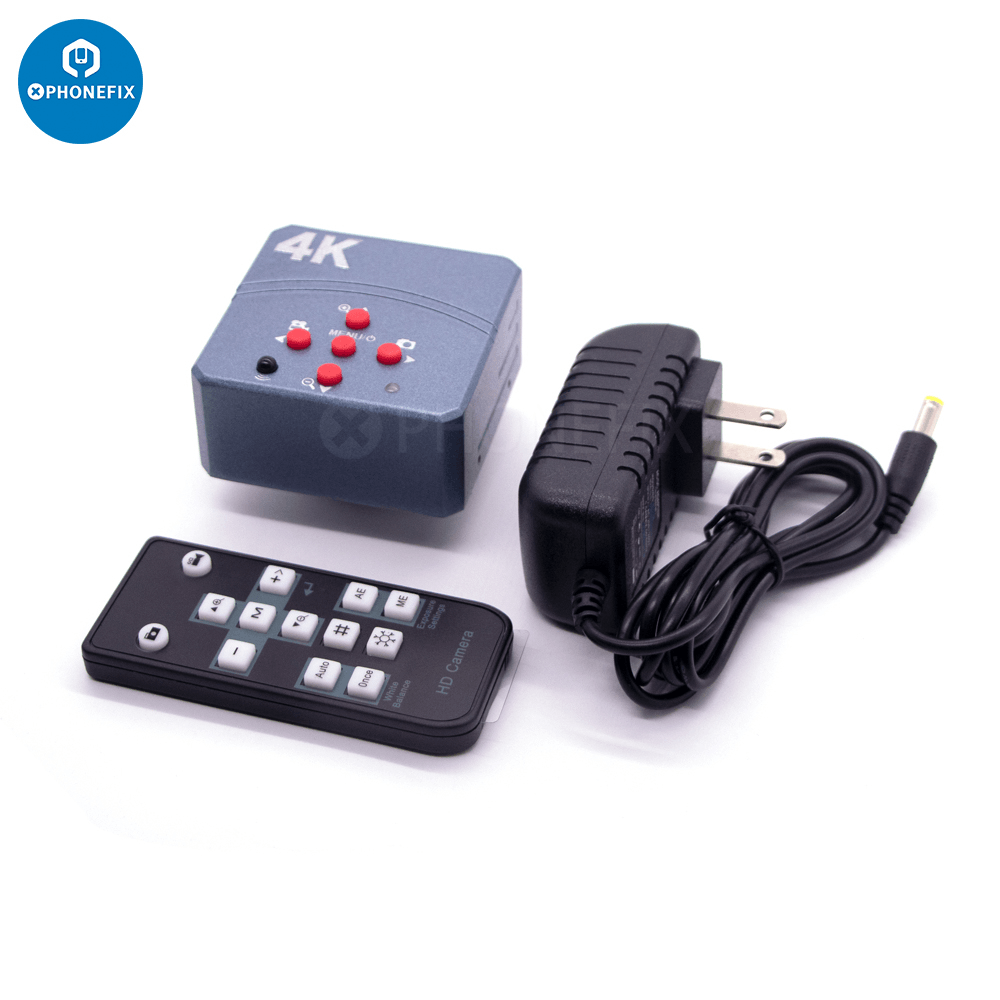

4K Video Recording;
- TYPE-C no-drive output 1080P 30-frame image output;
- HDMI 1080P 60FPS image output;
- With a 1 / 2.8-inch image sensor, the perspective is wider than 1 / 3 inch;
- Using a 2-megapixel imported SONY sensor.

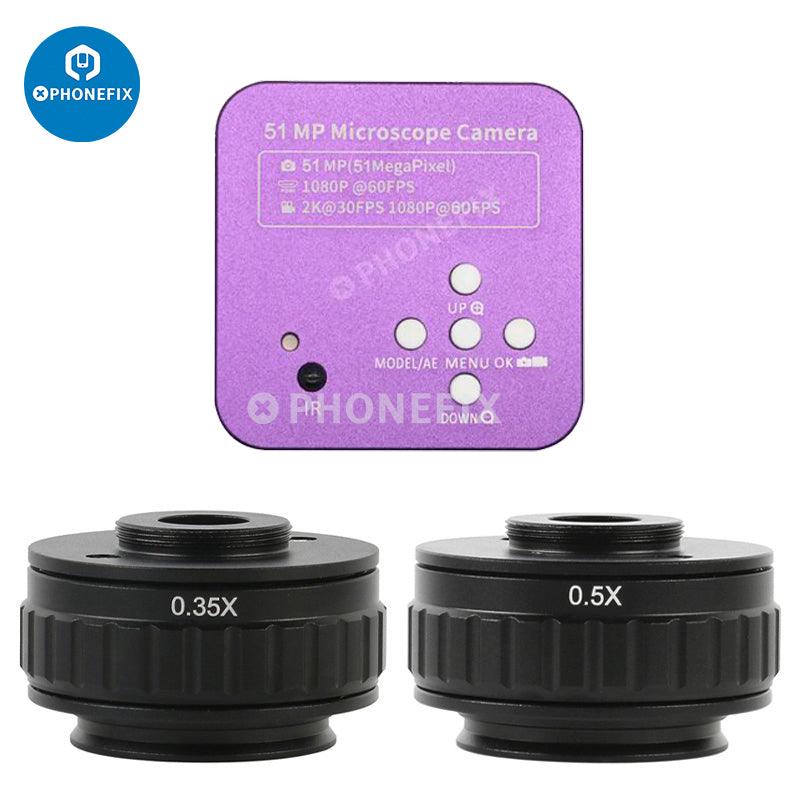

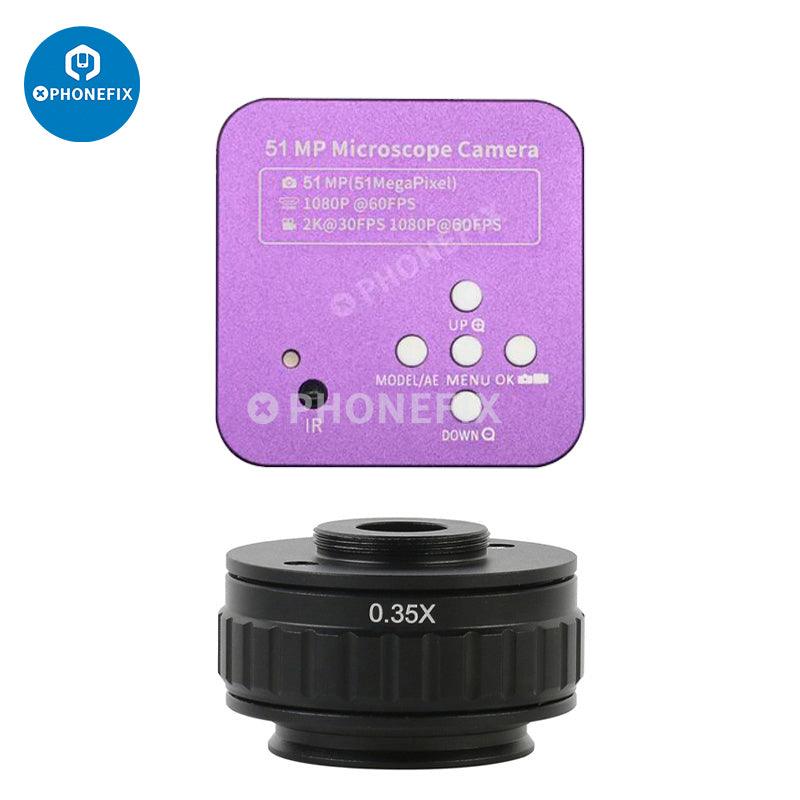

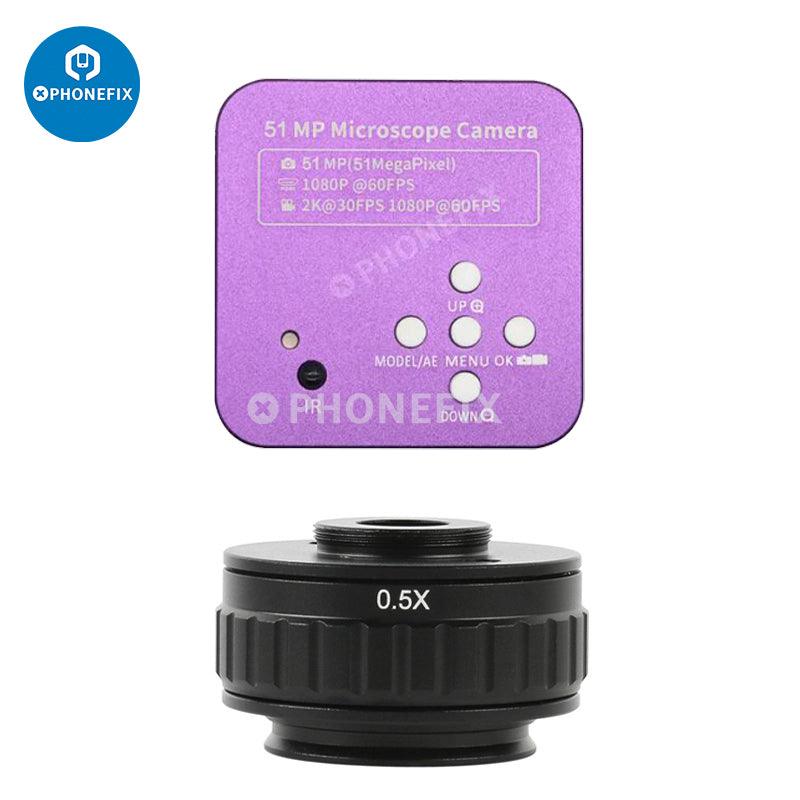

51MP 2K HDMI USB:
- Image sensor: 51-megapixel Panasonic CMOS sensor 1/2.33 inch
- Effective pixel: 51 megapixels
- Pixel size:1.335μm × 1.335μm
- Frame rate:60fps
- Definition: FULL HD
- Housing: metal
- Lens: C/CS
- Video format: MOV
- Digital Zoom: Support
- Brightness control: Auto/manual
- Color: R/G/B adjustable
- Film and record: Support
- Cross cursor: Support multi-color, size adjustable
- Transverse and vertical line:
- Support multi-color, 5 pcs of transverse lines/vertical lines, moveable
- Different color,5 horizontal line, 5 vertical lines, any positions
- TF card interface: Ax 64G
- HDMI interface: Standard HDMI output (Type A)
- USB interface: Standard USB2.0 interface (Type B)
- Input Voltage: DC 12V
Package Including:
1 x Trinocular Stereo Zoom Head
1 x Pair of Super Widefield 10X20MM Eyepieces
1 x 56-LED Ring Light
1 x Pillar Table Stand
1 x Focusing Rack

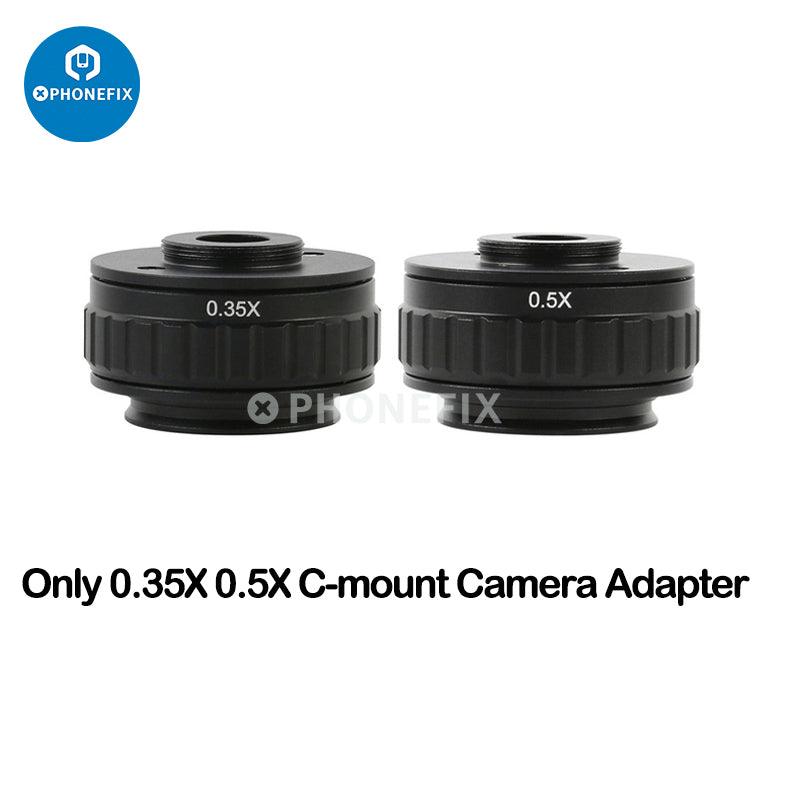

1 x 0.5X C-mount Adapter
1 x Pair of Eye-Guards
1 x Dust Cover
1 x Table Stand
1 x 0.5X Microscope Auxiliary Objective Lens (Working Distance 165 mm)
1 x 1.0X Microscope Auxiliary Objective Lens (Protection function)
1 x 2.0X Microscope Auxiliary Objective Lens (Working Distance 30 mm) (Optional)
1 x Microscope Camera
1 x DC Power Adapter
