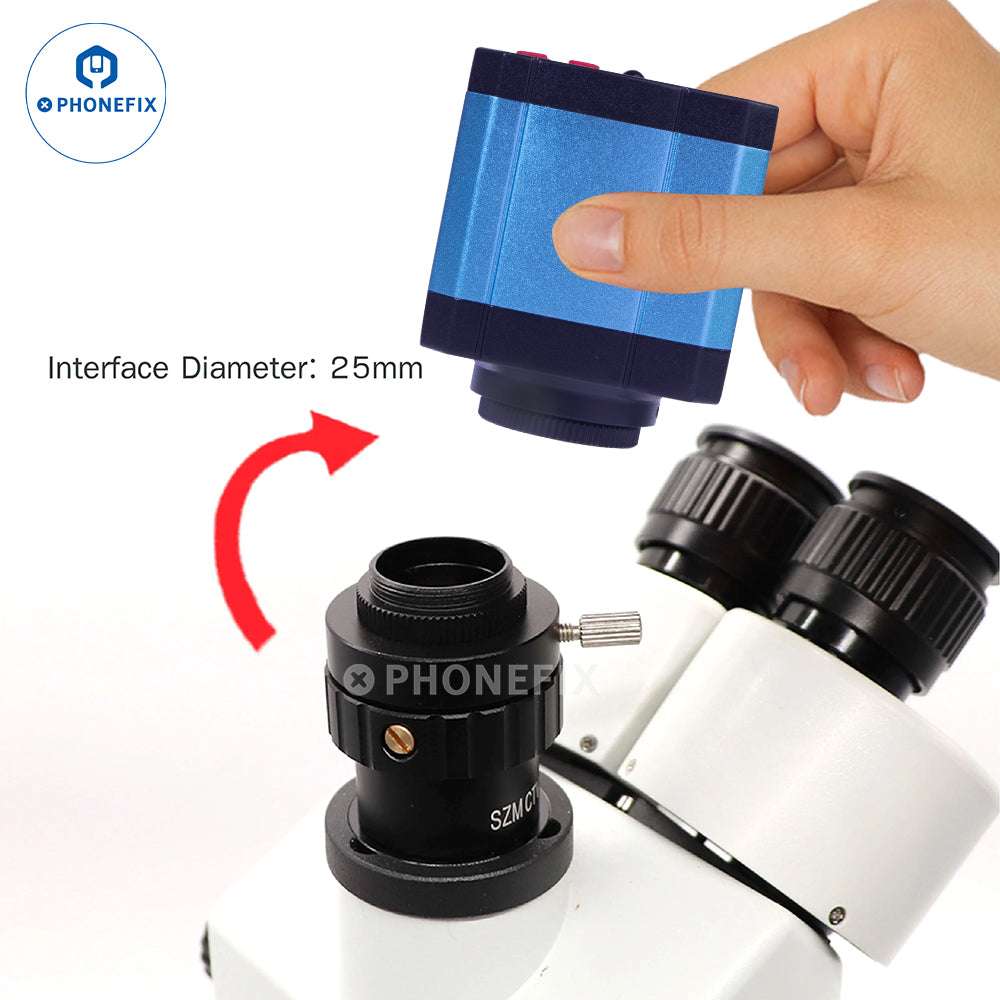

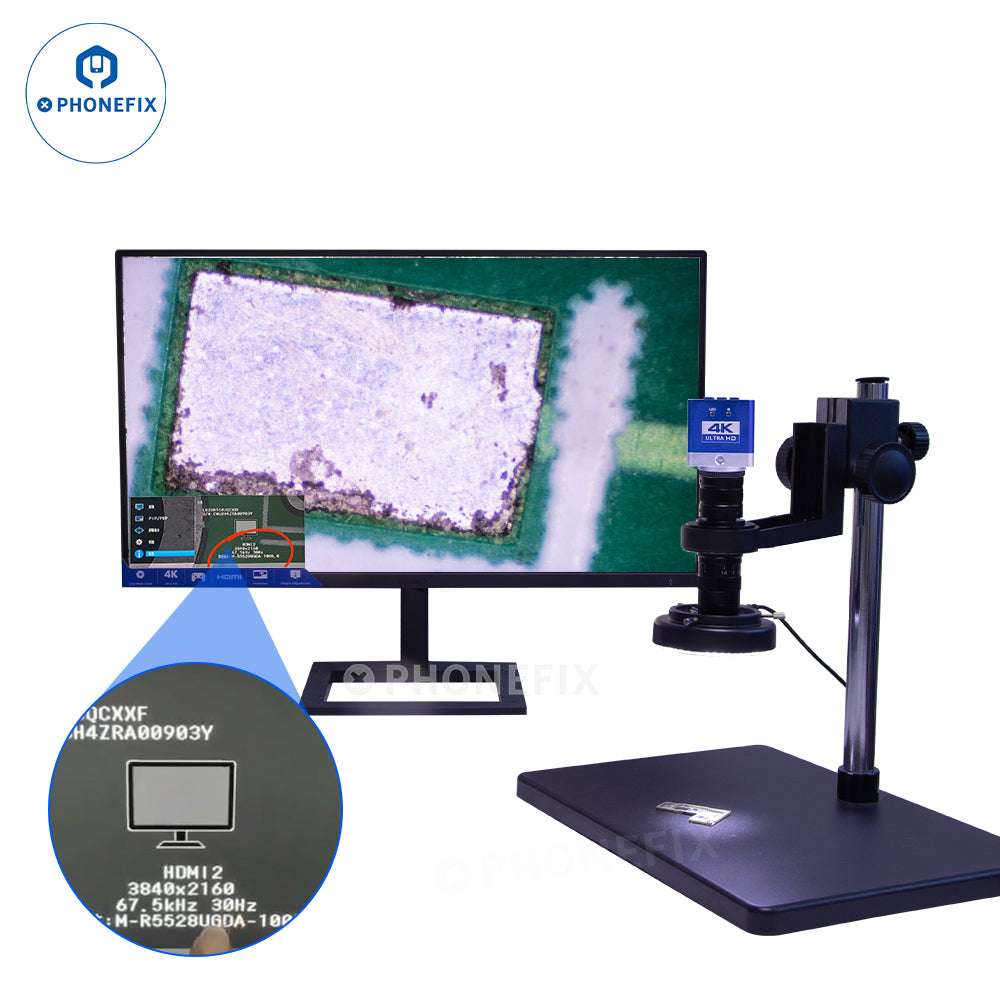

True 4K UHD Camera with 60 Megapixel 1/2" 1/2.7" Sensor HDMI USB Type-C Port for industrial stereo trinocular microscopes and C-mount adapters. Professional imaging with true 4K 60MP high resolution and enhanced clarity. Equipped with advanced Sony sensors, with multi-resolution recording, customizable cross-line functionality and support for 11 languages, very suitable for mobile phone repair, electronic motherboard welding repair, industrial testing, research and various high-precision tasks

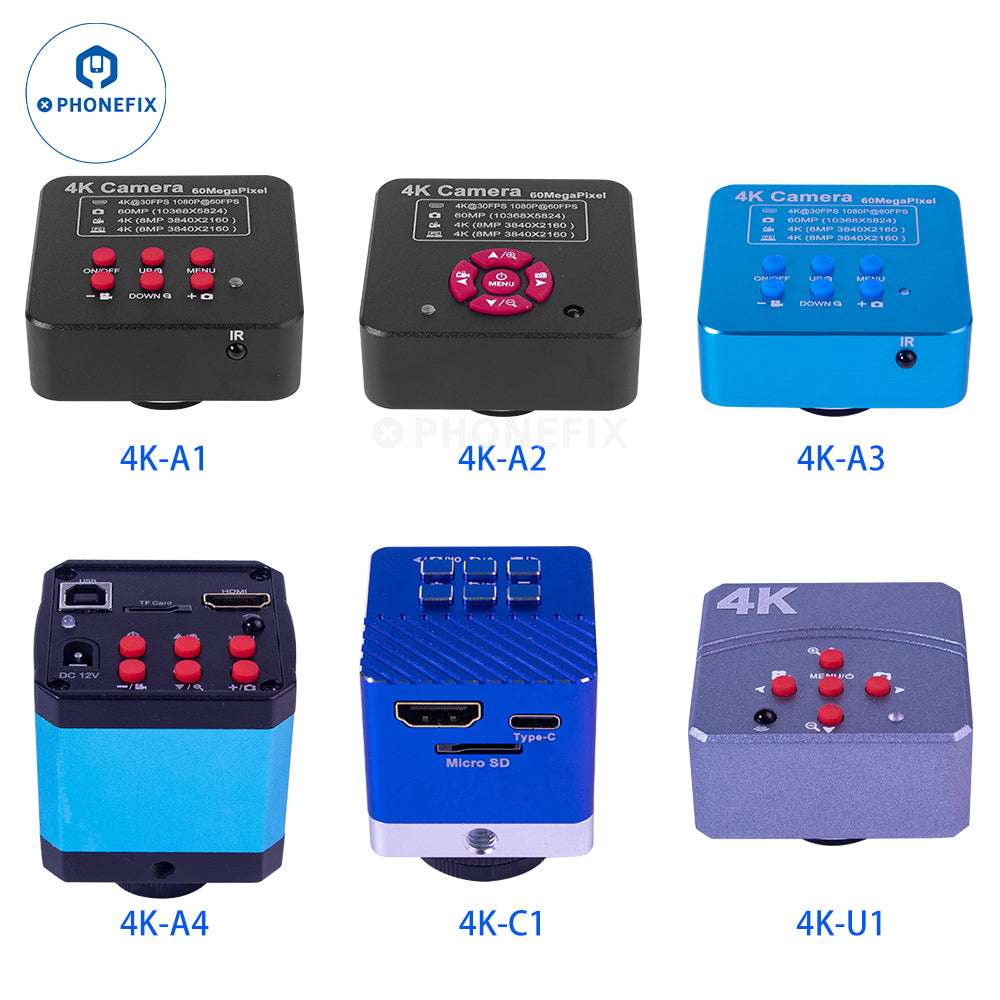

Option:
Option1: 4K-A1: HDMI + USB Port + TF Card.
Option2: 4K-A2: HDMI + USB Port + TF Card.
Option3: 4K-A3: HDMI + USB Port + TF Card.
Option4: 4K-A4: HDMI + USB Port + TF Card.
Option5: 4K-U1: HDMI +USB Port + U Disk.
Option6: 4K-C1: HDMI + TypeC + TF Card.
Features:
1. High-resolution photos: 60MP(10368×5888) images are directly stored to TF or USB drive for easy use.
2. Sony original chip: Provides enhanced image processing and high sensitivity for excellent results.
3. Precise cross-line support: Configurable 32-line overlay for precise alignment and measurement.
4. Compact and lightweight: Ergonomic design, easy to install and carry.
5. Versatile connection: Multiple interface options (HDMI, USB, Type-C, TF card) for flexible integration.
6. 4K UHD resolution: Output 4K@30FPS and 1080p@60FPS via HDMI and USB to capture fine details clearly.
7. Durable structure: Industrial-grade materials ensure stability and service life.
8. Energy-saving design: With progressive scanning and low power consumption, it can provide reliable performance.
9. Customizable imaging: Adjust brightness, contrast, sharpness, and saturation for tailored results.
10. Multi-language support: Includes 11 language options for global usability.
11. Good quality and low price, economical and affordable 4K camera.

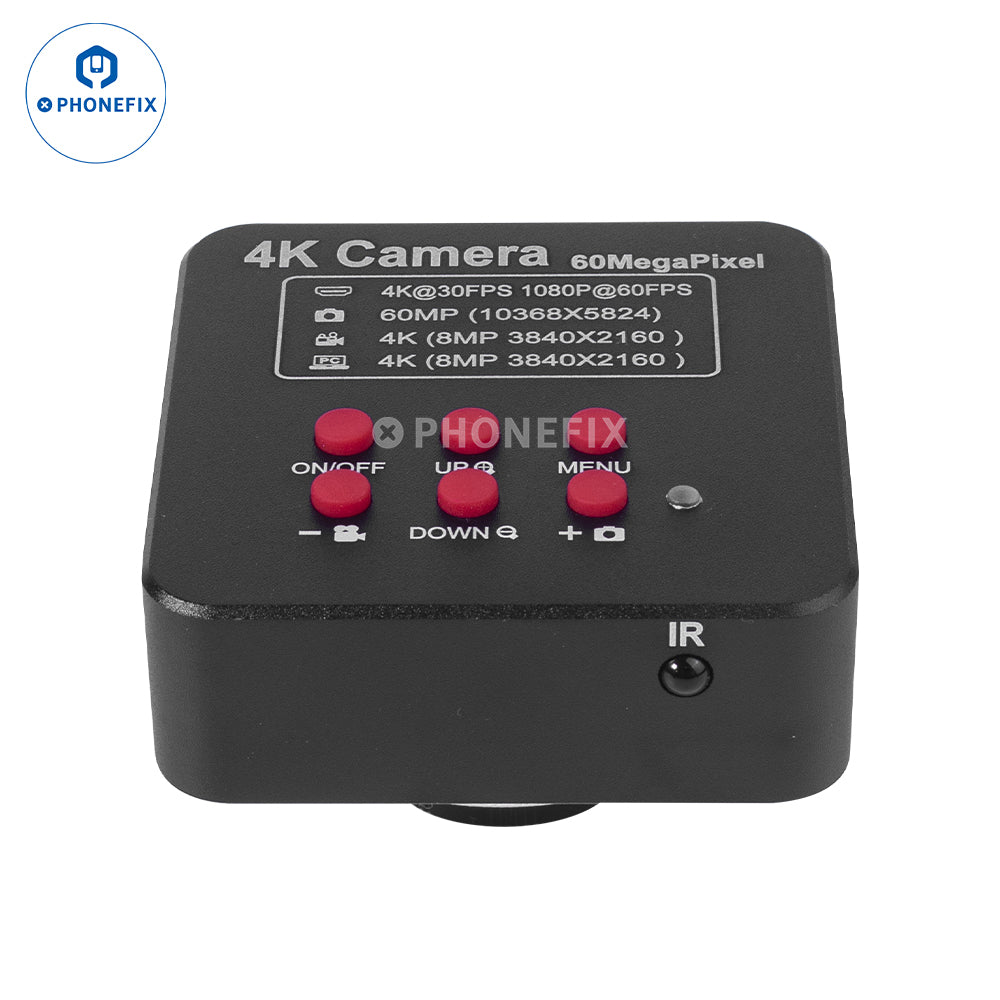

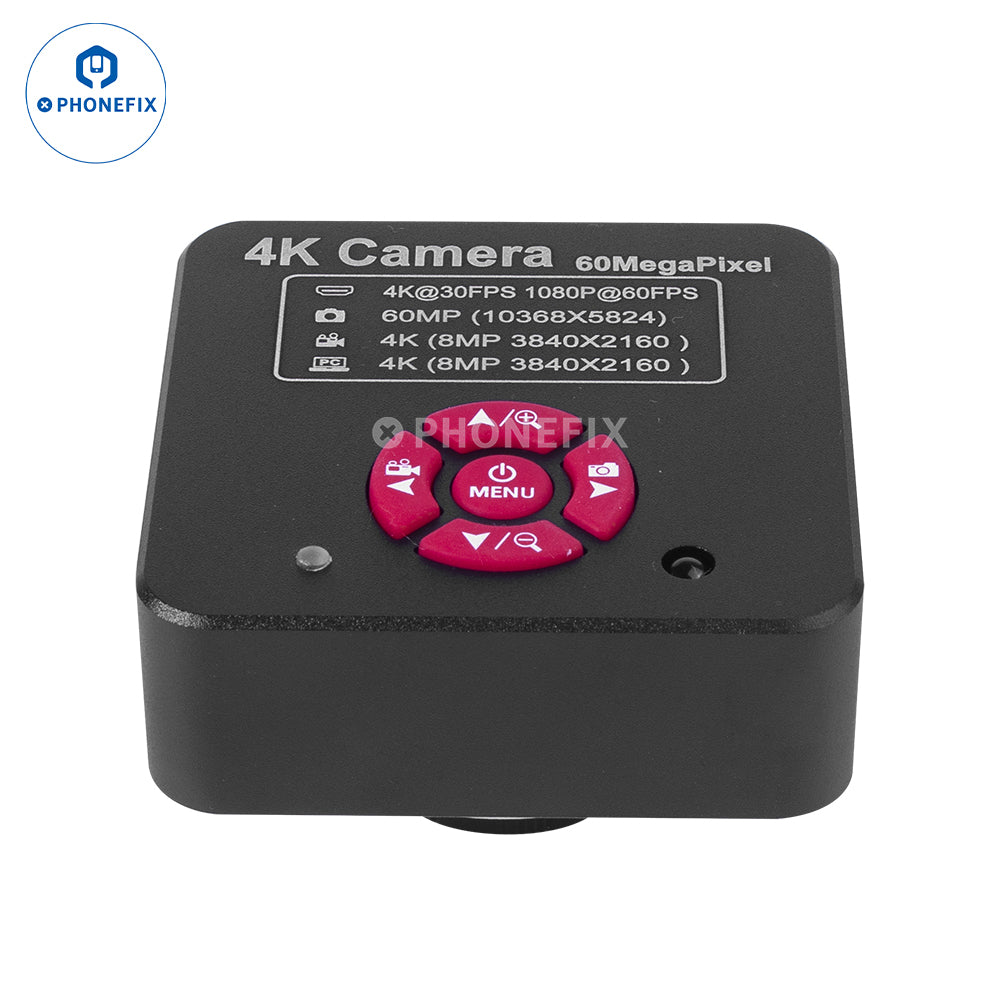

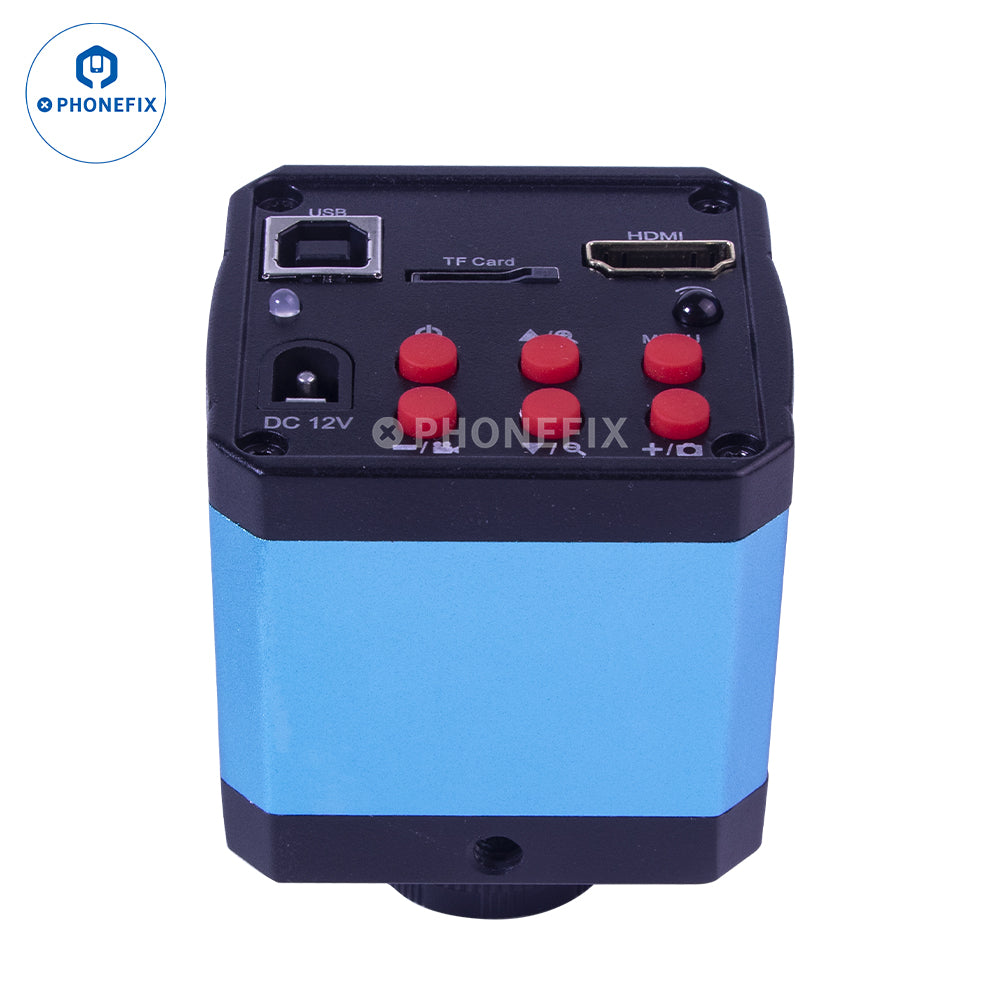

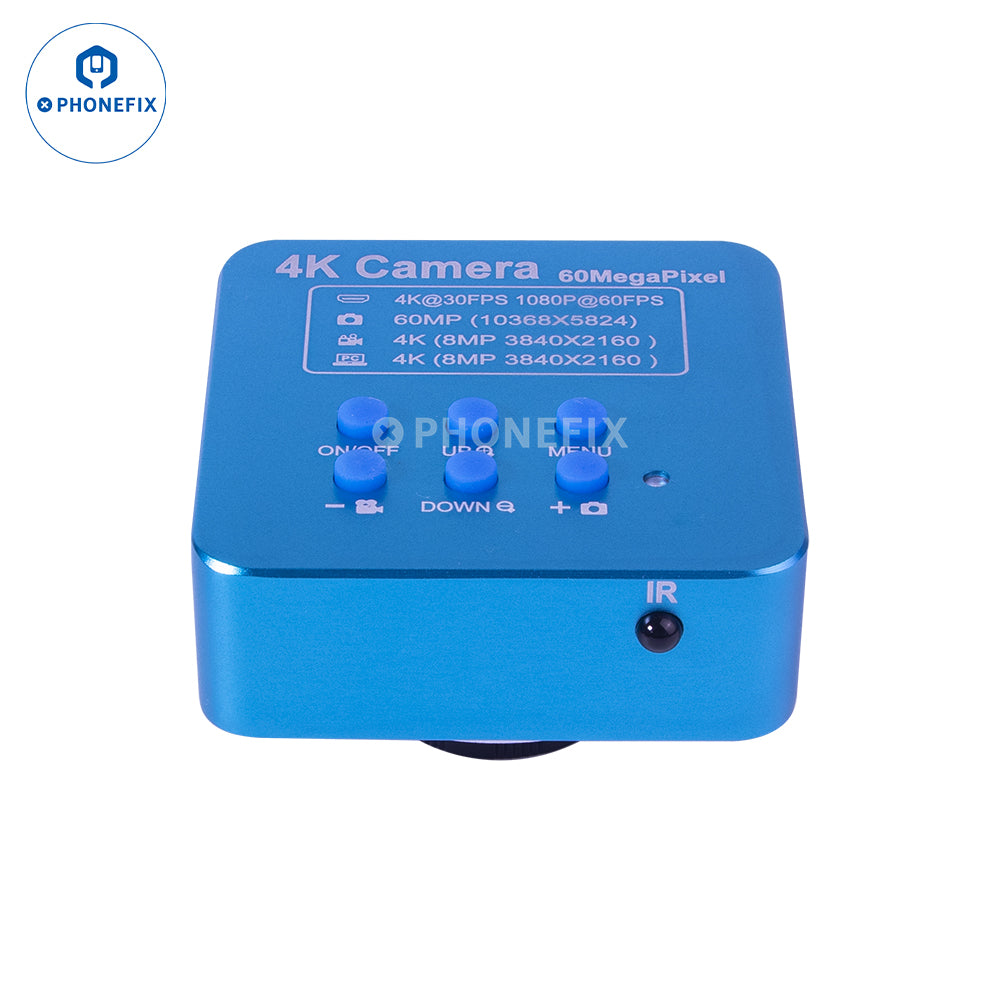

4K-A1, 4K-A2, 4K-A3, 4K-A4 Camera Parameter:
Interfaces: HDMI + USB + TF Card.
Dimensions (LWH): Model 66: 66*66*33mm.
Sensor Size: 1/2.7" Inch.
Power supply mode: 12V/USB.
HDMI output of display resolution: 4K@30FPS, 1080p@60FPS.
USB-PC output of display resolution: 4K@30FPS, 1080p@30FPS.
Photo: 60MP(10368*5888).
Udisk video resolution: 4K@30FPS, 1080p@30FPS.
OSD language: 11 Languages.
Cross line: Supports 32 horizontal / vertical lines, adjustable color / line width.
Lens: CS.
Working current: 190mA.
Pixel array: 4K(3840*2160).
Photo: 60MP（10368*5888).
Scanning mode: Progressive scan.
Shutter mode: Electronic shutter.
Dynamic range: 69dB.
S/N radio: 40dB.
AWB mode: One-time White Balance / Manual / Auto.
Support: HDR, B/W, negative, mirror flip, freeze, manual set, bright, contrast, sharp, saturation.

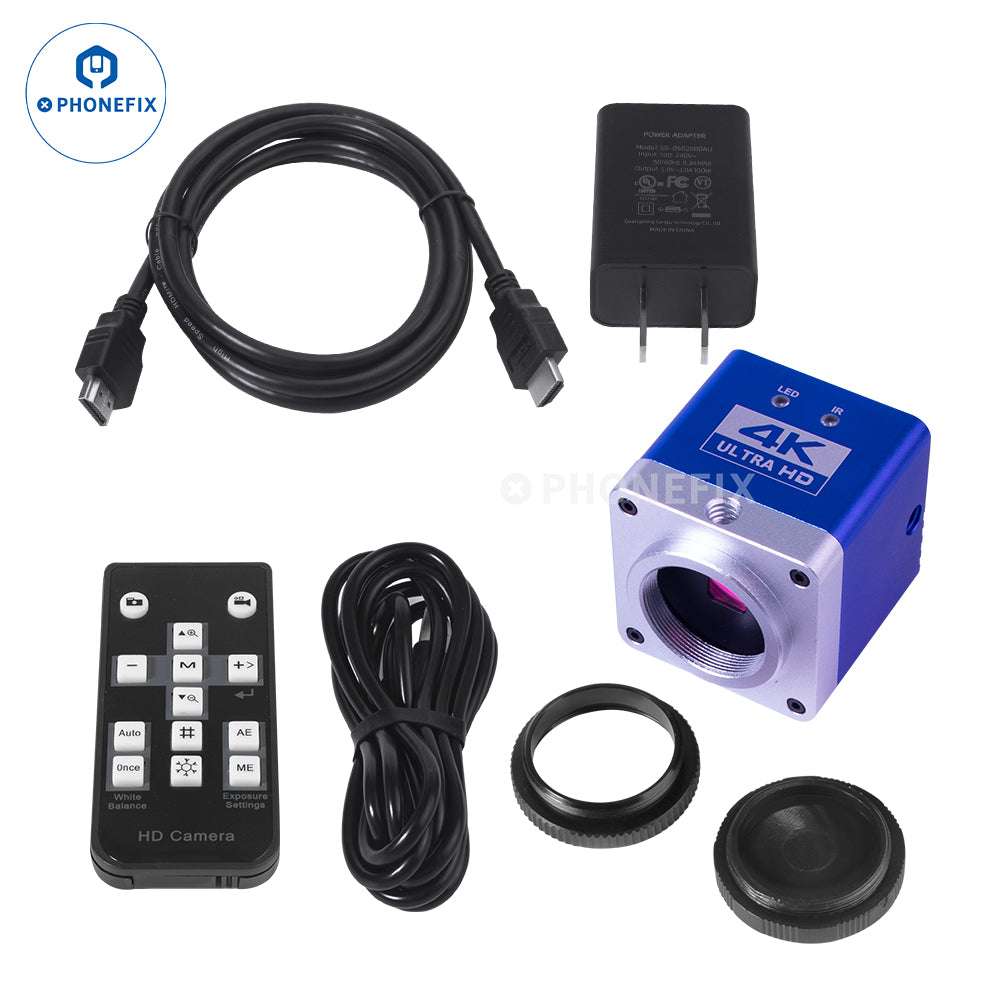

4K-C1 Parameter:
Interfaces: HDMI + Type-C + TF Card.
Dimensions (LWH): Model 66: 42*42*46mm.
Sensor Size: 1/2.7" Inch.
Power supply mode：12V/USB.
HDMI output of display resolution: 4K@30FPS, 1080p@60FPS.
USB-PC output of display resolution: 4K@30FPS, 1080p@30FPS.
Photo: 60MP(10368*5888).
Udisk video resolution: 4K @30FPS, 1080p@30FPS.
OSD language: 11 Languages.
Cross line: Supports 32 horizontal / vertical lines, adjustable color / line width.
Lens: CS.
working current: 190mA.
Pixel array: 4K(3840*2160).
Photo: 60MP(10368*5888).
Scanning mode: Progressive scan.
Shutter mode: Electronic shutter.
Dynamic range: 69dB.
S/N radio: 40dB.
AWB mode: One-time White Balance / Manual / Auto.
Support: HDR, B/W, negative, mirror flip, freeze, manual set, bright, contrast, sharp,saturation.

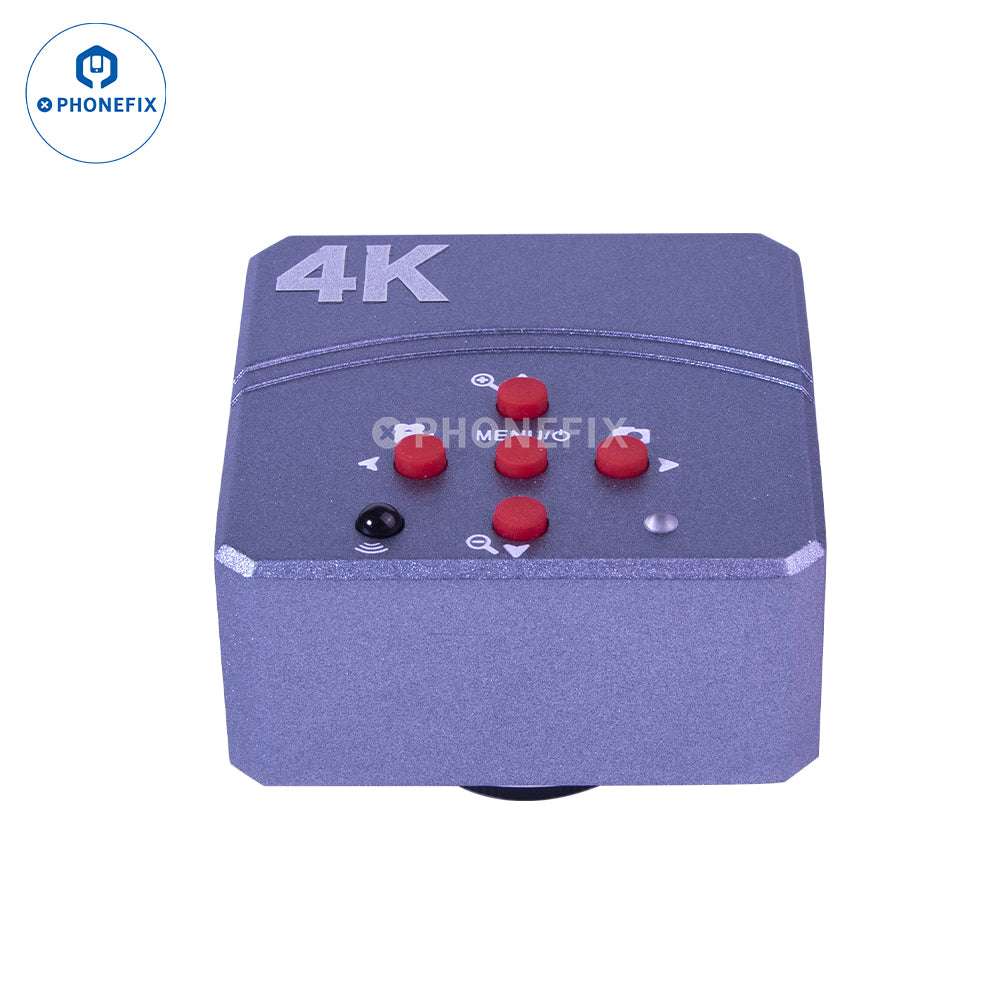

4k-U1 Parameter:
Interfaces: HDMI + USB Type-C + USB Drive.
Dimensions (LWH): Model 66: 66*66*40mm.
Sensor Size: 1/2" Inch.
Power supply mode: 12V/USB.
HDMI output of display resolution: 4K@30FPS, 1080p@60FPS.
USB-PC output of display resolution: 4K@30FPS, 1080p@30FPS.
Photo: 60MP(10368*5888).
Udisk video resolution: 4K @30FPS, 1080p@30FPS.
OSD language: 11 Languages.
"Cross line": Supports 32 horizontal / vertical lines, adjustable color / line width.
Lens: CS.
Working current: 190mA.
Pixel array: 4K(3840*2160).
Photo: 60MP(10368*5888).
Scanning mode: Progressive scan.
Shutter mode: Electronic shutter.
Dynamic range: 69dB.
S/N radio: 40dB.
AWB mode: One-time White Balance / Manual / Auto.
Support: HDR, B/W, negative, mirror flip, freeze, manual set, bright, contrast, sharp, saturation.
