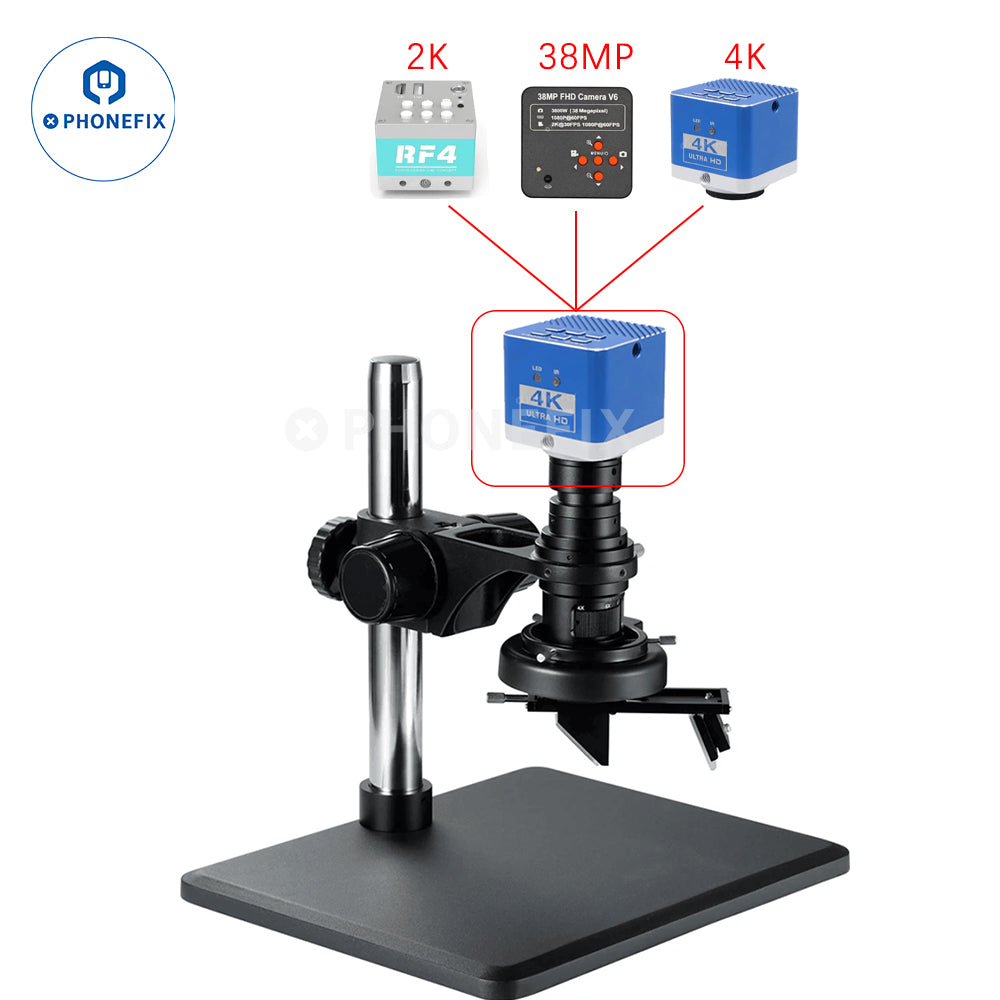

0.7X-5X C-Mount 3D large field zoom lens used with HDMI VGA 2K 4K Industrial Electronic Microscope camera for PCB board SMD BGA chip soldering repair, object observation research, etc.

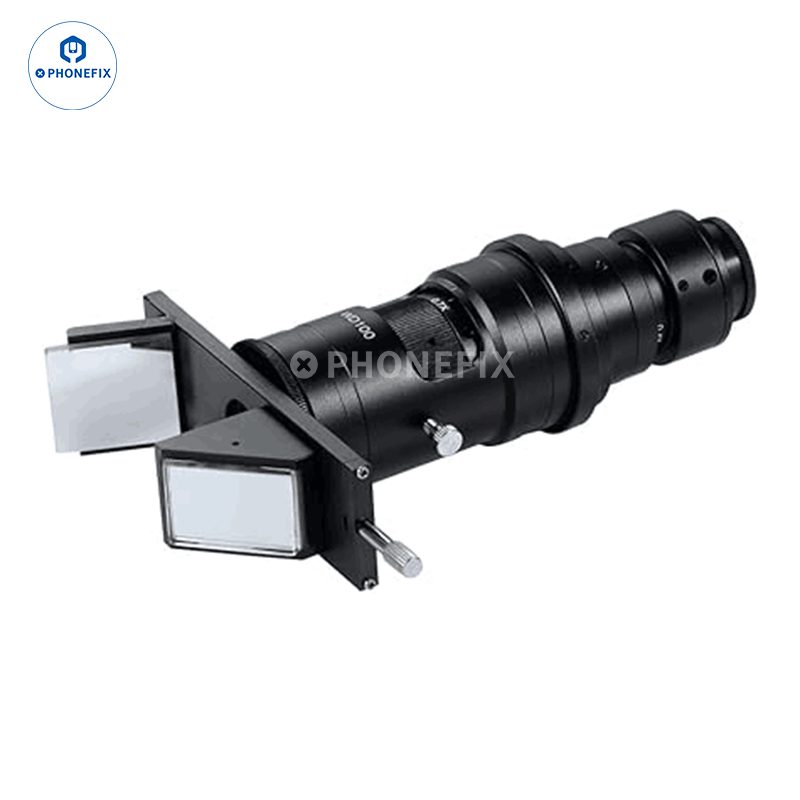

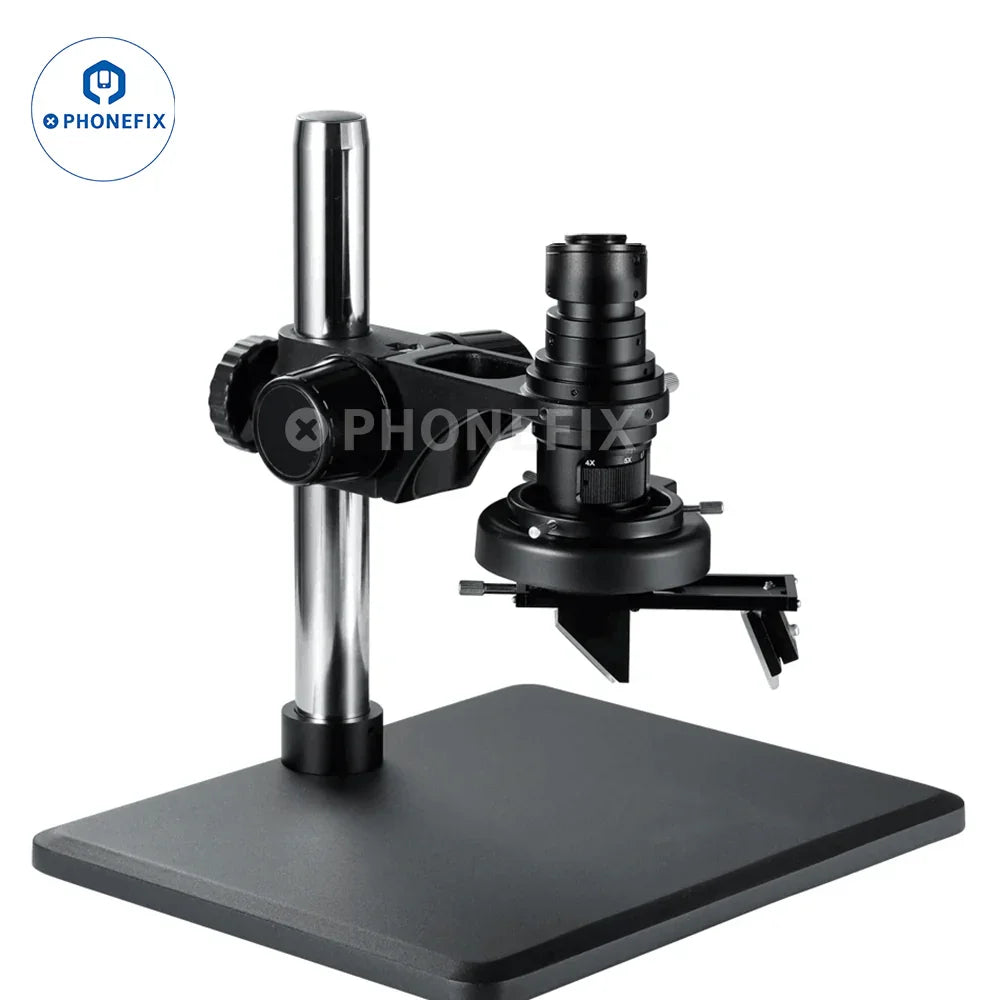

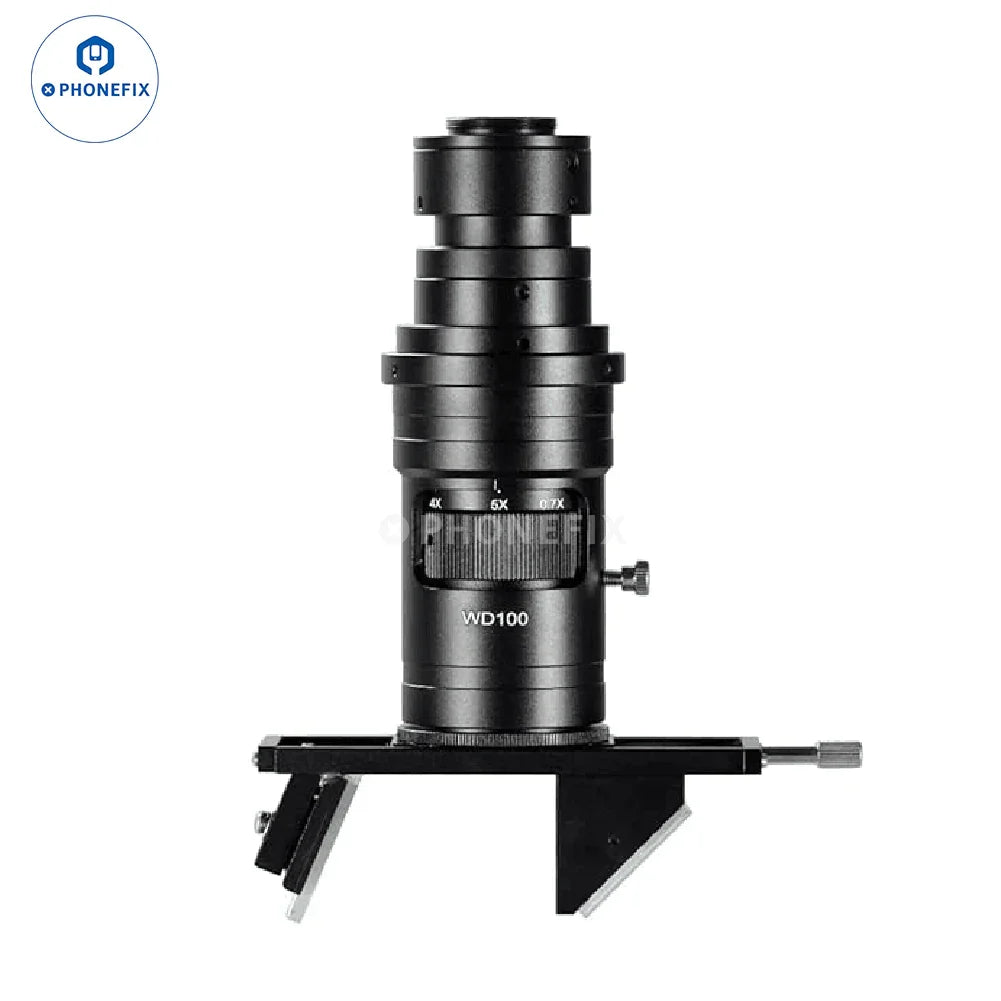

3D 0.7X-5X C-Mount Lens Features: 1. Working distance: 100mm. 2. Eyepiece CTV: 0.4X. 3. Interface: Standard C interface. 4. 3D stereo rotating viewer. 5. 3D manual free switching. 6. The working distance remains the same when switching between 2D and 3D, no need to adjust the focus again. 7. 360° rotation, 45° objective lens angle.

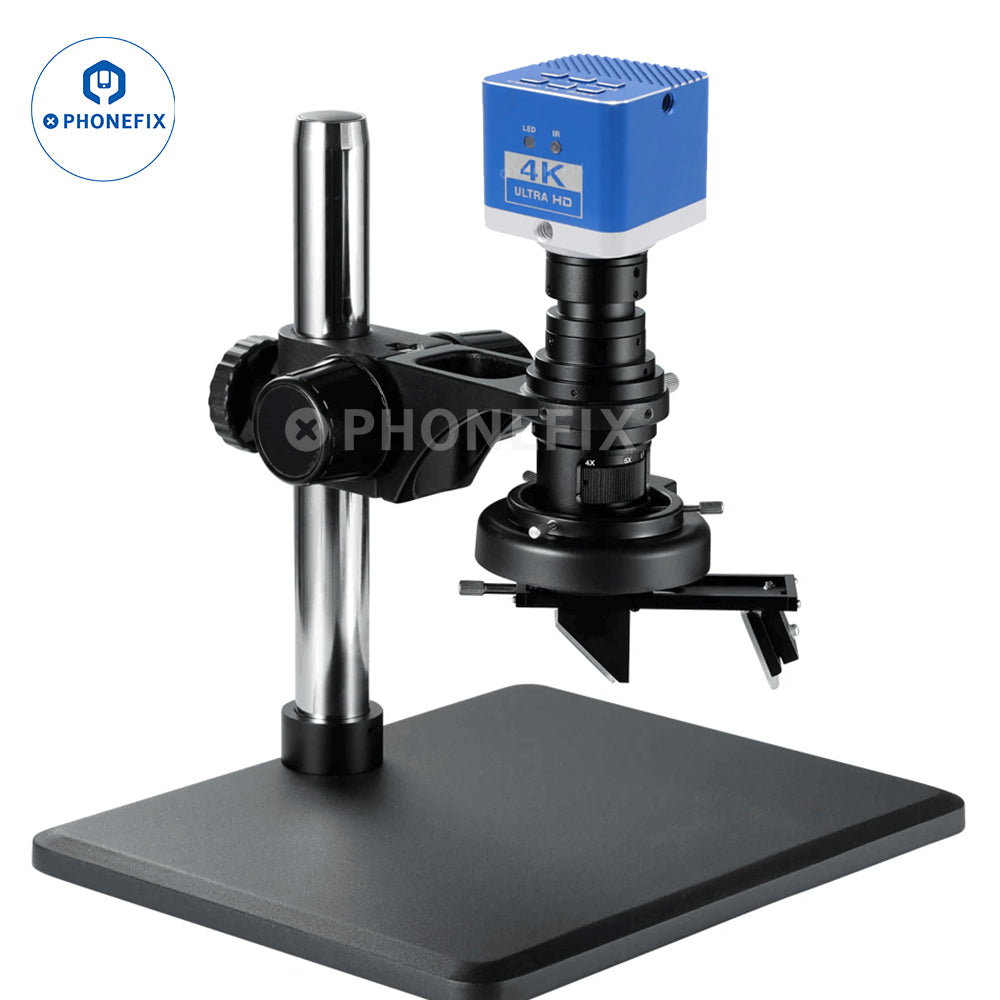

IMX334 4K HD Camera: Sensor: IMX334. Sensor size: 1/1.8. Pixel size: 2.0*2.0μm. Output resolution: 3840*2160. Frame rate: 3840*2160@30FPS; 1920*1080@120FPS&60FPS. Image storage method: TF card + UVC. Video: 3840*2160@30FPS. Exposure time: 0-33MS. Exposure: Automatic and Manual. White Balance: Auto and Manual. Parameter settings: color, mirror, grid line, scale, etc. System software: Youngwin OS. PC software: S-EYE2.0. Working temperature: 0-60℃. Storage temperature: -20-85℃. Appearance size: 45.5*42*42mm. Single machine weight: 0.11kg. Power supply: DC 5-12V.

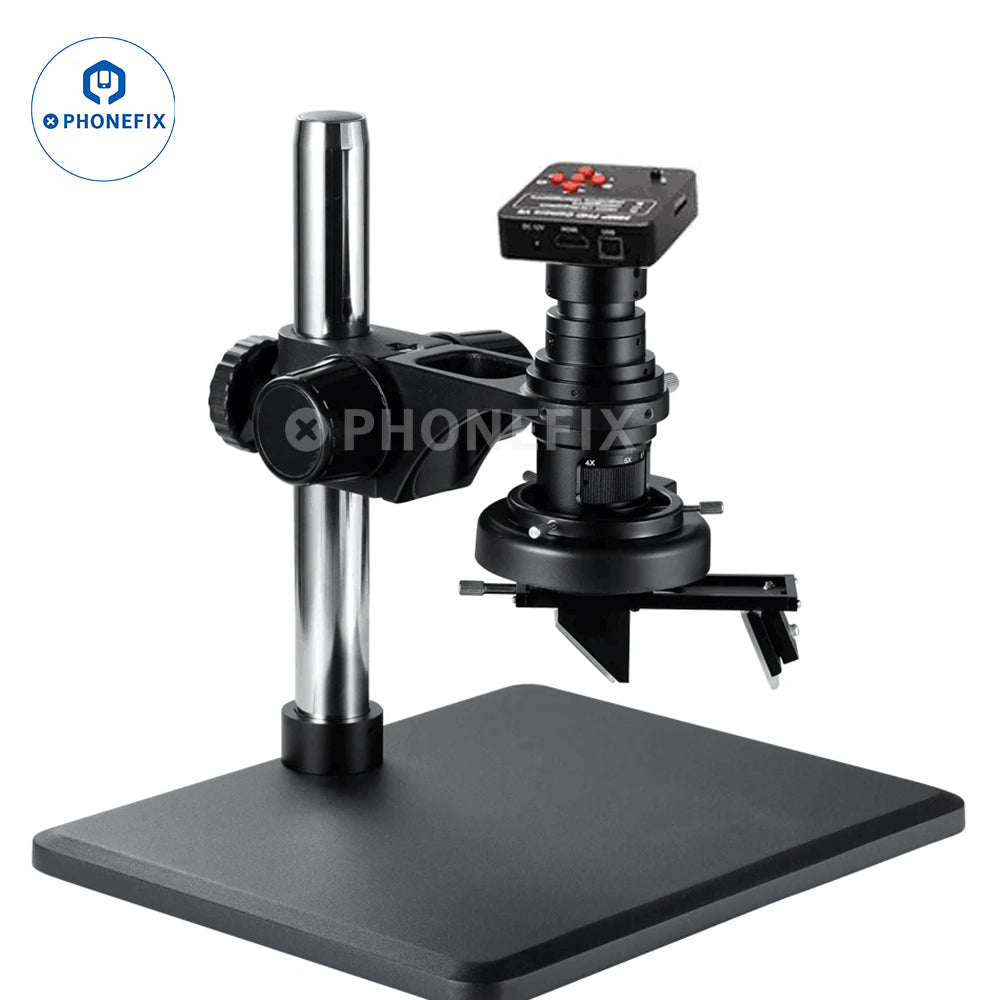

38MP Camera Specification: Model: Camera with HDMI USB 2.0 two outport Image resolution: 4640*3480 pixels(for TF card); 1920*1080 pixels(for PC USB) Video recorder: 1920*1080 pixels @30FPS (for HDMI USB) White Balance/Light: Auto Negative and Freeze: Support OSD: English/Chinese/French/Spanish/Portuguese Line: different color, 4 horizontal line, 4 vertical line,any positions Pixel size: 1.43x1.43um Frame rate: 60fps Definition: FULL HD, Video format: AVI Encode: H.264 (High Profile) Brightness control: Auto/manual Film and record: Support Cross cursor: Support multi-color, size adjustable TF card interface: Max 32G Lens: C, custom provide CS USB interface: Standard USB2.0 interface (Type A)

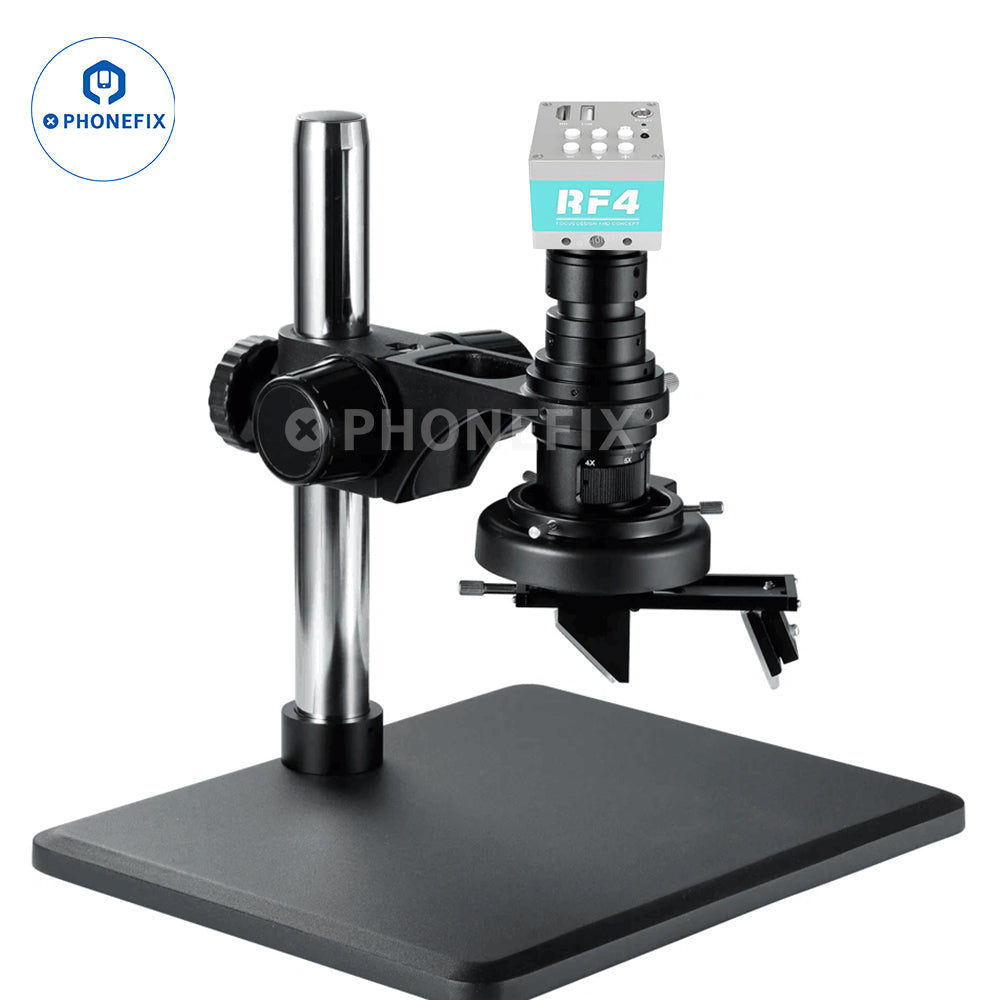

RF4 RF-2KC2 2K Full HD Microscope Camera Parameters: Imaging element: 2K 1/2.8 inch CMOS. Effective pixel: 1920X1080. Frame rate: 60 frames/SEC, resolution 900 lines. HD: Monitor HD cable interface USB: USB drive port. Output: USB. HD: Monitor HD cable interface. USB: USB drive port. Power input: +5V to +12V DC. +5V Maximum working current 400mA, +12V maximum working current 200mA. Using the CS lens interface can choose any CS lens interface. It has the function of taking pictures and recording videos.
144 LED Light: Input voltage: AC90V-240V. Output voltage: DC12V. Maximum output power: 5W. Base material: plastic transparent cover. Maximum inner diameter of lamp holder: 61MM. Maximum outer diameter of lamp head: 94MM. LED type: F3. Number of LEDs: 144Pcs.
