38MP HDMI USB Digital Industry Microscope Video Camera with TF Card Video Recorder foe PCB Soldering and Component Inspection
Function: It is used extensively world medical research and health care, biology and botany research, and agriculture, as well as in electronic component manufacturing. Specially suited for LED, electronic PCB / Phone Logic Board inspection, pressing plating and electronic component inspection.

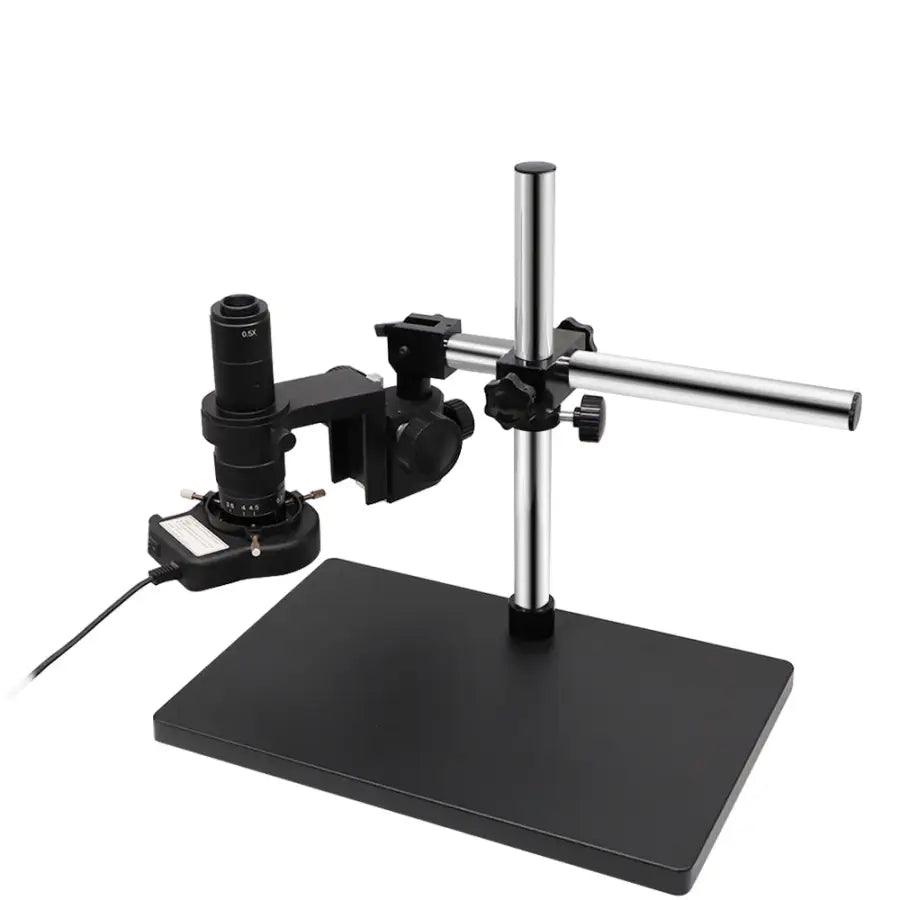

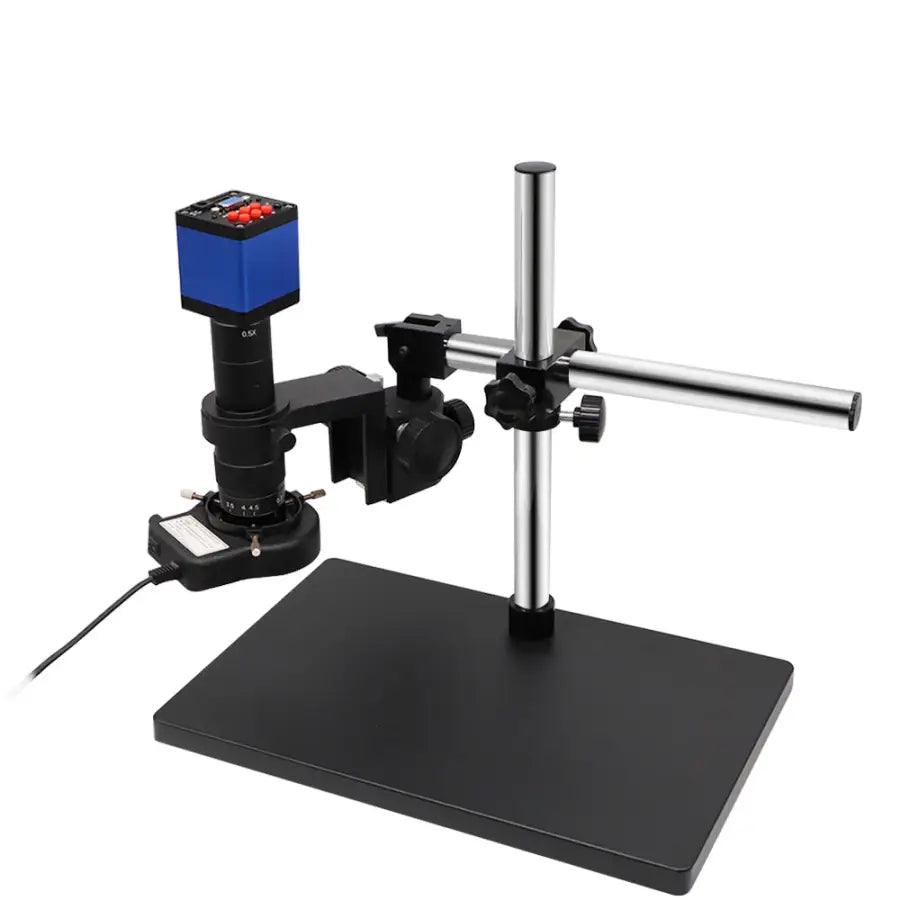

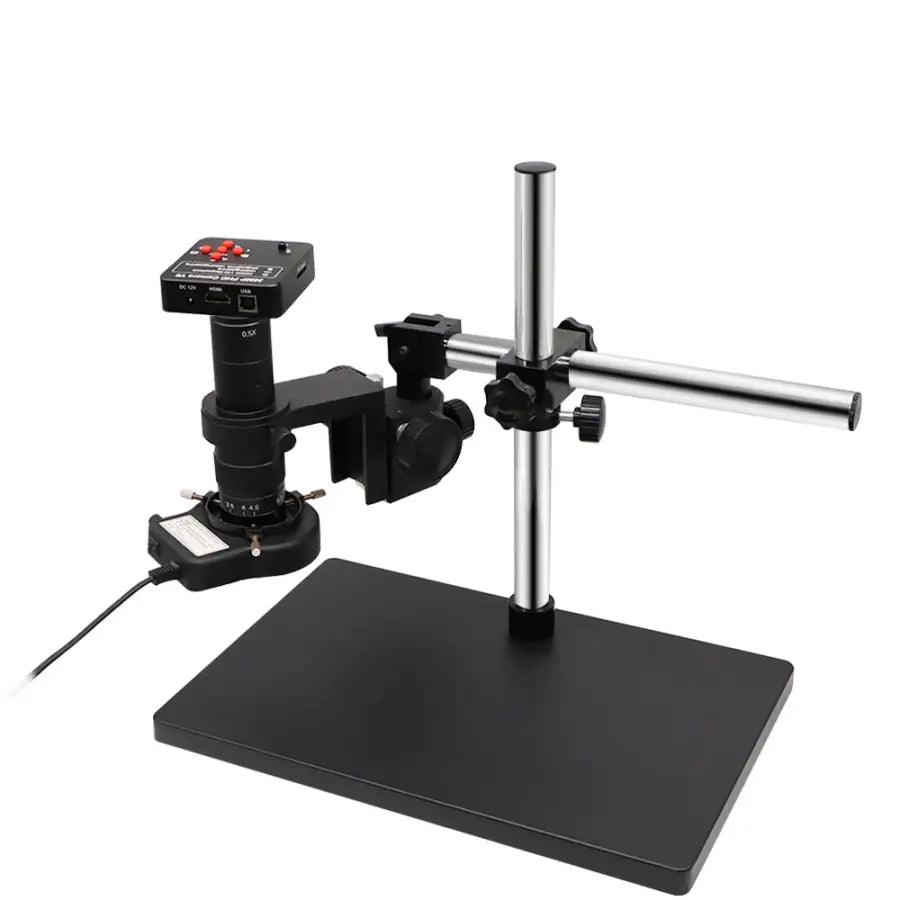

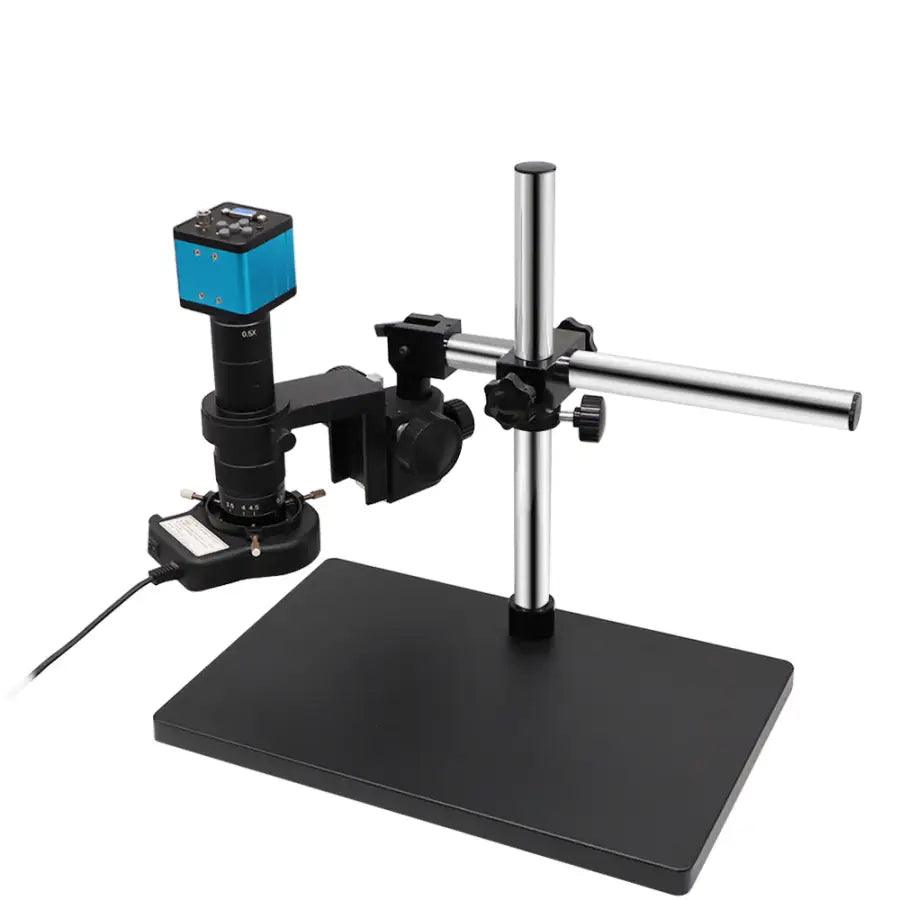

HDMI USB Digital Industry Microscope Video Camera + 180X C mount Lens (0.5X) + 56 LED Ring Light + Stand Holder (360 degrees of free adjustment and rotation)

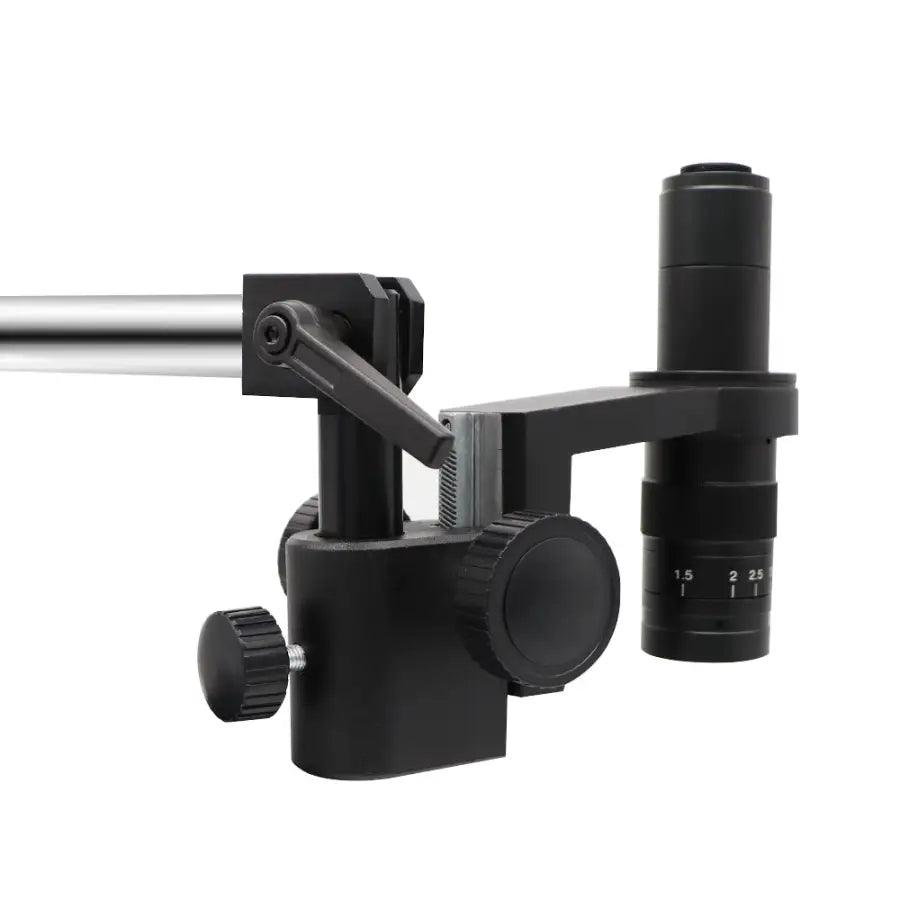

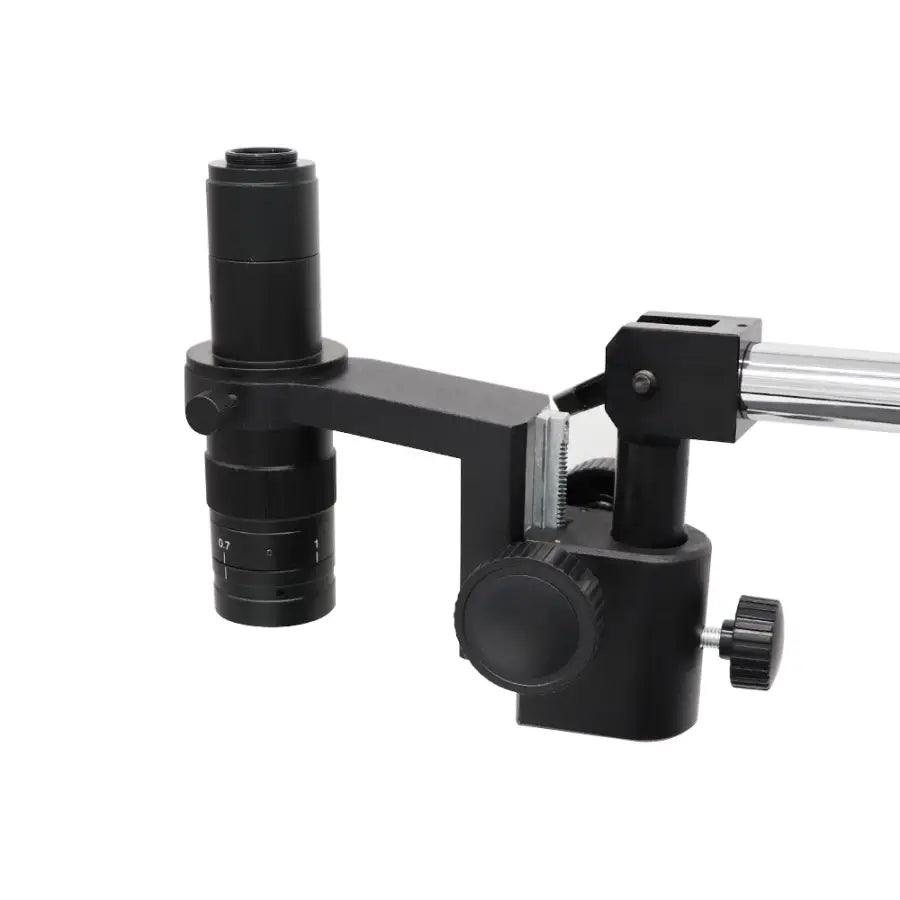

Base holder: Upper and lower, left and right side can be adjusted and moved, 360 degrees of free adjustment and rotation. Universal direction - any direction can be adjusted
HDMI Camera Adapter :
- Option 1: 38MP 3800W 60FPS, Panasonic sensor 1/2.3 inch
- Option 2: 16MP 1400W 60FPS, 1/2.3 inch
- Option 3: 14MP 1400W 60FPS, 1/2.3 inch
- Option 4: HDMI + VGA Input, 2MP 200W 1080P, 30FPS, 1/3 inch
- Option 5: HDMI 2MP 200W 1080P, 30FPS, 1/3 inch
- Option 6: VGA Input 2.0MP 200W 1080P, 30FPS, 1/3 inch
Features :
- High Quality, High Resolution, Clear Images
- 38.0MP/16MP/14MP/2MP 1/2.3 / 1/3 Inch big size Panasonic CMOS Image Sensor
- TF Card Video Recorder
- Photo Model / Video Model

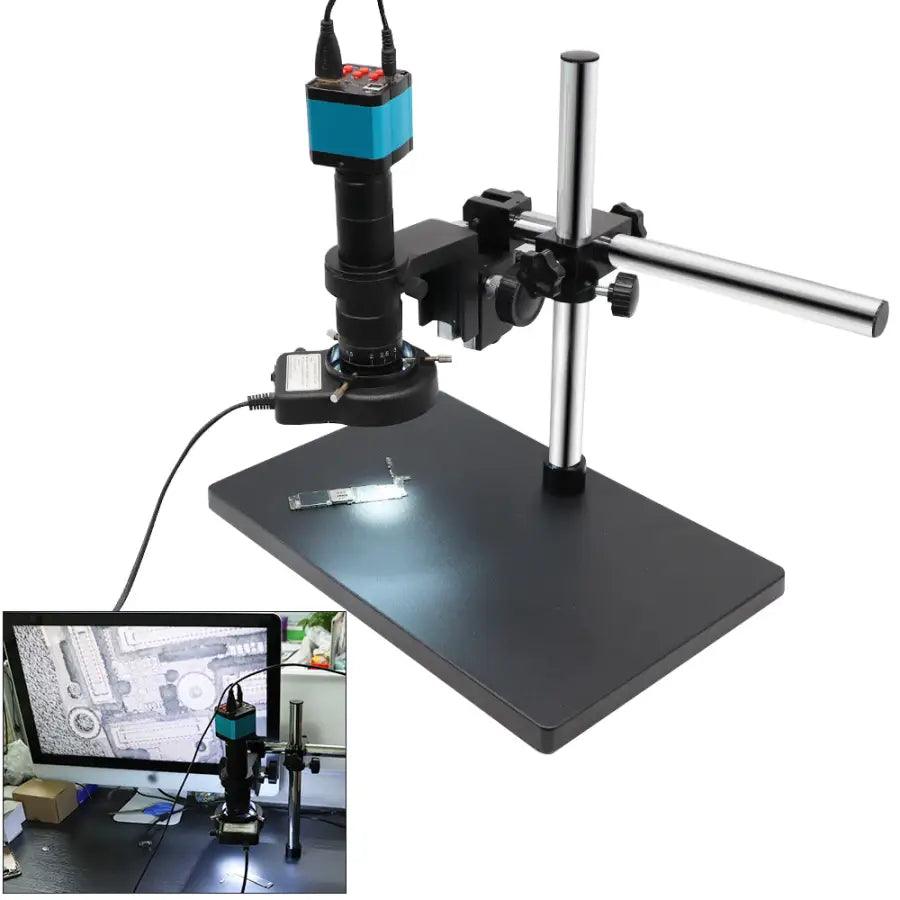

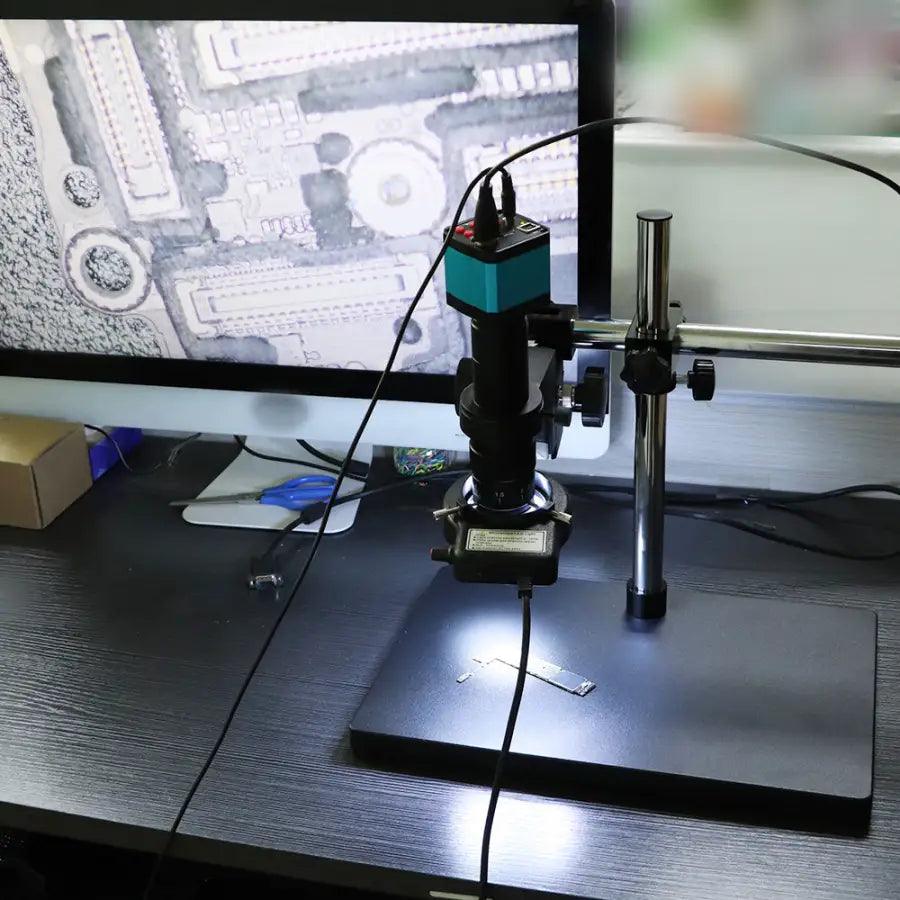

- Industry CMOS Camera. It can Show the live image directly on any HDMI monitor , Projector or TV.
- It builds in digital crosshairs and color control, add line in the pictures, freeze, Mirror, Rotate, Negative
- Supply USB2.0, HDMI HD video,Two output
Specification :
- Basic function: Brightness, contrast, saturation, white balance,
- black and white switching, date adjustment
- Image adjustment: Exposure, Flicker restrain, Acutance,
- Gamma, Cb/ Crgain adjustment
- Camera function: Digital zoom, Horizontal/
- Vertical mirror, image freeze
- Storage: Image capture,video, image preview, TF card formatting
- Color, line, displacement, and hidden
- Crosshair: Can adjust color, line size, hide or display
- White balance: Auto/manual
- TF card interface: Max 64G-128G
- HDMI interface: Standard HDMI output / VGA Output
- HDMI Image resolution: 8168*6128 4:3(50MP) 8168*4592 16:9(37MP) (for TF Card),
- USB Image resolution: 1920 *1080 (for PC USB)
- Video resolution: 1920 *1080 @ 60FPS for HDMI, 1920 *1080 @ 30FPS 1280*720@ 30FPS 640*480 @ 30FPS
320*240 @ 30FPS for USB / VGA
- Video format: MP4
- Image format: JPG
- Color: Color/black and white
- Freeze: Support/NO
- Exposure: Auto/manual
- Camera Interface: C-MOUNT
- Remote operation: Yes/NO
- Language Support: Chinese English French Spanish Portuguese German Italian Simplified Chinese Traditional Chinese Russian Japanese

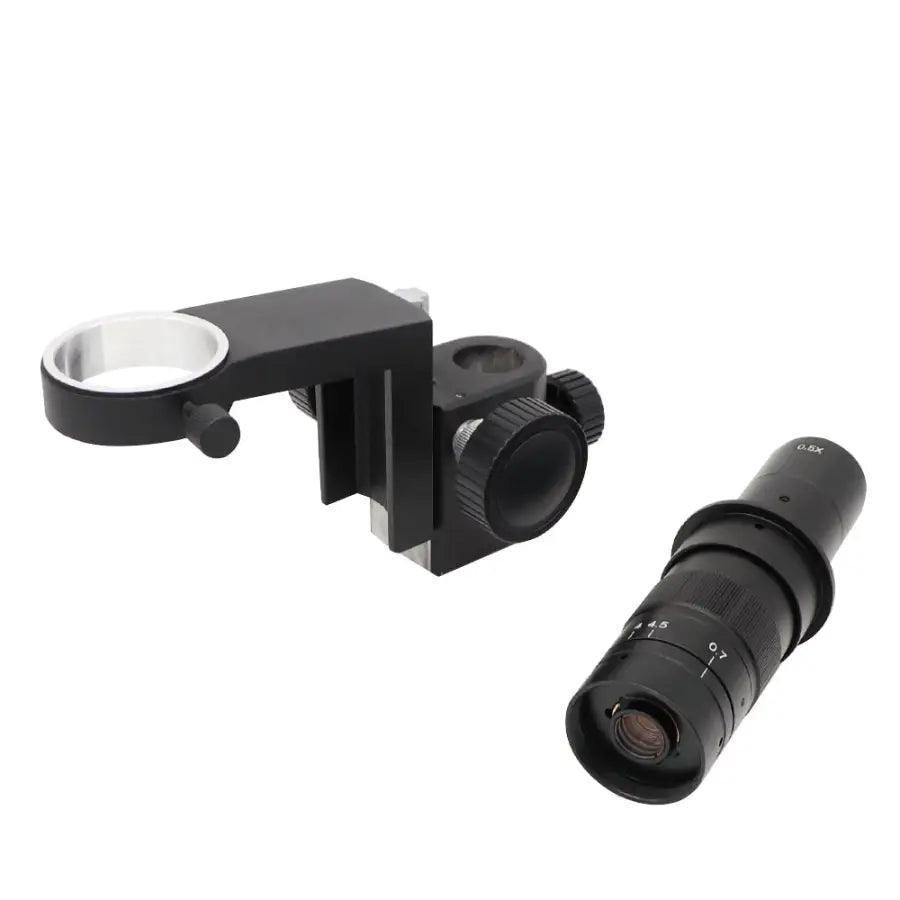

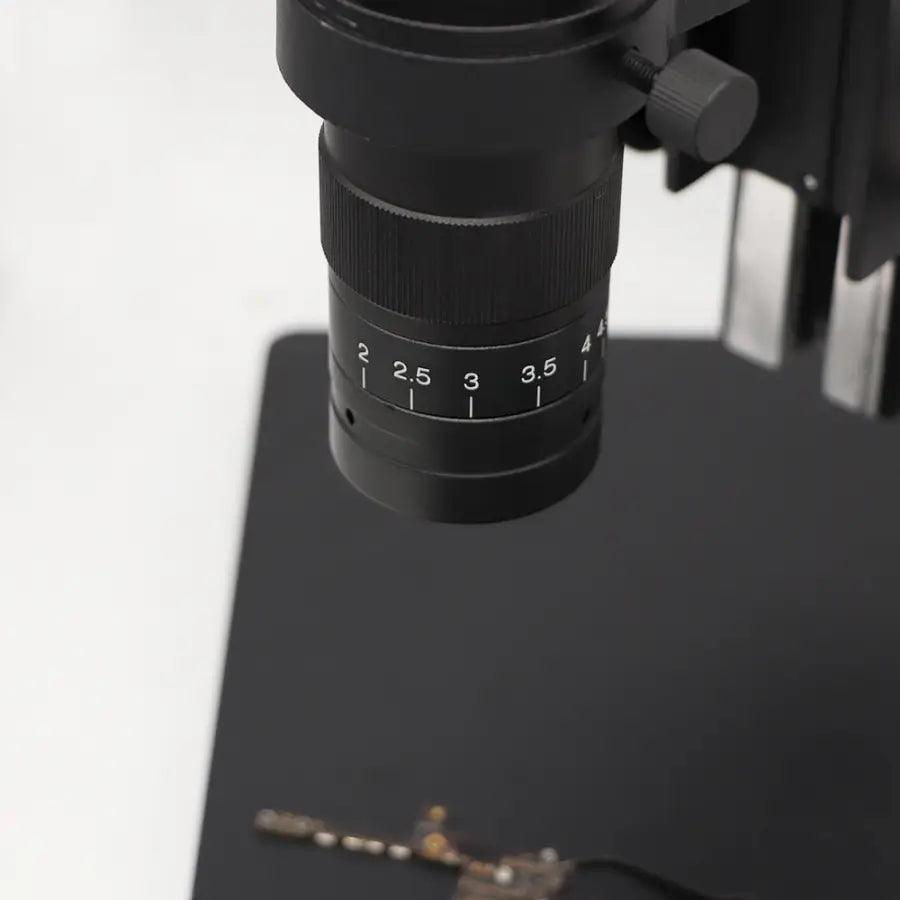

C-MOUNT Lens (0.5X Module) :
- Working distance: 50~155mm
- Zoom c-mount Lens
- Magnification Power by 8X~180X
- Size: 115mm(L) * 40mm (DIA)

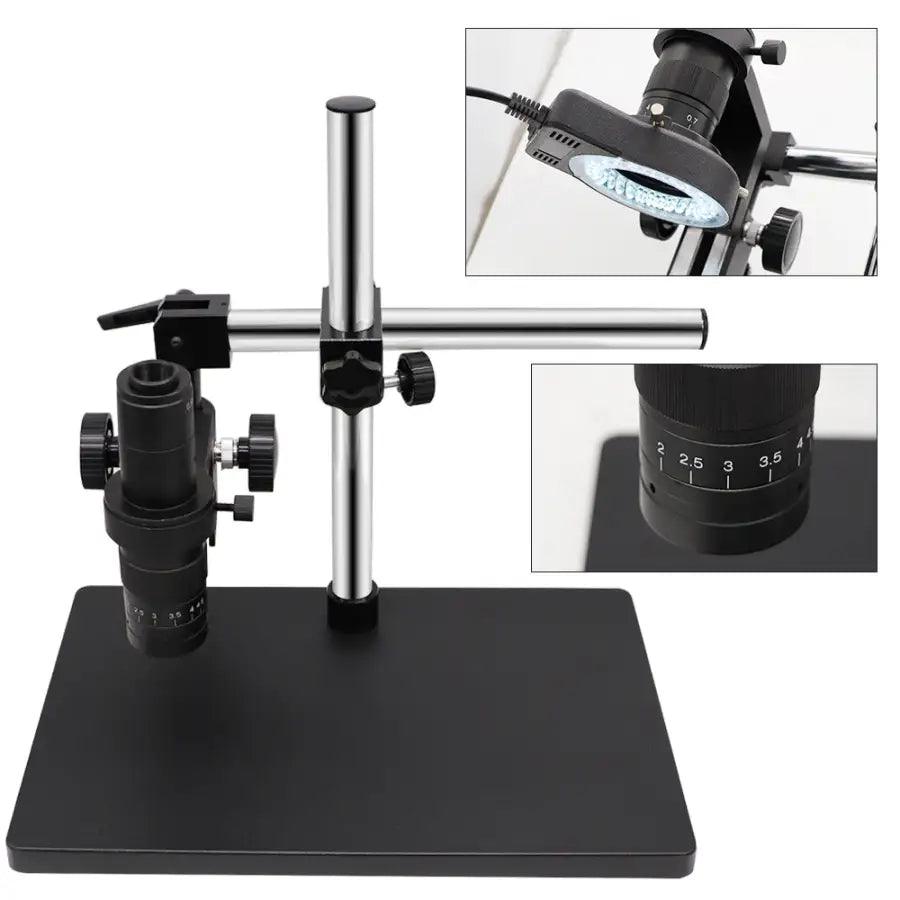

- 56 LED Adjustable Compact Microscope Ring Light:
- Provides intense and focused shadow-free illumination
- 56 Lighting direction changeable
- Variable intensity control
- Intense and focused shadow-free illumination
- 100,000 hours of life
- Power input: 100-240V, 50-60HZ, auto switching
- Inside diameter of the ring light: 1.0" (27mm)
- Overall outside diameter: 1.77" (45mm)
