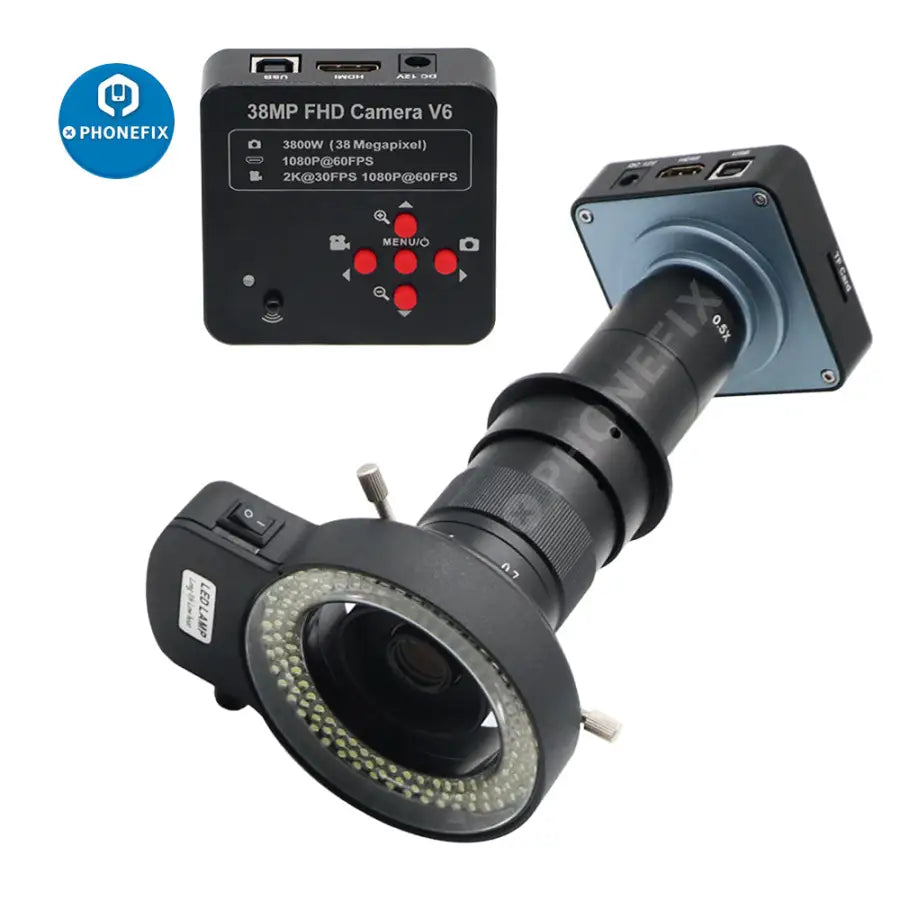

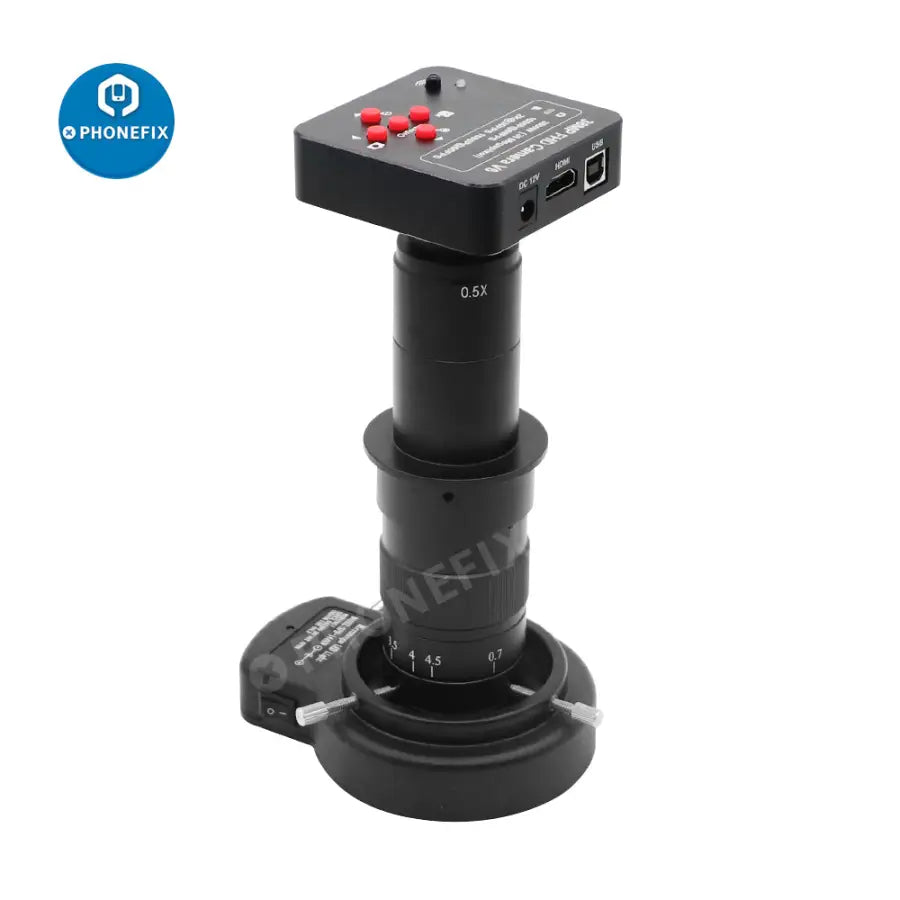

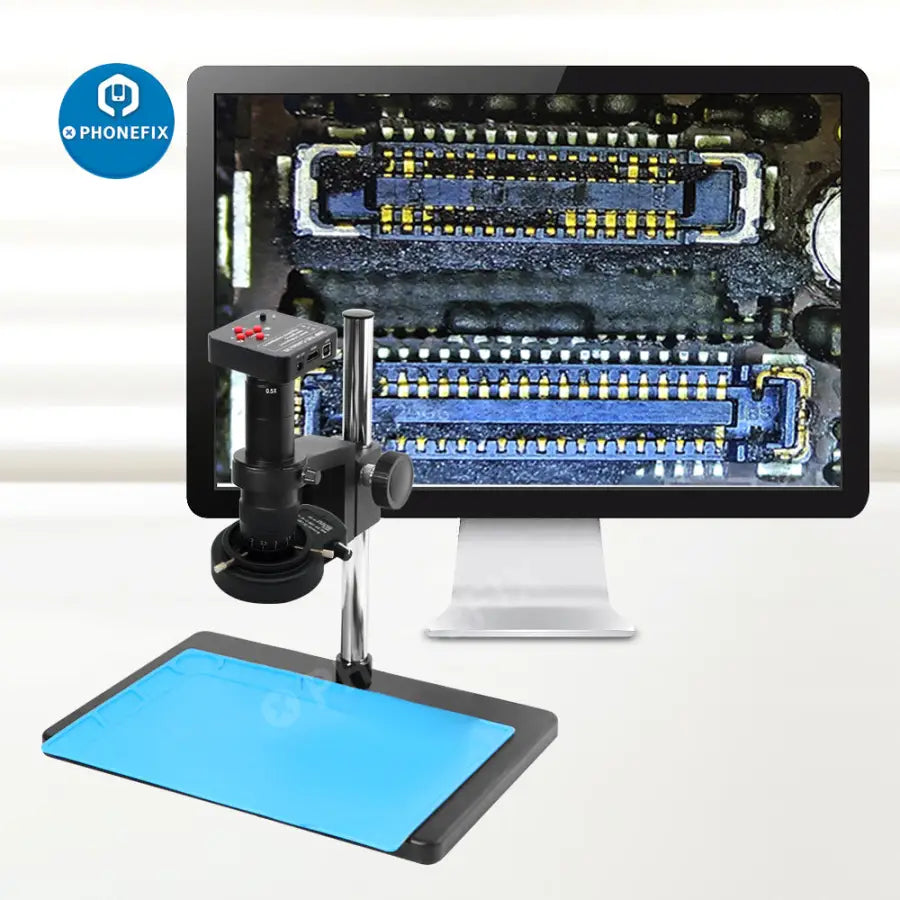

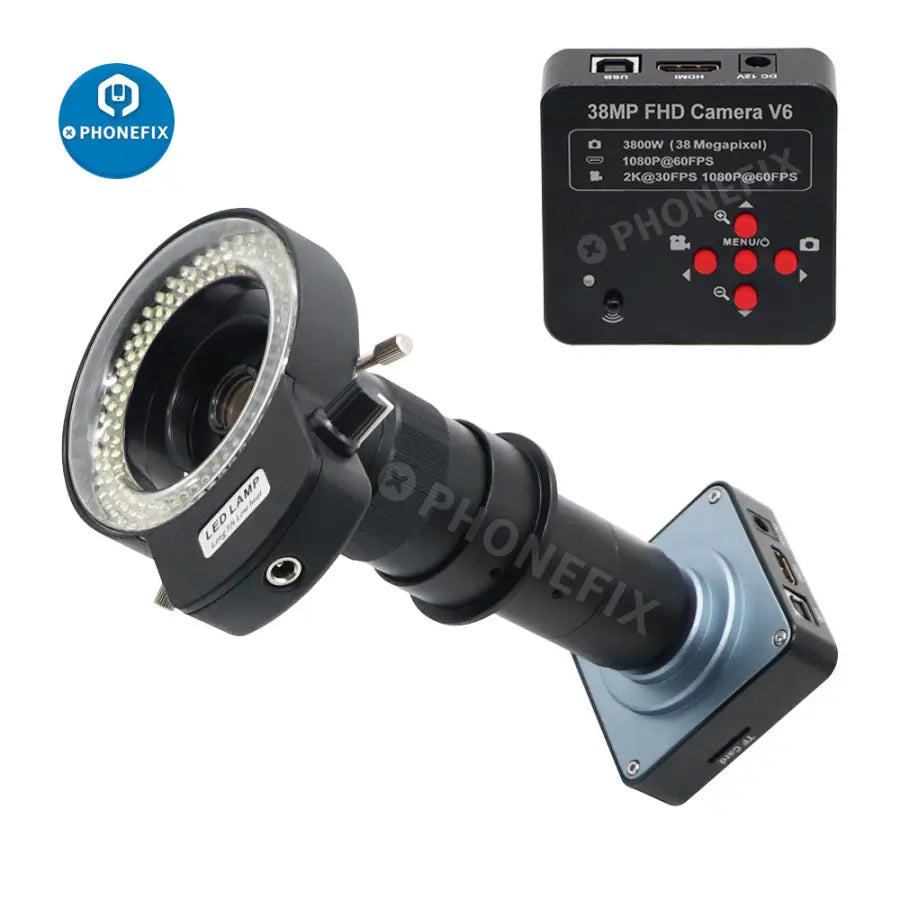

38MP Full HD 2K 1080P 60FPS Industrial Digital Camera, HDMI USB Simultaneous Output Microscope Camera, 180X C-Mount Lens, 144 LED Ring Light, for Phone Reparing PCB Soldering.

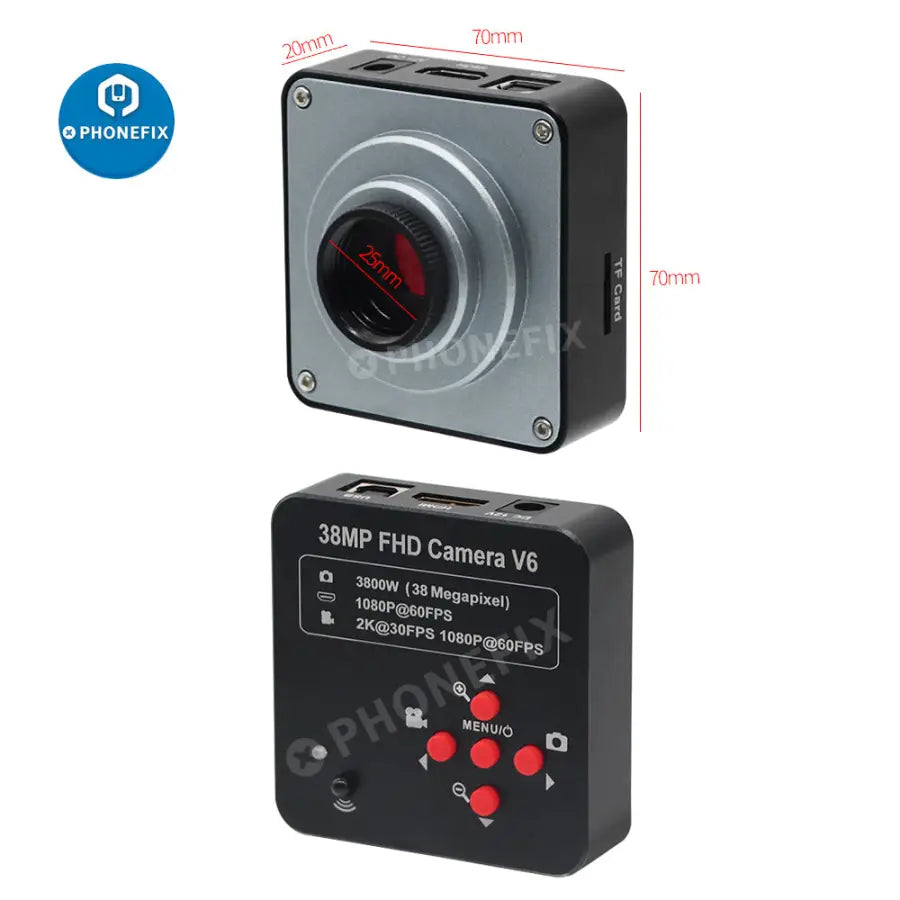

38MP HDMI USB Camera Features: Output interface: HDMI, USB, TF Card Photo output: 38MP (7120*5344) Video output: 2K@30 frames, 1080p@60 frames Image sensor: Panasonic original 38 million pixel CMOS sensor Sensitive size: 1/2.3 inches. A larger field of view than the usual 1/3 Pixel size: 1.335μm × 1.335μm Frame rate: 60fps HDMI output: progressive 1920*1080 60 frames. Simultaneous output with USB HDMI output ratio: support 4:3, 16:9, 16:10 screen, to ensure that the image is not distorted. USB2.0 output (free drive): 1920*1080@30 1280*720@30 640*480@30. Simultaneous output with HDMI
Camera Specification: TF card storage capacity: maximum 64GB White balance: One-click white balance/automatic/manual, R, G, B can be individually adjusted Exposure: manual/automatic. Adjustable exposure value Crosshairs: 8 lines. Adjustable color, thickness and position Cross tick: 2 lines. Dotted cross: 2 lines. Adjustable color, thickness and position Sharpness, contrast, saturation, support, adjustable, black and white, negative film, support Mirror: horizontal and vertical mirror Language: Chinese/English Digital zoom: support Remote control: supported. The remote control takes pictures and videos without shaking. Input voltage: DC 12V (support 5-19V), 55-21 large mouth Lens interface: C/CS port Product size: 74*74*35mm package includes: camera, power adapter, remote control, paper manual, HDMI cable, 16G TF memory card.

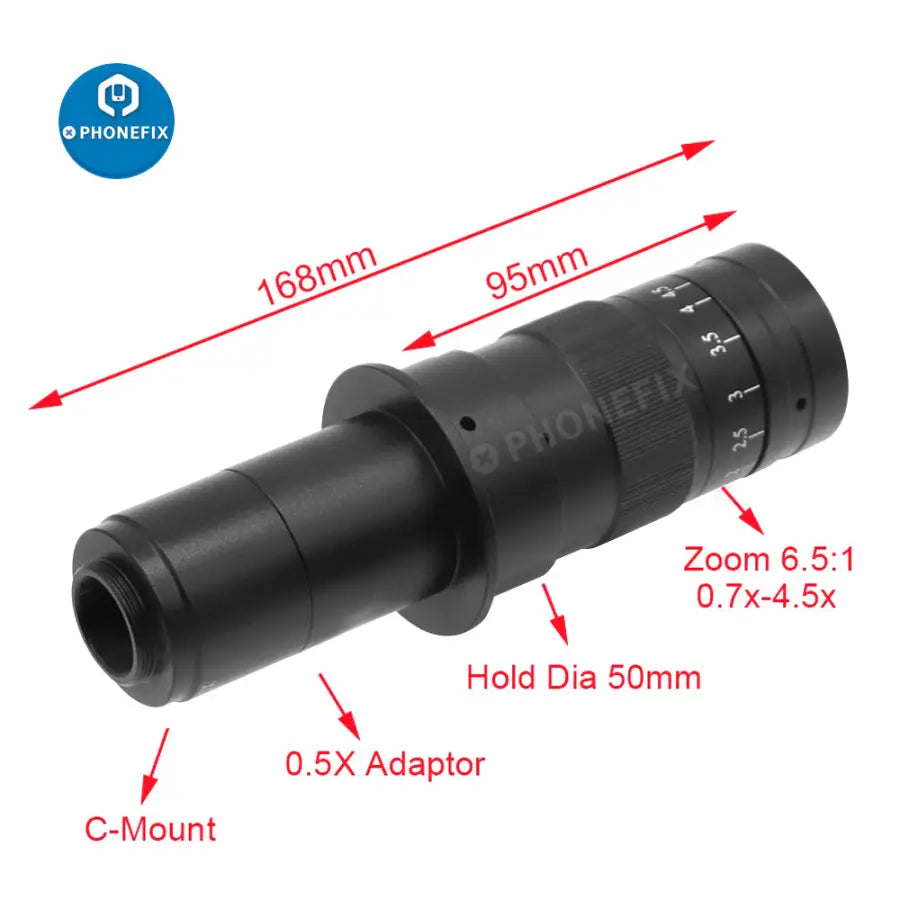

180X C-Mount Objective Lens: Working distance: 95-150mm 0.5X C-mount adapter: zoom ratios: 6.5:1 Objective Magnification Power by 0.7 - 4.5X(about 10 - 180X on the display) Size: 168mm(L) * 50mm(DIA) Weight: 450g

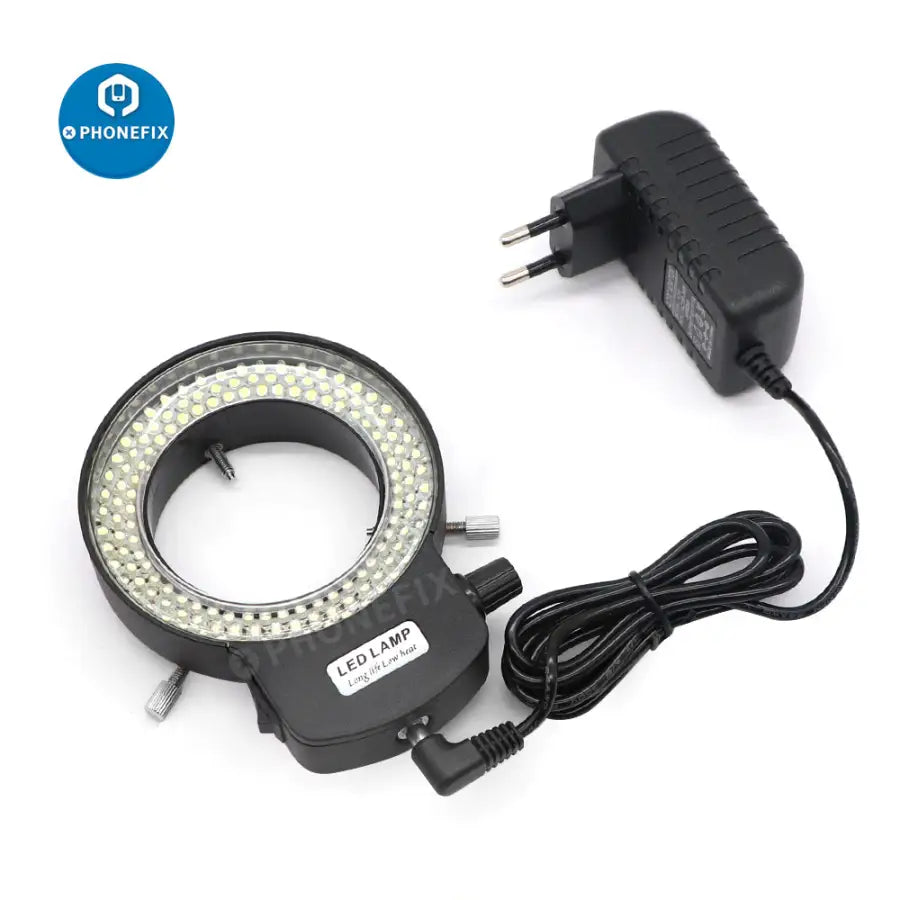

144 LED Ring Light: 144 bright white LED bulbs 100,000 hours of life Intense and focused shadow-free illumination The brightness of 0-100%Adjustable,high brightness Variable intensity control Power input: 100-240V, 50-60HZ Suit for the dia of the lens: 30mm-63mm
Package including: 1 x 38MP Microscope Camera 1 x Power supply 1 x USB line 1 x Software DISC 1 x Remote Control 1 x 180X C-Mount Objective Lens (Optional) 1 x 144 LED Ring Light (Optional)
