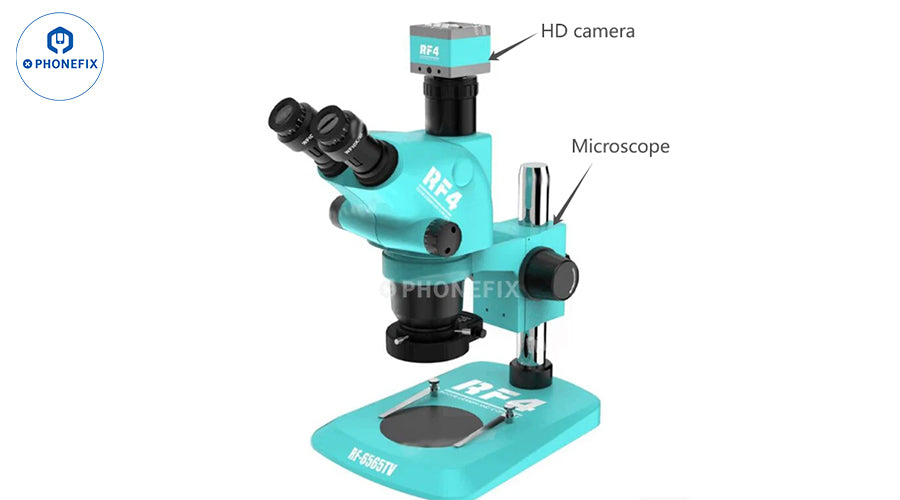

Why Does a Stereo Microscope Need a HD Camera?

Regarding the topic of why a repair microscope needs an HD camera, Phonefix has specially published this topic today to answer your questions. We will summarize it in several points.

First, What is a Phone Repair Microscope?
A cell phone repair microscope is a key tool for repairing the tiny components of your cell phone. They can magnify and inspect tiny electronic components, helping technicians perform soldering, find damaged circuits and identify faults. There are several models on the market, including handheld, digital microscopes, and microscopes with high-definition displays. Choosing the right microscope can significantly improve repair efficiency and accuracy.

Types of Microscopes Suitable for Phone Repair:
Stereo Microscopes
Provide a three-dimensional view, which is essential for inspecting and repairing small components on mobile phones.
Example: 3.5X-90X Trinocular Stereo Microscope with HDMI camera.

Digital Microscopes
Equipped with digital cameras to capture images and videos, useful for documentation and analysis.
Example: KOPPACE 3.5X-180X Trinocular Stereo Microscope with 13.3-inch display screen.

USB Microscopes
Portable and can be connected to computers via USB for easy viewing and recording. Commonly used for quick inspections and minor repairs.

Why Do They Need HD Cameras?
1. Enhanced Image Quality and Detail
An HD camera provides high-resolution images, which are essential for identifying and working on tiny components on a phone's motherboard. The clarity and detail offered by 4K Industrial Camera allow technicians to see minute details that are otherwise invisible to the naked eye or lower-resolution cameras. This precision is crucial for tasks such as soldering, where even the smallest mistake can lead to a malfunction.
2. Improved Accuracy and Efficiency
High-quality images from an HD camera improve the accuracy of repairs. Technicians can better distinguish between different components and identify issues more quickly, reducing the time spent on diagnostics and repairs. This efficiency is particularly important in a professional repair setting where time is money.

3. Documentation and Analysis
HD cameras enable technicians to capture high-resolution images and videos of their work. This documentation is valuable for several reasons: it allows for quality control, helps in training new technicians, and provides evidence of work done for customer records or warranty purposes.

4. Ergonomics and Comfort
Using an HD camera with a digital microscope allows technicians to view the magnified image on a monitor rather than through eyepieces. This setup reduces eye strain and improves posture, making it more comfortable for technicians to work for extended periods.

5. Dynamic Range and Lighting
HD cameras often come with advanced features such as high dynamic range (HDR), which helps in capturing images in varying lighting conditions without losing detail in shadows or highlights. This capability is particularly useful when working with reflective surfaces or in poorly lit environments.
6. Software Integration
Many HD cameras come with software packages that facilitate image processing and analysis. These tools can enhance the repair process by providing features like measurement tools, annotation capabilities, and real-time image adjustments.

7. Versatility
HD cameras can be used with various types of microscopes, including stereo microscopes, digital microscopes, and trinocular microscopes. This versatility makes them suitable for different repair tasks, from general inspections to detailed component examinations.

I believe that after reading this, you have a certain understanding of microscopes and HD cameras. If you have the urge to buy this set of equipment, you may want to take a look at these sets of equipment from phonfix if you don't have a suitable manufacturer to buy this.

RF7050 PRO-F019 Trinocular Stereo Microscope with 4K camera set
RF4 RF-7050 PRO-F019 7-50X Trinocular Microscope with 6 mechanical gear zoom locking knobs, 360° adjustable swing arm, silicone pad, 10X/20X eyepiece, 0.5X C-mount adapter, 0.5X/0.7X barlow lens, 144 LED light, and disassembly blade set for mobile phone motherboard repair, PCB board inspection, and electronic component analysis.

3.5-90X White Trinocular Stereo Microscope With Camera
3.5X-90X Trinocular Stereo Zoom Microscope + LED light + UV glass + 2.0X and 0.5X Objective Len+380MM*250MM aluminum alloy pad (Microscope fixed base), with option 14 MP HDMI Camera

RELIFE RL-M5T-B1 Trinocular Microscope with Display HDMI Camera
Relife RL-M5T-B1 0.7-5X Continuous Zoom Trinocular HD Stereo Microscope with M-12 3800W HDMI Camera & LCD Display. RELIFE RL-M5T-STL2 Trinocular HD Stereo Microscope. Focal Length Adjustment Microscope with 10X HD Wide-angle Eyepiece Optical Coating Objective Lens Adjustable LED Light.
The above is phonefix's summary of why microscopes need HD cameras. If you have other questions, we welcome you to discuss. If you need these mobile phone repair tools, you can directly click on my link. Thank you for watching, phonefix company.
