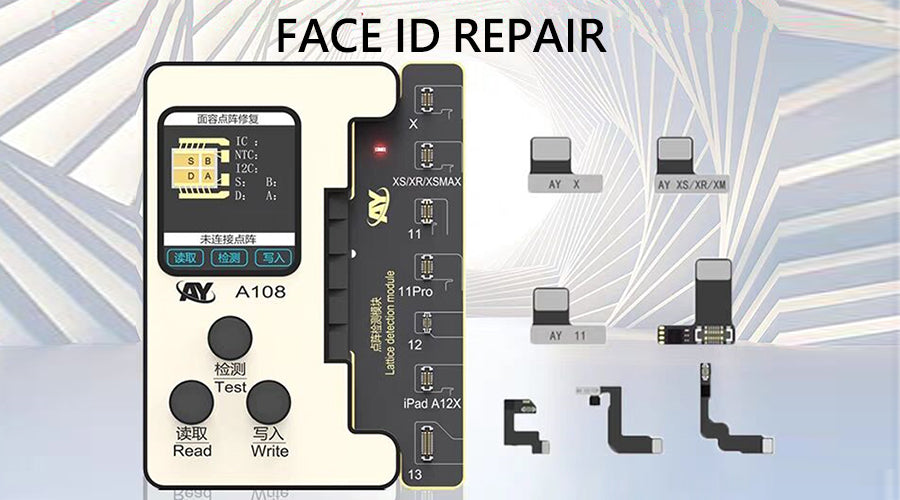

iPhone's Face ID feature relies on its built-in dot-matrix sensor, which captures the user's facial features for authentication. If there is a problem with this sensor, it may cause the facial recognition function to fail. A108 BOX Cell Phone Repair Programmer does not require alignment or welding, and supports battery/face dot matrix/screen original color repair, etc.
Dot matrix chip repair tutorial (taking iPhone 13 as an example)
1. Detect the matching degree of faces ID
Matching is required before the face can be restored, Components required for facial work: infrared lens, dot matrix; you can use AY Assistant to check whether the dot matrix code and infrared code match before maintenance.
2. Back up the original dot matrix data
Connect the dot matrix cable to A108 programmer, connect the mobile phone to AY Assistant, and click "Cloud Backup".
The test results may include the following scenarios:
- Normal lattice does not require lattice maintenance;
- If the fuse lattice is damaged, the AY lattice chip solution can be replaced;
- Any problem with NTC can be solved by plugging in NTC resistor;
- I2C is disconnected, and the lattice data cannot be directly backed up for repair. It is necessary to repair the circuit and then repair the lattice.
3. Solder the adapter pad and chip
Separate the magnetic ring and prism, and remove the original lattice chip. The specific situation after the chip is removed is as shown in the figure below.
Then weld the adapter pad and chip. The chip points are divided into 16-pin chips and 25-pin chips.
The last step is to glue the magnetic ring and the prism together, paying attention to the alignment.
FAQ about Dot Matrix Repair
Are there any system restrictions on chips, wiring solutions, etc.?
- It cannot be lower than IPhone13, otherwise it cannot be repaired perfectly.
What should I do if it prompts that the high-voltage detection is abnormal?
- Check whether the 19V power supply is connected.
When the dot matrix cable is connected to the AY108 Box plug-in cable, "abnormal lighting" appears?
- Check whether the direction of the connection between the dot matrix cable and the AY plug-in cable is correct.
After the repair, the boot prompt "Face ID cannot be activated on this iPhone"?
- The dot matrix data is not written, the wrong dot matrix data is written, the dot matrix is not working, and the lens is not aligned;
Is the portrait blurred and flickering?
- Not all the four sets of lights tested normal; the dot matrix and the prism were misaligned, and the X and Y axes of the infrared and dot matrix were not horizontal.
Other brands where Phonefix can fix iPhone Face ID
JC Receiver FPC Flex: JCID Receiver FPC Flex can be used together with JCID V1SE/V1S Pro programmer, and JCID Non-removal FPC Flex to fix the iPhone Face ID true tone problem.
i2C MC12 Dot Matrix Cable: Used in conjunction with the i2C MC14 smart dot matrix face ID repair programmer, iPhone Face ID can be repaired without disassembly or soldering.
MiJing ZH01 Repair Instrument: Supports iPhone Face ID repair, no need to disassemble optical components, no need to solder dot projector dot matrix flex cable.
JC dot matrix IC chip: Which can be used for iPhone Face ID repair. It can be fixed by the face detection module.
In general, there are many technical repair methods for iPhone face repair, which can be done through dot matrix and programmer, face repair cables, etc. There are many tools available in the diyfixtool store. As one of them, A108 Box has a very high status in facial repair. In the future, we will provide more solutions.
