Key Features and Benefits
- One-button startup function: This feature allows technicians to easily start the device, improving safety and efficiency by eliminating the need for short circuits.
- Real-time monitoring: iBooter provides real-time monitoring of startup current, output voltage, load voltage, and power output. This feature is essential for identifying abnormal currents that may indicate potential hardware problems.
- Fault analysis and data comparison: It includes a specialized fault current analysis function that allows technicians to save and compare fault current data for different models.
- Integrated with diagnostic software: iBooter works with JC Intelligent Drawing software to utilize a comprehensive database of schematics and fault analysis tools. This integration helps to accurately locate and analyze faults, which is essential in mobile device repair.
- User-friendly design: The iBooter is equipped with a built-in gyroscope that automatically rotates the screen to ensure the best display orientation, enhancing usability during the diagnostic process.
- Supports high current: It can handle high current while monitoring the voltage range, which is essential for safely diagnosing power-related issues.
- Comparison with other Phone Repair Tools: While traditional tools such as screwdrivers and pry tools are essential for physical repairs, the JCID iBooter stands out for its ability to gain insight into the electrical health of the device. It focuses on analyzing current consumption during the boot process, helping to identify faults that may not be discovered through physical inspection alone, such as short circuits or battery problems.
In summary, the JCID iBooter Current Analyzer is an indispensable tool in mobile phone repair because it is able to simplify the boot process, monitor key electrical parameters, and integrate with advanced diagnostic software. This combination of features not only improves repair efficiency, but also improves the accuracy of mobile device fault detection and analysis.
How to use the JCID iBooter Current Analyzer
Steps:- Setup: Connect the iBooter to your device using the appropriate boot cable. iBooter supports a wide range of models, including iPhone 7 to 14 Pro Max.

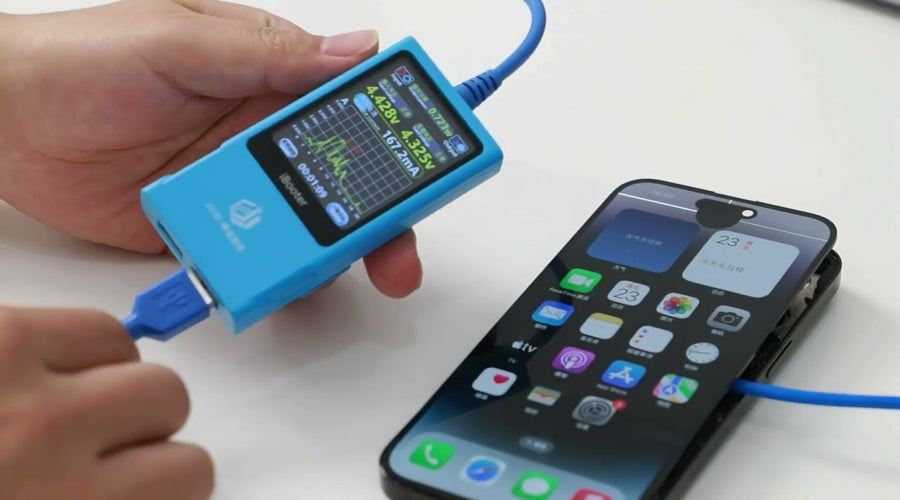

- Power On: Once connected, turn on iBooter. It features a dual display mode that combines digital and pointer displays to intuitively display the startup current.
- Startup Process: Use the one-button start function to start your device without shorting the motherboard.
- Monitor Current: iBooter allows you to monitor startup current and voltage in real time. It supports high current flow while monitoring the normal voltage range (Apple devices: 4.2V-5.0V; Android devices: 4.2V-8.0V).
- Data Analysis: Use JC Intelligent Drawing software in conjunction with iBooter to save fault current data and conduct effective analysis. The software provides a curve pause function that helps reference the fault current of other models to help successfully conduct fault analysis.
- Upgrades and Features: Utilize online upgrades for continuous innovation and access to the latest features.
- Safety Features: iBooter includes automatic protection features to prevent damage during operation.
- Documentation and Support: Refer to any included documentation for specific troubleshooting tips or other features that may be relevant to your device model.
Optional boot cables:
- JCID 4-IN-1 HUB power cord X-11 Series
- JCID 4-IN-1 HUB power cord 7-8P Series
- JCID 4-IN-1 HUB power cord 15 Series
In short, the JCID iBooter current analyzer is an indispensable tool in mobile phone repair. China Phonefix provides you with reliable mobile phone repair equipment and mobile phone repair accessories. Pay attention to Phonefix to bring you the latest product launch time.
