For most repair technicians, how to read and write repair data, PHONEFIX's IP BOX V3 Programmer can solve this problem and can be used to read and write data during cell phone repair. It can also quickly and accurately complete the backup and recovery of cell phone data, helping repairers to carry out cell phone repair work more effectively.
What is the function of IP BOX V3 programmer?

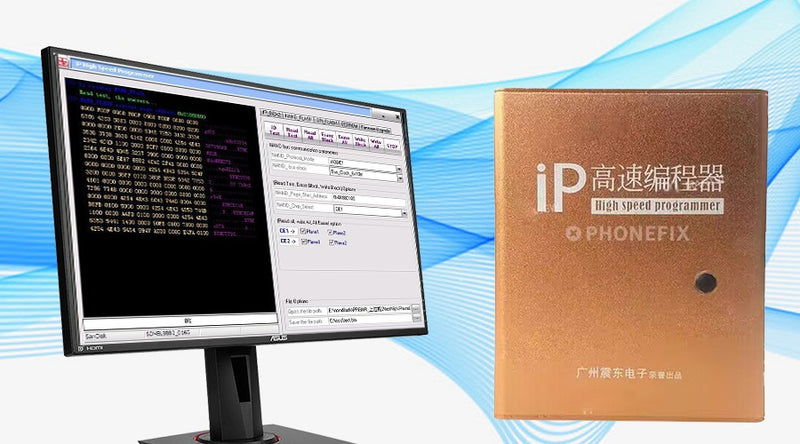

Upgraded IP BOX V3 programmer is an iP high-speed programmer for iPhone/iPad devices, supports Apple NAND Flash, baseband EEPROM, CHIP read, write and erase repair functions, helping engineers to fix hardware flashing and booting errors.
Programmer is a kit with IP-BOX v3 host, LGA5260 Test socket, SPI Flash Test socket, EEPROM IC Test socket, Battery Activation Charge Board and USB Cables.
- IP BOX3 programmer for iPhone/iPad NAND flash upgrade, repair NAND flash error , NAND test, backup and extract NAND information, rewrite data to new replacement NAND, repair NAND partition information.
- NAND Flash for Read, write, erase, test Apple NAND flash.
- SPI Flash for Read, write, erase Apple baseband EEPROM IC, support almost all SPI FLASH IC, suitable for iPhone 4s/5/5C/5s.
- EEPROM for Read, write, erase Apple baseband EEPROM IC, support iPhone 6/6Plus/6s/6s Plus/5se.
(Note: SPI Flash Test socket and EEPROM IC Test socket must connection to PCB)
Simply Tell you how they operate
IP BOX3 programmer is the host, all other operations need to be connected to the host to complete, and then you can choose the function according to what you want to repair, there are a total of five options, and then click to operate. If the host, you have to choose the model of the device to be repaired.
NAND Flash is the core function, there are eight control keys on it, ID Test key can read the NAND ID, Read Test key can print some internal data information, Read All key can read all data and save it to the computer, Erase Block key can erase part of the block data, Erase All key can erase the NAND, Write Block key is used to write part of the block data, Write All key can write the NAND. Write Block key is used to write part block data and Write All key is used to write NAND boot (font) information. The last NAND bus communication parameter.
In short, then the function of multiple buttons is summarized as support for multiple models of iPad and iPhone, from which to extract support and modify iPhone / iPad information. Divided into two blocks NAND BOOT1 and NAND BOOT2 can be used to load information (partition information), simple and fast operation.
SPI Flash will not be console complex and is generally used to read and write repair basic spi flash icons to help with update and restore errors.
EEPROM key page is also relatively simple to apply if you need Read, Write, Erase Apple Baseband EEPROM IC.
Recommended URL to download the video: https://drive.google.com/file/d/0B5pnTlAfltG3dEFnZXdBVmlwTkk/view
Multiple Solutions for Nand Flash Repair
JCID P15 Nand Programmer: For iPhone, iPad, and MAC Nand Flash Read Write Format Repair, Storage Capacity Expansion, Purple Screen Mode Read and Write Nand without disassembling the machine, without disassembling the machine and restarting to analyze and so on.
I2C P14 Pro Nand Programmer: comes with four modules for Nand flash memory read/write repair. Each module repairs a different model and can be purchased according to your needs.Nand memory chip read/write backup and formatting, memory expansion, DFU purple mode repair without disassembly and more.
iRepair P12 Programmer: BGA70 BGA110 2-in-1 box supports iPhone 6S-13 Pro Max Nand Flash reading, writing and formatting.DFU Purple Screen Mode. WiFi one-click unbundling, disassembly-free purple screen reading and more.
Currently PHONEFIX has many kinds of NAND Flash programmers, NAND Flash programmer is a powerful tool which can help us manage and utilize the NAND Flash chips more effectively and bring convenience to our maintenance work.
