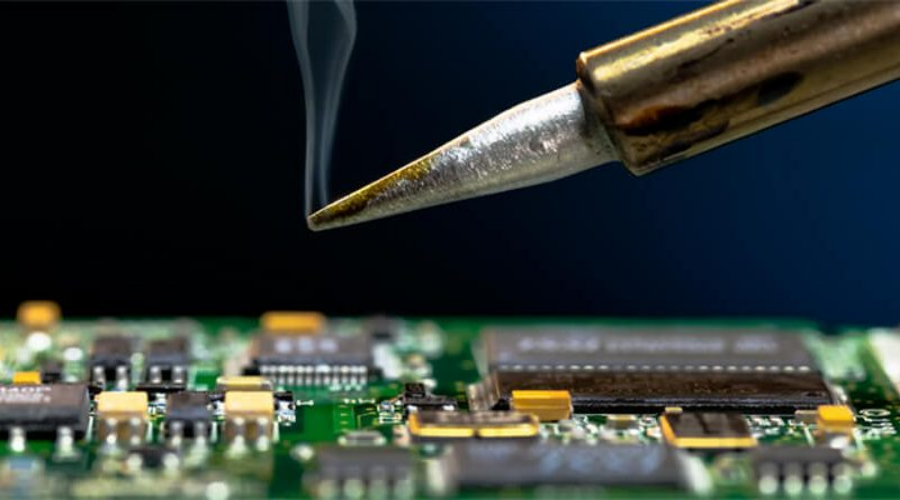

Choosing the Right Tool for Fixing Defective Solder Joints

Soldering is a cornerstone of electronics repair, especially for delicate devices like smartphones and motherboards. However, solder joint defects—such as cold soldering, solder bridges, and weak connections—can jeopardize functionality and reliability. Each defect demands careful handling, as improper repairs can worsen the issue or damage other components.
Selecting the right phone repair tools is critical for effectively repairing these defects and preventing further damage to the components.

Essential Tools for Fixing Defective Solder Joints
1. Drag Tin Needles
Description: Tools like the MaAnt M061 Tin Dragging Needle are designed for precise solder manipulation. With a gold-plated, rounded ball head, these needles can repair FPC connectors or BGA solder points without scratching the PCB.
Advantages: Perfect for cleaning excess solder, smoothing uneven joints, or addressing solder bridges.
Applications: Ideal for fine-pitch connectors, BGA chips, and other precision soldering tasks.
2. Heat Guns
Description: Multi-purpose heat guns deliver controlled, even heating, suitable for large-scale soldering or desoldering tasks.
Advantages: Effective for reheating cold joints, redistributing solder, or removing defective components.
Applications: Commonly used in reflow soldering to fix cold solder joints or reattach surface-mounted components.
3. Temperature-Controlled Soldering Irons
Description: Precision soldering irons with adjustable temperature settings provide consistent heat for various soldering tasks.
Advantages: Prevent overheating and underheating, ensuring optimal solder flow and adhesion.
Applications: Suitable for repairing individual solder joints or assembling small components.
4. Flux and Cleaning Tools
Description: Solder Flux enhances solder flow and adhesion, while cleaning tools remove oxidation and residue.
Advantages: Ensures clean, reliable joints by improving solder wetting and reducing contamination.
Applications: Used before and during soldering to prepare surfaces and ensure defect-free results.
5. Desoldering Tools
Description: Tools like solder wick or vacuum desoldering pumps remove excess solder effectively.
Advantages: Ideal for eliminating solder bridges or clearing pads for rework.
Applications: Used when re-soldering or replacing components.

How to Choose the Right Tool for the Job
1. Identify the Defect
Assess the type and severity of the defect. For example:
Cold joints require reflow tools like heat guns.
Solder bridges benefit from precision tools like drag tin needles.
2. Consider Precision
For fine-pitch components, opt for tools like drag tin needles or small-tipped soldering irons.
For large-scale repairs, heat guns or broader soldering tips are more efficient.
3. Prioritize Temperature Control
Sensitive components require tools with precise temperature adjustments to avoid damage.
4. Balance Efficiency and Safety
Use anti-static tools to prevent ESD damage to electronic parts.
Keep the workspace clean to avoid contamination and ensure accurate repairs.

Step-by-Step Guide to Fixing Defective Solder Joints
1. Preparation
Clean the soldering area thoroughly to remove oxidation or debris.
Select the appropriate tool based on the defect type.
2. Repairing the Joint
For Cold Joints: Use a heat gun or soldering iron to reheat the joint until the solder flows evenly. Add flux if needed.
For Solder Bridges: Apply a drag tin needle to remove excess solder, ensuring no unintentional connections remain.
For Overheated Pads: Use solder wick to remove damaged solder, then reapply fresh solder with minimal heat.
3. Post-Repair Inspection
Check the solder joint visually for smoothness, uniformity, and strength.
Test electrical connectivity with a multimeter to ensure proper functionality.

Common Mistakes to Avoid
Using Excessive Heat: This can damage components or the PCB. Always use temperature-controlled tools.
Ignoring Cleaning Steps: Residue or oxidation can compromise joint integrity.
Applying Too Much Solder: Leads to bridges or uneven joints. Use just enough solder for a secure connection.
Skipping Flux: Flux improves adhesion and flow; neglecting it increases the risk of defects.
