Description
USB3.0 Series Features:
1) Camera transfer speed is fast.
2) Compatible with U3VISION vision standard.
3) High frame rate camera, 0.3MP 790FPS, 1.3MP 210FPS, 4.0MP 88FPS, 20.0MP 20FPS.
4) Support multiple cameras to work at the same time.
5) Data packet retransmission technology to ensure reliable data transmission.
6) Provide SDK, easy to use and convenient.
7) Support external trigger and flash.
8) SDK supports Windows and Linux systems.
9) SDK supports VC/C++, VB6, VB.NET, Delphi, C#, JAVA, Python, OpenCV.
Product Feature:
1) Camera parameter archive is saved as a file.
2) Camera name can be modified to easily distinguish multiple cameras.
3) With a maximum of 16K bytes of data storage.
4) Support 8bit, 24bit, 32bit image format output.
5) Ethernet, USB3.0, and USB2.0 camera SDK are the same.
Package Incluede:
1 x Industrial Camera(No include lens)
1 x 3 Meters Cable
1 x Trigger line
Industrial Camera Parameters：
|
Model |
HT-SUA501GM-T |
|
Sensor |
2/3”CMOS |
|
Shutter Type |
Global Shutter |
|
Camera Type |
Monochrome |
|
Pixel Size |
3.45X3.45μm |
|
Effective Pixels |
5.0 MP |
|
Resolution @FPS |
2448X2048@40FPS |
|
1920X1080@75FPS |
|
|
1280X1024 @79FPS640X480 @161FPS |
|
|
Pixel Bit Depth |
12bit |
|
Sensitivity |
1146mV 1/30s |
|
GPIO |
6-pin Hirose Connector |
|
Acquisition |
Continuity/Soft Trigger/Hard Trigger |
|
Maximum Gain (multiple) |
249.9 |
|
Exposure Time (ms) |
0.0133~13924 |
|
Filters |
None |
|
Frame Buffer |
128M Bytes |
|
Custom Data |
2K Bytes |
|
Video Output Format |
Bayer8 |
|
Visual Standard Protocol |
USB3Vision 1.0、GenICam |
|
Lens Interface |
C/CS mouth |
|
Data Interface |
USB3.0 Type B |
|
Power Supply |
5V, USB Powered |
|
Power |
<2W |
|

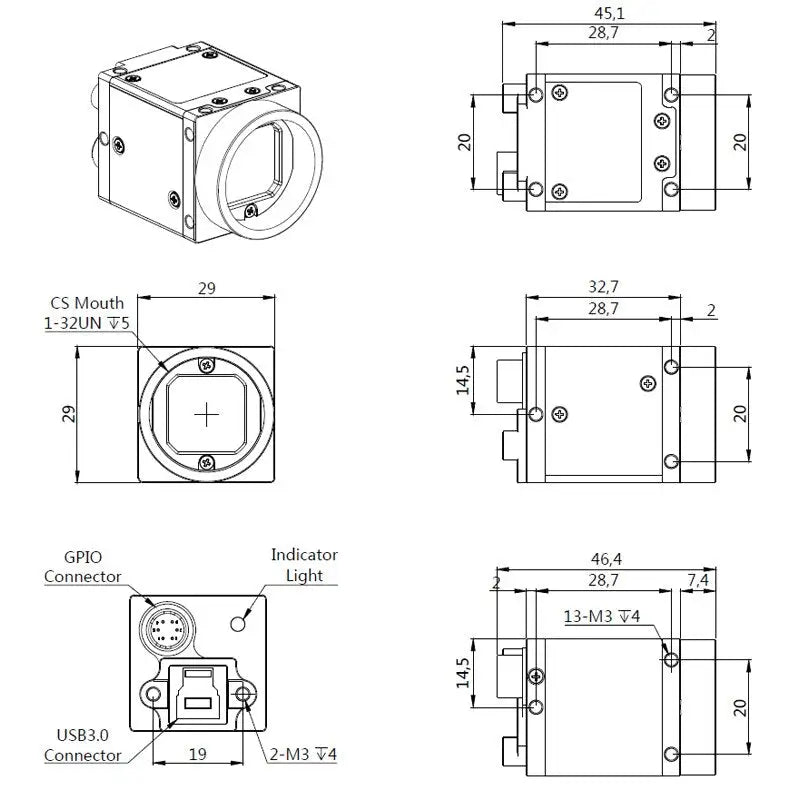

Dimensions |
29(mm)X29(mm)X32.7(mm)， |
|
Weight |
< 70g |
|
Operating Temperature |
0~50 Degrees |
|
Operating System |
Support WIN7/8/10 32&64 System; PC Linux System |
|
Driver |
Directshow; Halcon; Labview; OCX; TWAIN Component |
|
Programming Ianguage |
C/C++/C#/VB6/VB.NET/Delphi/BCB/Python/OpenCV |
|
Other Functions |
Support ROI resolution, contrast and gamma adjustment, saturation adjustment, etc. |
