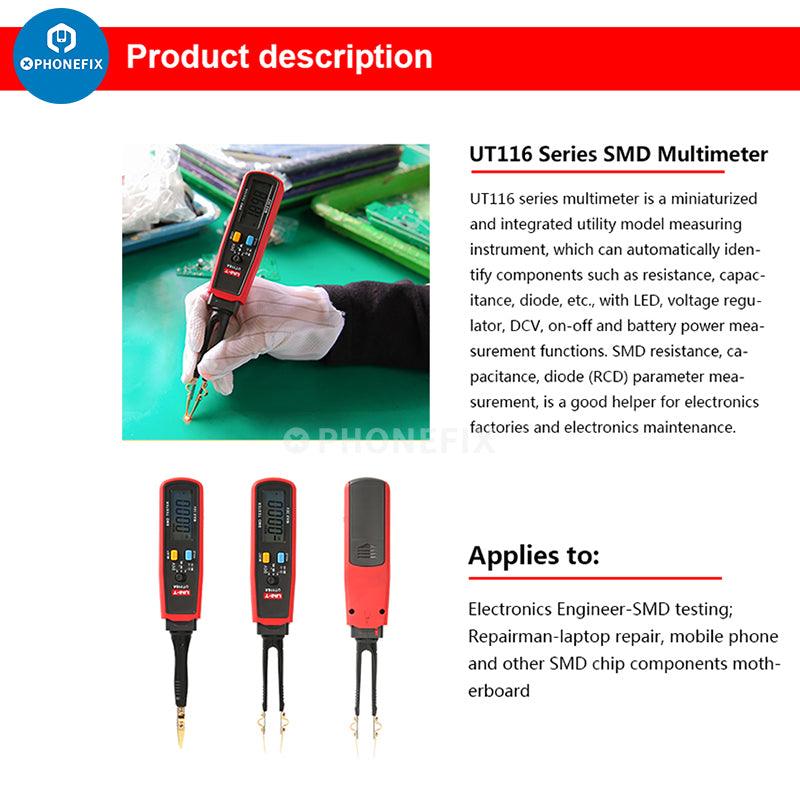

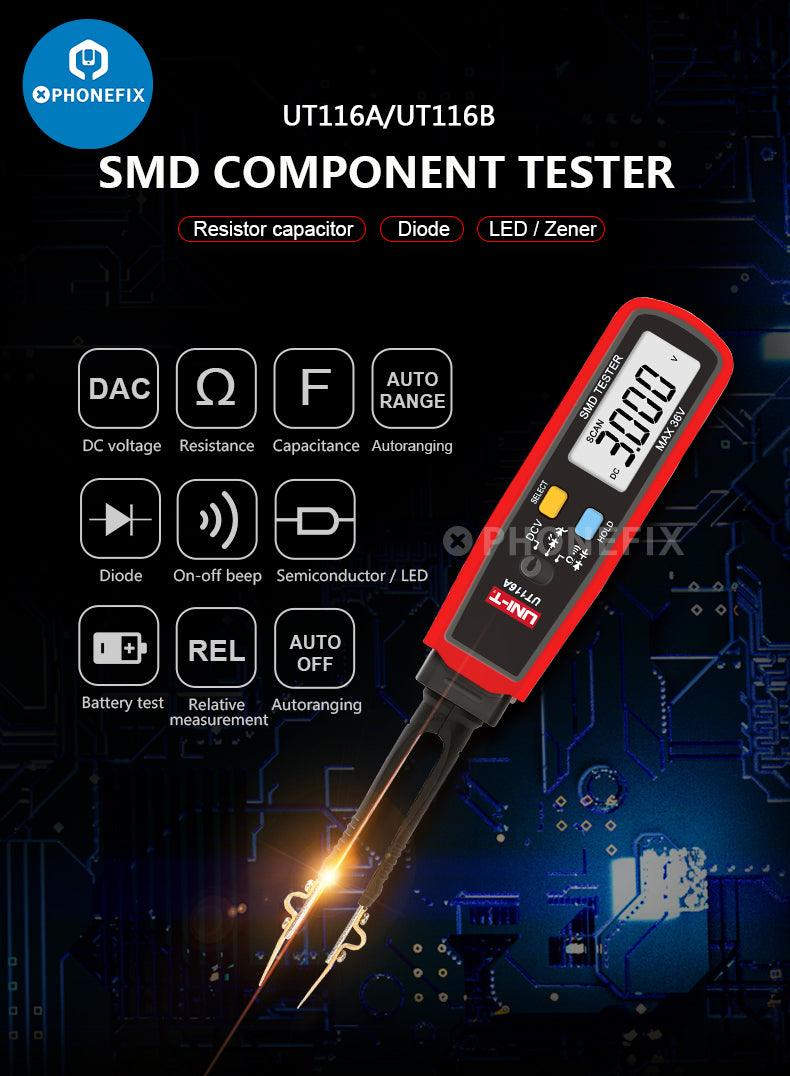

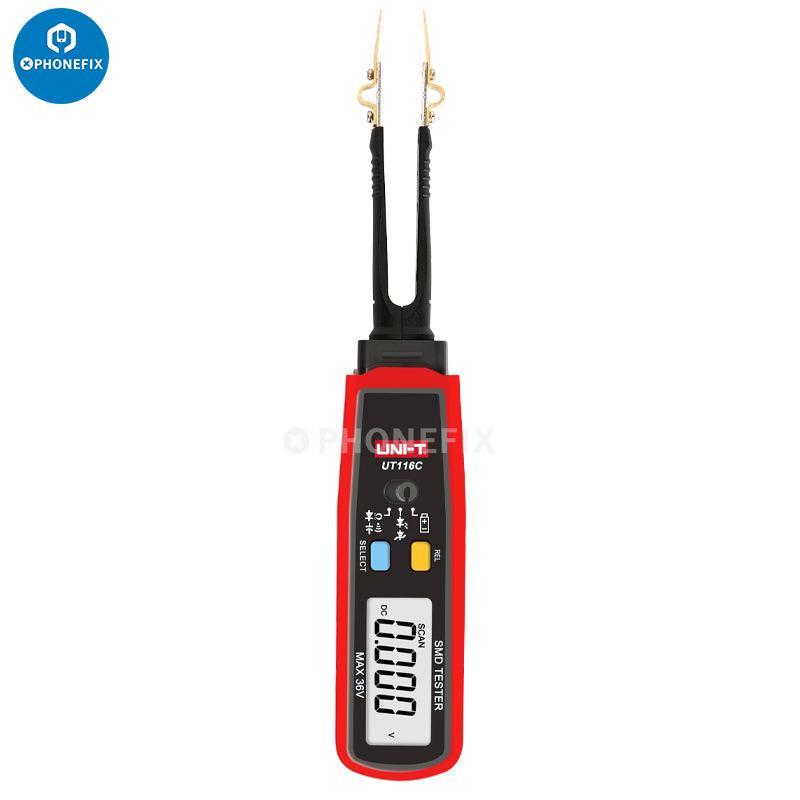

UNI-T UT116C SMD tester with rotatable gold-plated tweezers SMD resistance capacitance diode (RCD) parameter measurement tool. This DC continuity diode test meter is for electronics Engineer-SMD testing, phone/ablet/laptop and other SMD chip components motherboard repairing tool.

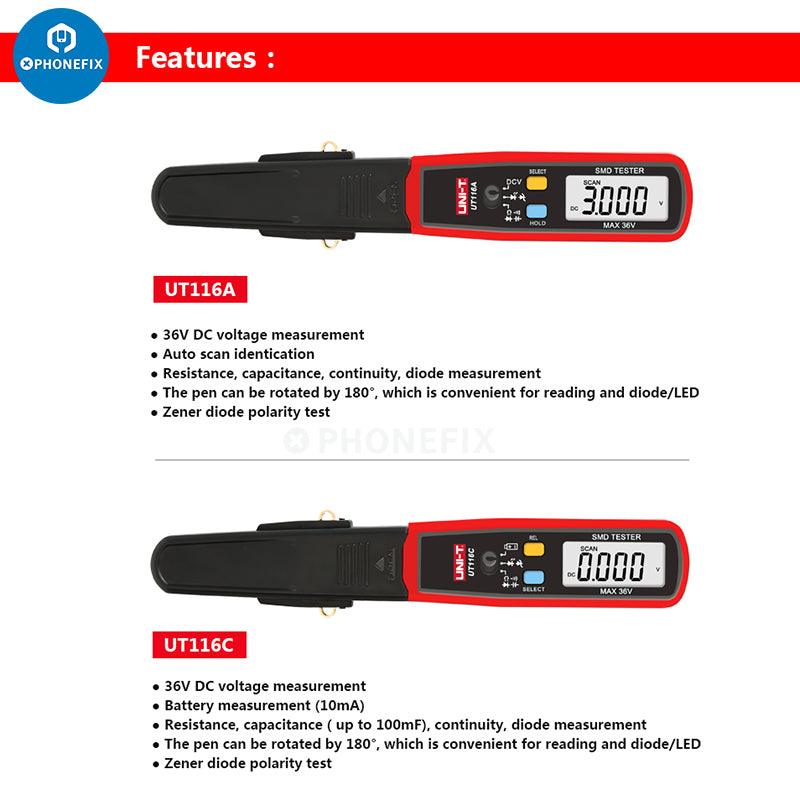

Features:
- 36V DC voltage measurement.
- Battery measurement(10mA) Only UT116C.
- Resistance, Capacitance (UT116C: up to 100mF), continuity, diode measurement
- The pen can be rotated by 180 degrees, which is convenient for reading and diode/LED.
- 20V/1mA LED Zener diode polarity test.
- 6000 count display.
- It is small in size and light in weight, which is very convenient to carry around.
Specifications:
- Power:1.5V battery (R03) x 2
- Display:39mm x 20mm
- Product size: 204mm x 33mm x 25mm
- Of counting: 6000
- Resistance: 60MΩ
- Capacitance :100mF
- Diode test:3.2V
- LED / Stabil Volt: Approximately 21V / 1mA
- Continuity test :<50Ω
- Battery monitoring: Charging current and asymp: 10mA
Package includes:
- 1 x Digital Multimeter (No Battery)
