Sunshine S1 precision C120 soldering tweezers rework station and Sunshine S2 intelligent soldering station with T210 handle, 1S rapid heating and 2S tinning, suitable for mobile phone motherboard SMD chip BGA soldering desoldering repair.

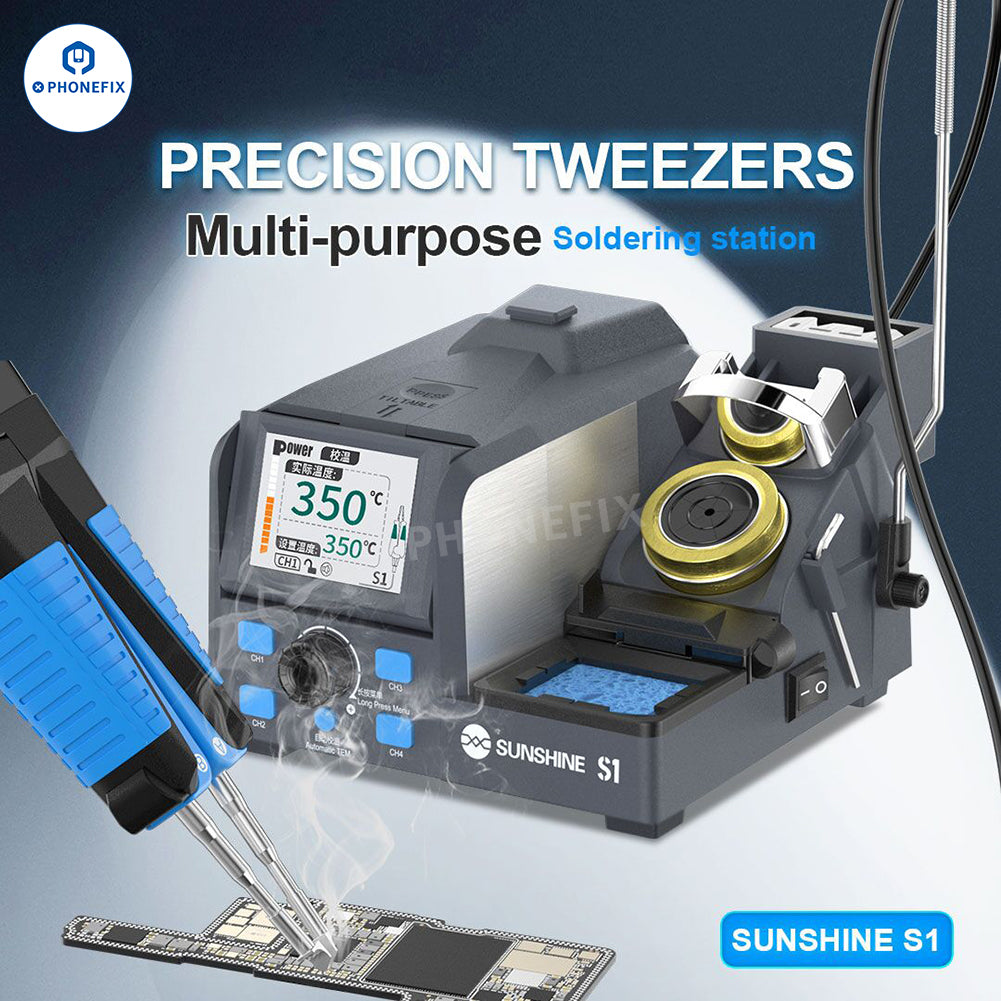

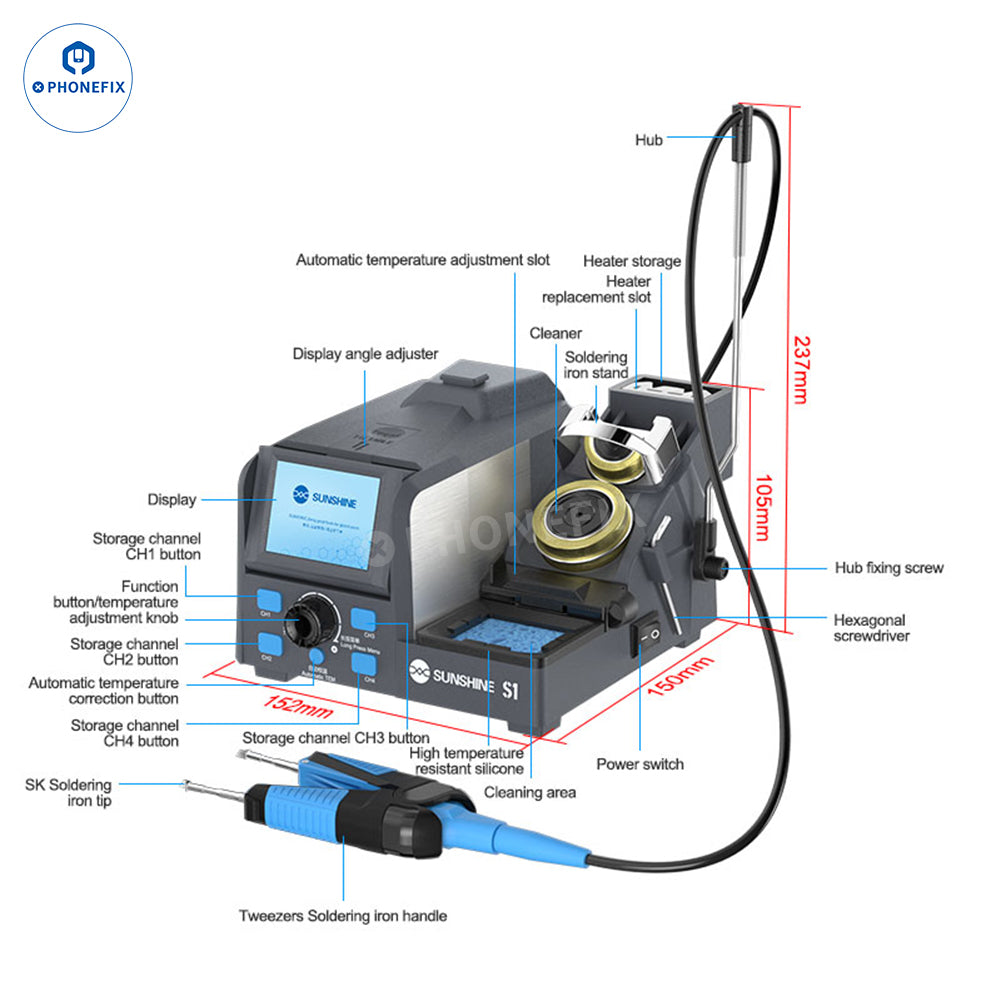

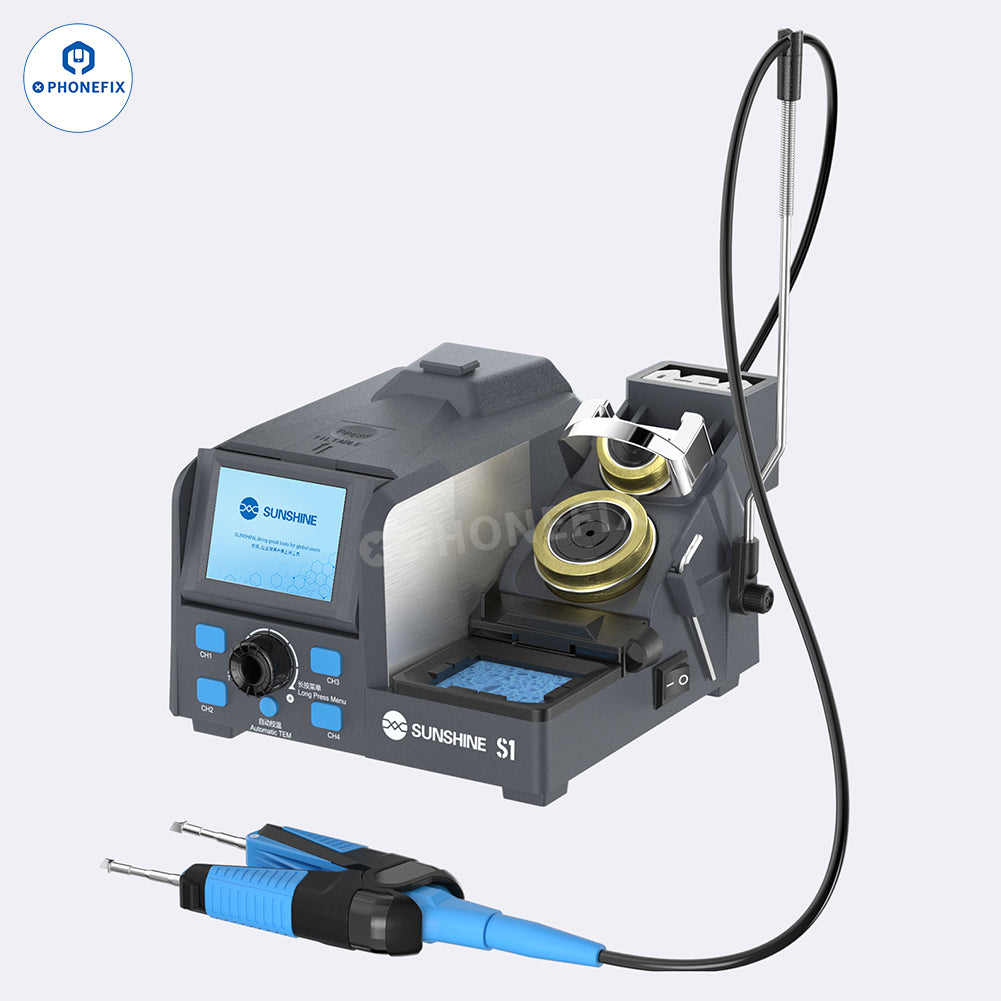

Sunshine S1 Features:
1. Sunshine S1 soldering station compatible with S120 tweezers and T210 handles, you can choose C120 tweezer handle or C210 handle according to your needs.
2. C120 tweezer handle is suitable for precision solder joints/double-needle solder joints, T210 handle is suitable for large solder joints/precision small solder joints.

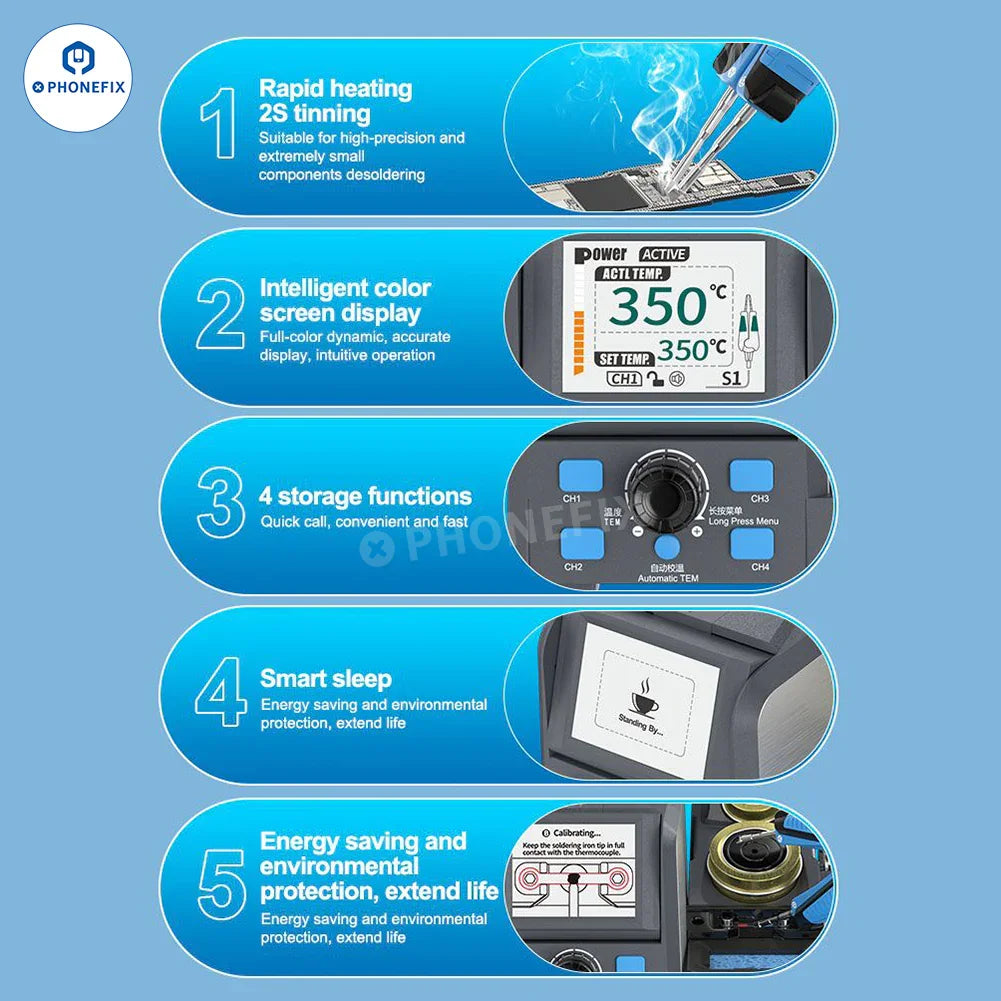

3. Multi-purpose precision tweezer soldering station, fast heating, 2S tinning, suitable for high-precision, extremely small component desoldering.
4. 4 storage functions, fast call; compatible with a variety of different shapes of heating cores, suitable for different scenes.
5. Intelligent color screen display, full-color dynamic, accurate display, intuitive operation.
6. Intelligent sleep, energy saving and environmental protection to extend life; intelligent automatic temperature adjustment, fast automatic temperature adjustment mode, efficient work.
7. The detachable design makes it easy to keep the working environment clean; the storage design can accommodate multiple soldering iron tips, which is easy to store.
8. The hot-swappable card holder can quickly remove and install the soldering iron tip, which is safe and efficient; the wire clip storage is equipped with a wire clip to keep the wires in order and not messy.
9. The full-color dynamic screen has adjustable tilt, accurate display and intuitive operation; it can be adjusted to a better viewing angle as needed.

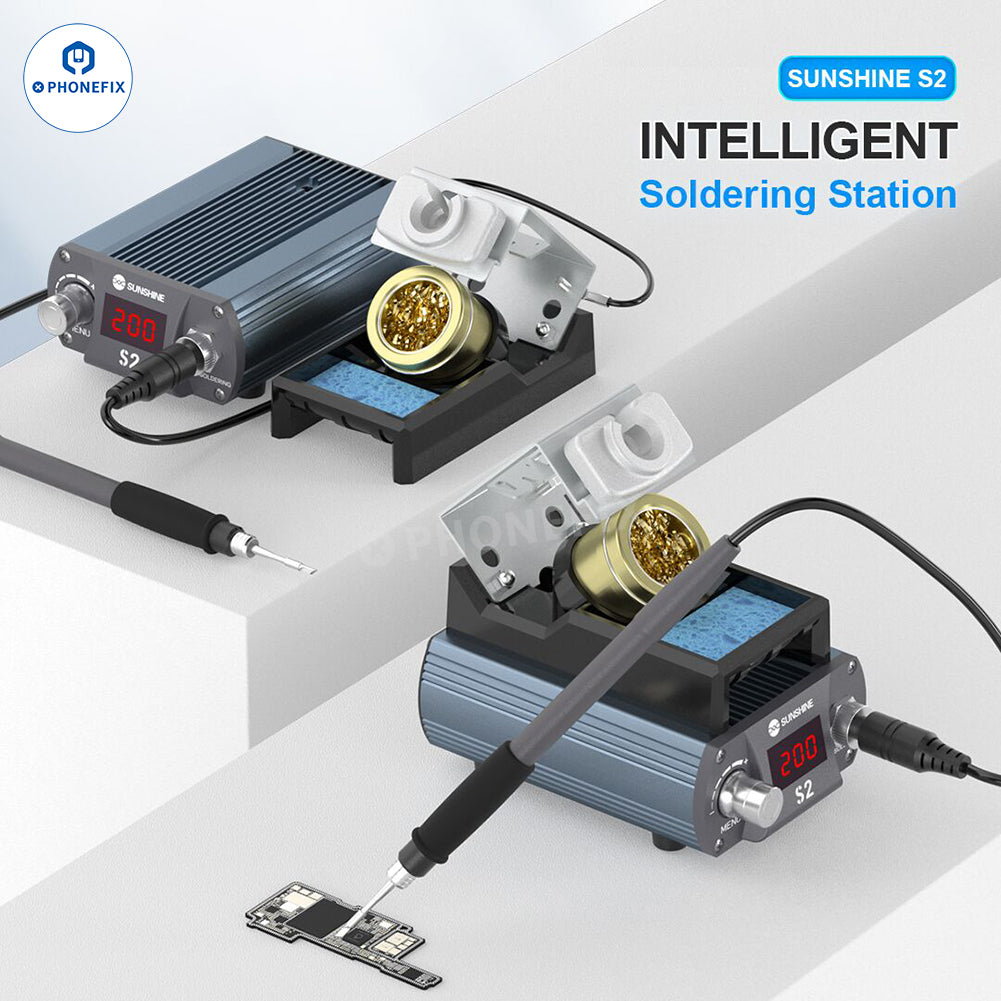

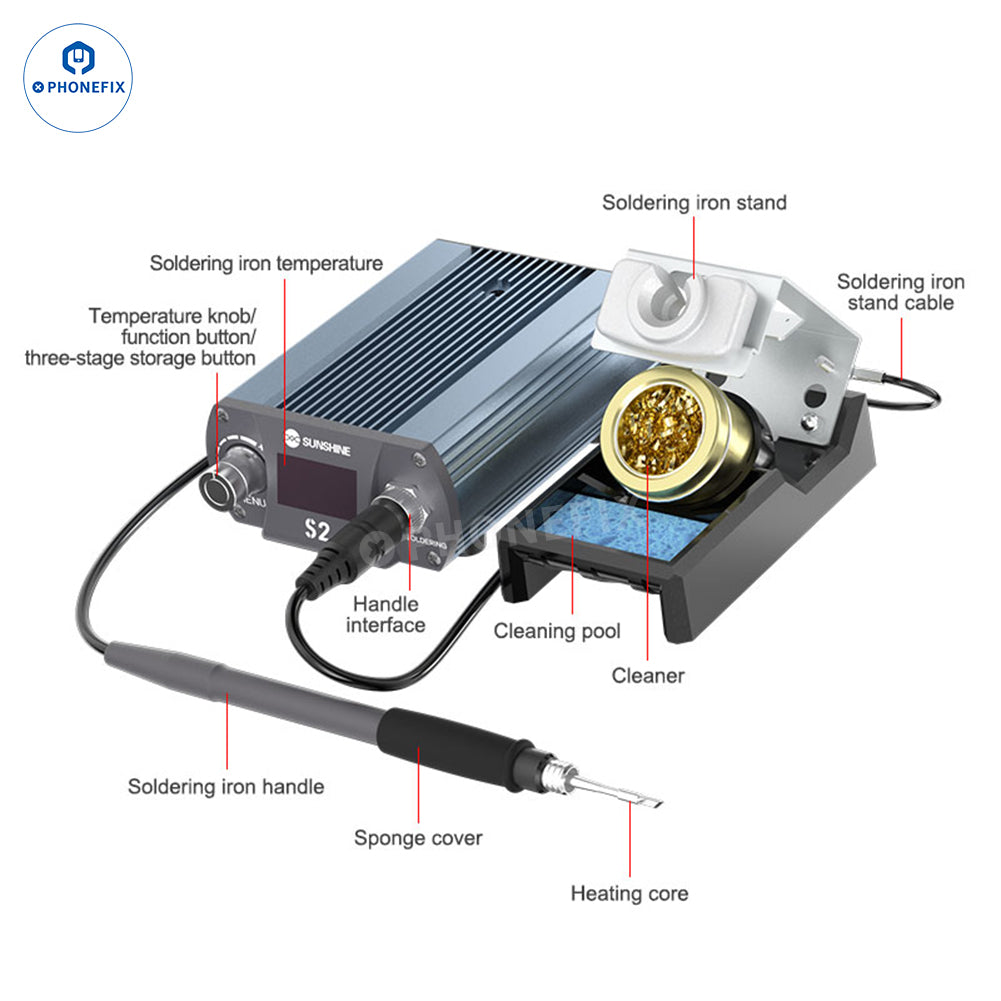

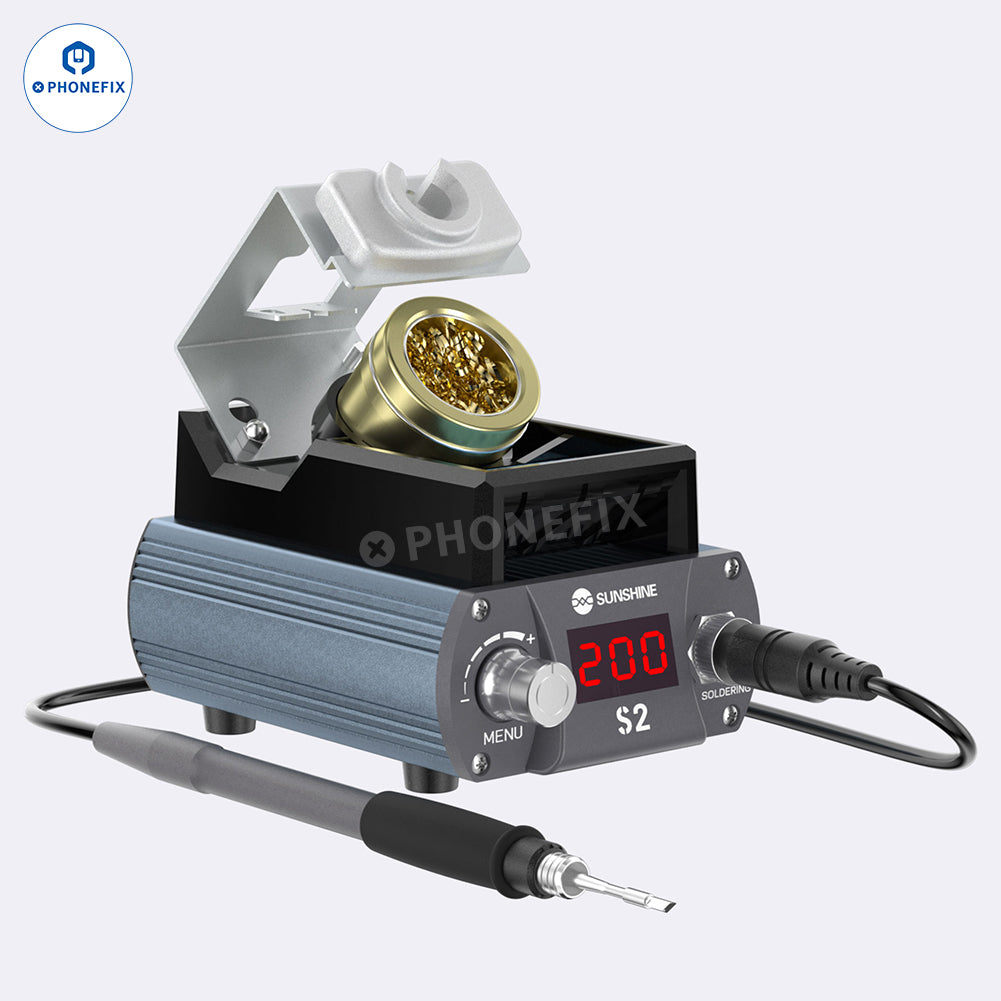

Sunshine S2 Features:
1. High-precision intelligent S2 soldering station with T210 handle, 3-channel temperature storage and access, fast heating, intelligent sleep, temperature correction, universal C210 series soldering iron tips on the market.
2. Fast heating 1S heating 2S tinning, large solder joints without pressure, ensure smooth welding.
3. Flexible placement design of the soldering iron stand, two optional placement methods of the soldering iron stand; removable screws, can be placed at will according to usage habits, or installed on the machine to save space.
4. Three sets of fast temperatures, input three sets of commonly used temperatures as needed, remove the corresponding components, and quickly call them up for use.
5. When the soldering iron is placed back on the soldering iron stand, it will automatically sense sleep and drop to 90/200℃; 30 minutes after entering sleep mode, the soldering station will automatically shut down, and it will start when you pick up the soldering iron.
6. Multifunctional soldering iron stand, cleaner + high temperature resistant sponge + heating core replacement hole.

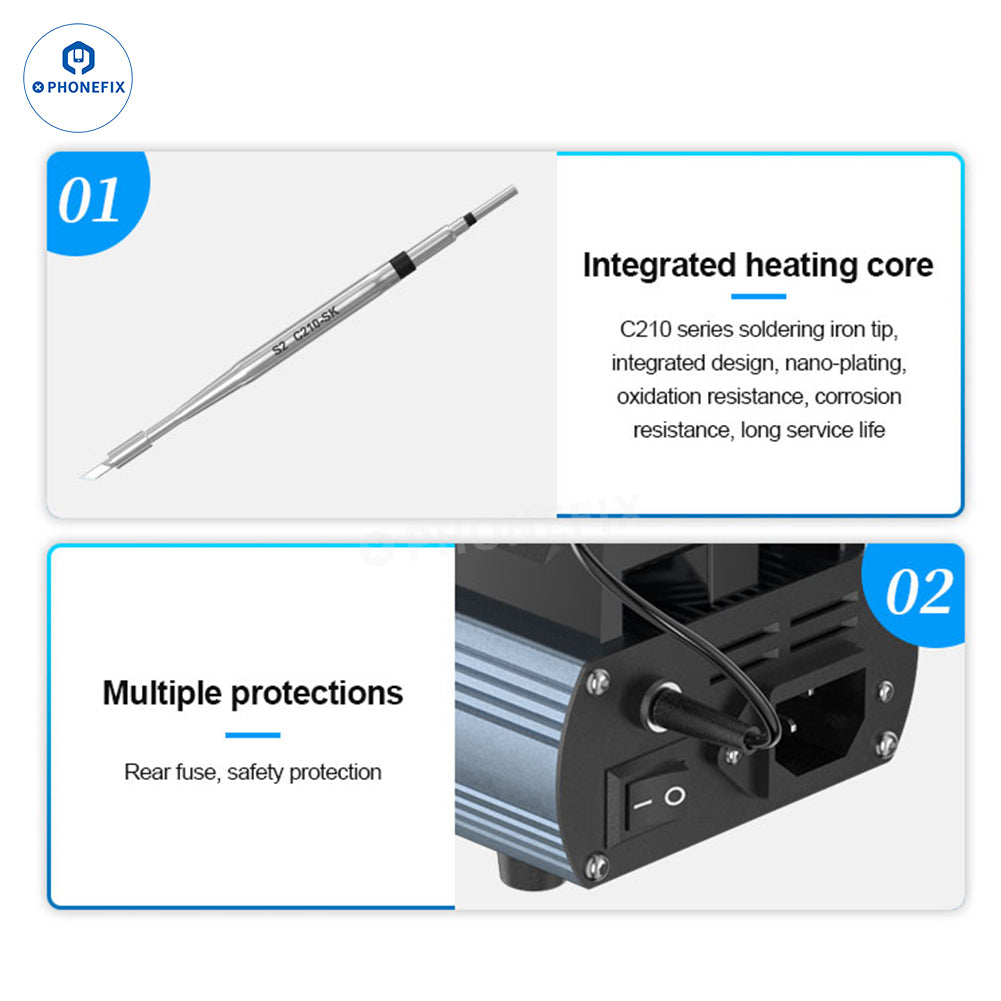

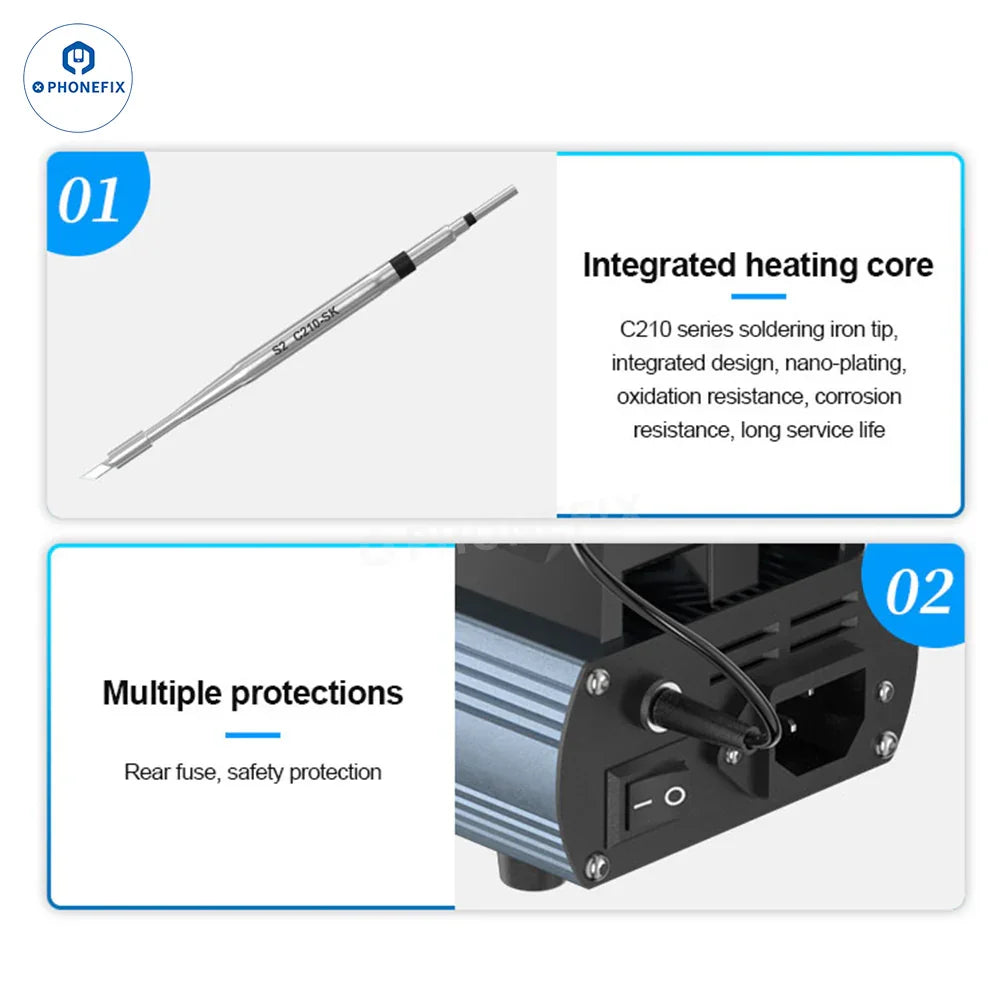

7. C210 series soldering iron tip, integrated design, nano-plating, oxidation resistance, corrosion resistance, long service life.
Sunshine S1 Specification:
Model: Sunshine S1 Intelligent soldering station with tweezers
Rated voltage range: 110-240V, 50Hz.
Rated power: 80W(S1 Soldering iron tip)/40W(210 Soldering iron tip).
Working temperature: 0~40°C/32-104°F
Working temperature: 90~450°C/194-842°F.
Display form: LCD screen.
The impedance of soldering iron tip to the ground: <2Ω.
Net weight: ≈1075g.
Gross weight: ≈1470g.
Host size: 177*152*110mm(±5mm).
Packaging size: 233*208*160mm.
Sunshine S2 Specification:
Model: Sunshine S2 Smart soldering station.
Rated voltage range: 110~220V, 50~60Hz.
Rated power: 40W(210 handle).
Working environment temperature: 0~40°C/32-104°F.
Temperature range: 90~450°C/194-842°F.
Screen display form: Digital tube.
The impedance of soldering iron tip to the ground: <2Ω.
Net weight: ≈710g.
Gross weight ≈1000g.

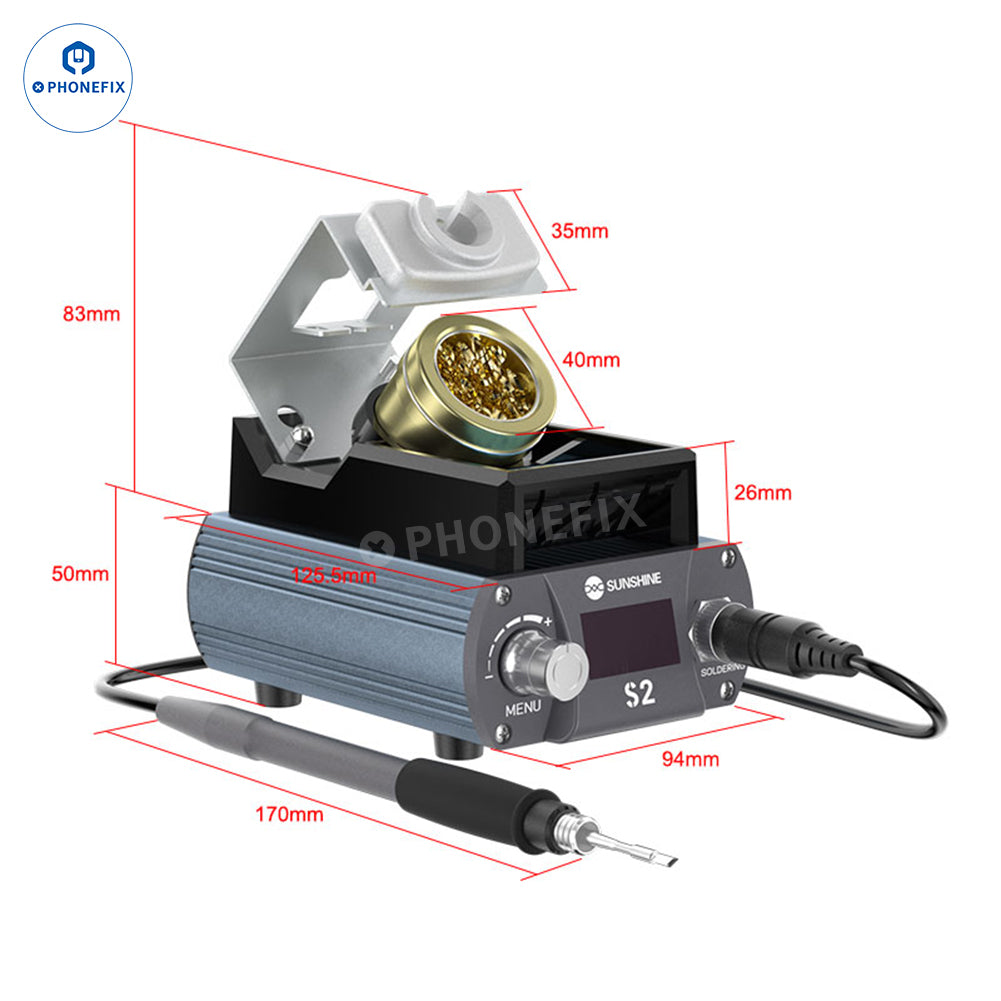

Host size: 142*94*50mm(±5mm).
Packaging size: 200*145*105mm.
S1 Package includes:
1 x Host.
1 x Power Cord.
1 x C120 Tweezers Handle.
2 x C120-SK Soldering Iron Tip.
5 x Thermostat.
1 x T210 Handle(Optional).
1 x Instruction Manual.
1 x Certificate of Conformity.
1 x Package.
S2 Package includes:
1 x Host.
1 x Power Cord.
1 x C210 Handle.
1 x C210-SK Heating Core
1 x Instruction Manual.
1 x Certificate of Conformity.
1 x Package.
