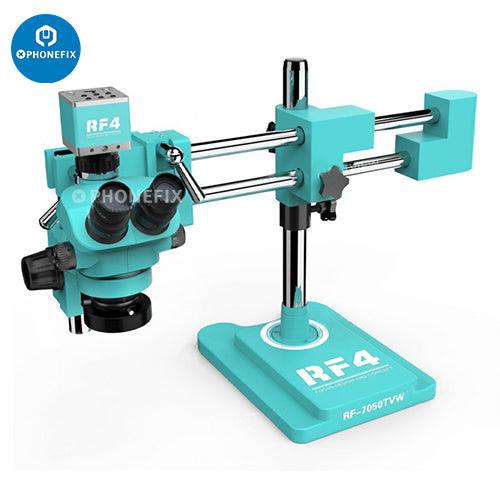

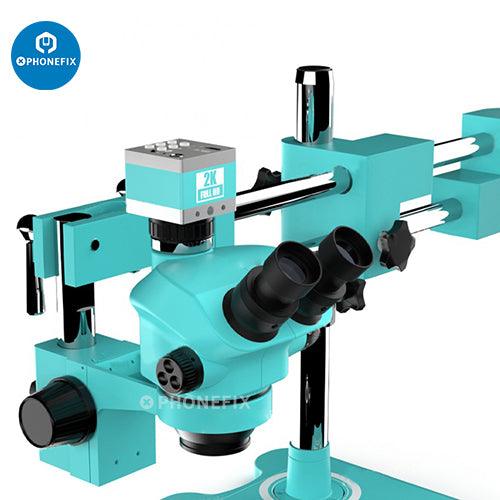

RF-7050TVW Trinocular Stereo Microscope With 2K Full HD 4K Camera

RF4 RF-7050TVW-2KC1/ RF-7050TVW-4KC1 Trinocular Stereo Zoom Industrial Microscope with 4K Ultra HD Camera / 2K Full HD Camera for mobile phone PCB repairing.

RF-7050TVW-2KC1:

1. Brand Name: RF4
2. Model Number: RF-7050TVW-2KC1
3. Theory: Stereo Microscope
4. Drawtube: Trinocular
5. Product name: RF7050TVW double-arm boom stand trinocular microscope
6. Magnification:continuous zoom 7X to 50X
7. Head: 45-degree inclined 360-degree swiveling trinocular
8. Eyepiece: 10X/22mm
9. Light source: 144 LED Ring Light
10. Focusing System: Continuou zoom
11. Color: Green
12. Working distance: 100mm
13. Camera: 2K Full HD camera
14. Boom Stand: 51cm double-arm (overall length: 76cm)
15. High pillar: 41cm
16. Solid cast steel base: 200*245mm
17. Accessories: 144 adjustable led light & dust proof lens

LED Ring Light:

• Input: AC 100~240V
• Output: DC 12V ,
• Max output: 4.5W-6W
• LED: 144 LEDs
• Illumination: Over 30000-35000Lux
• Color Temperature: 6000-7000K
• Inside diameter: 60mm

Package includes:

• 1 x Microscope
• 1 x 2K Camera
• 1 x Double arm stand
• 1 x Column
• 1 x Base

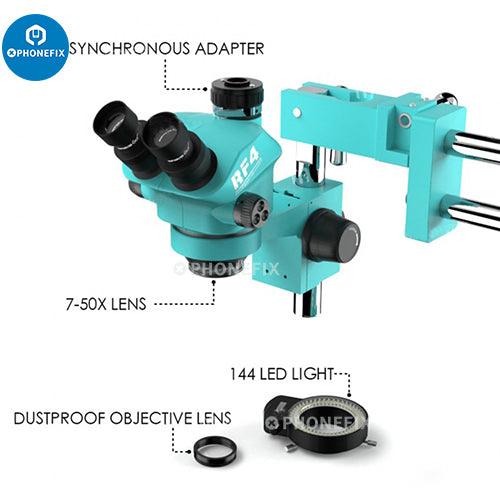

• 1 x Synchronous Adapter
• 1 x Ring Light
• 1 x Dustproof Lens

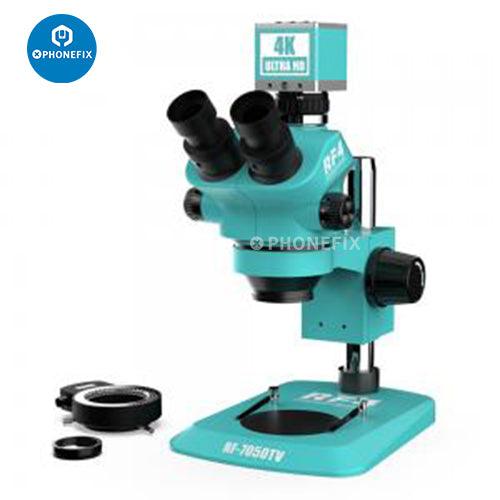

RF4 RF-7050TVW-4KC1

1. Magnification: Continuous zoom 7X to 50X
2. Head: 45-degree inclined 360-degree swiveling trinocular
3. Eyepiece: WF10X/22MM
4. Objective: 0.7-5.0X
5. Camera connector：1/2 CTV
6. Monitor and eyepiece: Synchronous zoom
7. Camera: 3840*2160 4K Ultra HD Camera
8. Boom Stand: 51cm double-arm (overall length: 76cm)
9. Pillar: High 41cm
10. Base size: 200mm*245mm
11. Accessories: 144 adjustable led light & dust proof Lens

LED Ring Light:

• Input: AC 100~240V
• Output: DC 12V
• Max output: 4.5W-6W
• LED: 144 LEDs
• Illumination: Over 30000-35000Lux
• Color Temperature: 6000-7000K
• Light color: Black
• Inside diameter: 60mm
• Package: 144-LED Lamp Ring

4K Ultra HD Camera:

• Sensor Target surface size: 1/2.8"
• The sensor resolution: 4K/3840*2160@30fps
• Output interface: HDMI 4k@30fps
• Mode of operation: Button
• Working voltage: DC 12V
• Storage: USB disk, capacity<=64GB
• The lens type: Supports C/CS interfaces
• Photograph: 8 million, JPG
• Video: 3840*2160 AVi
• Cross curve: 8*8 groups
• File Manager: With
• Parameter type: Specific parameter

Package includes:

• 1 x Microscope
• 1 x 4K Camera
• 1 x Double arm stand
• 1 x Column
• 1 x Base
• 1 x Synchronous Adapter
• 1 x Ring Light
• 1 x Dust-proof Len
