QianLi Fire Eye Pro adjustable focus thermal imager with foldable holder for mobile phone motherboard fault diagnosis repair. QianLi Fire Eye Pro thermal imaging camera with 256*192 resolution, one-click quick diagnosis and detection of leaks and other fault points on mobile phone motherboards and other electronic devices.

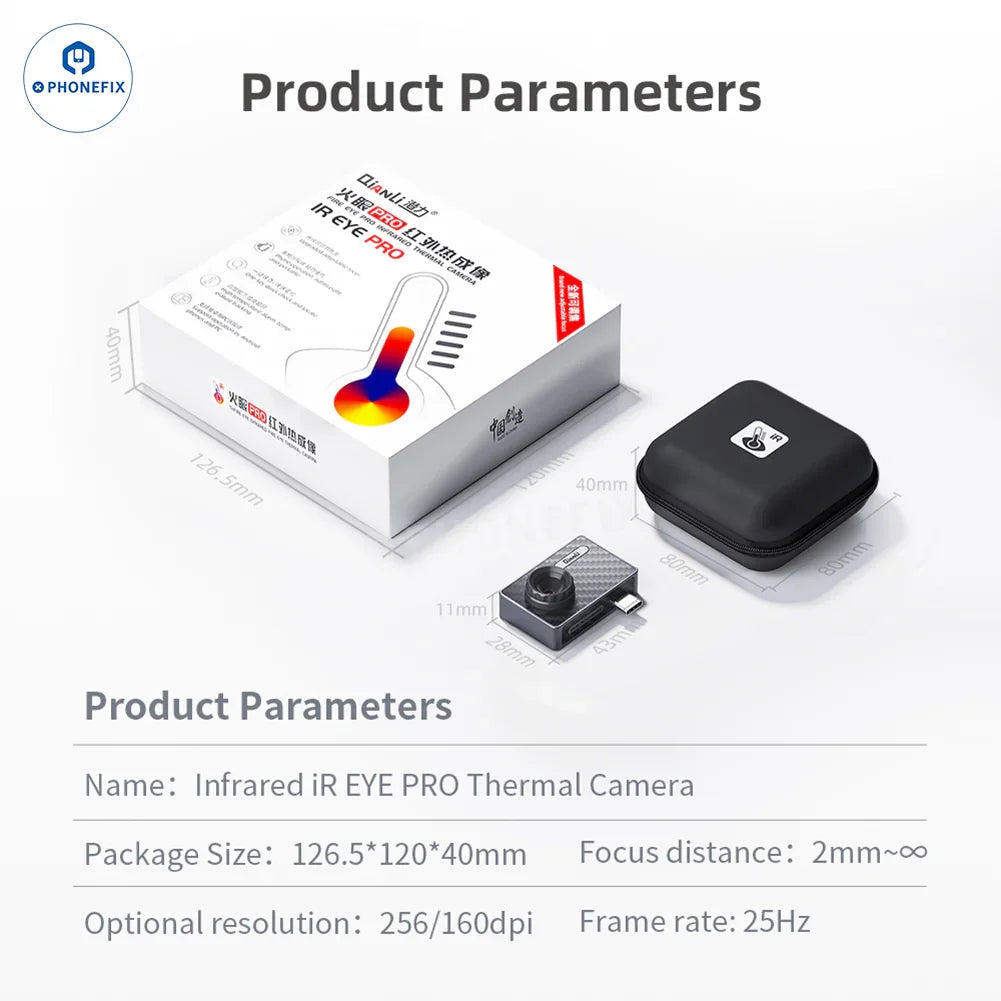

Parameters:
Name: Qianli Infrared iR EYE PRO Thermal Camera.

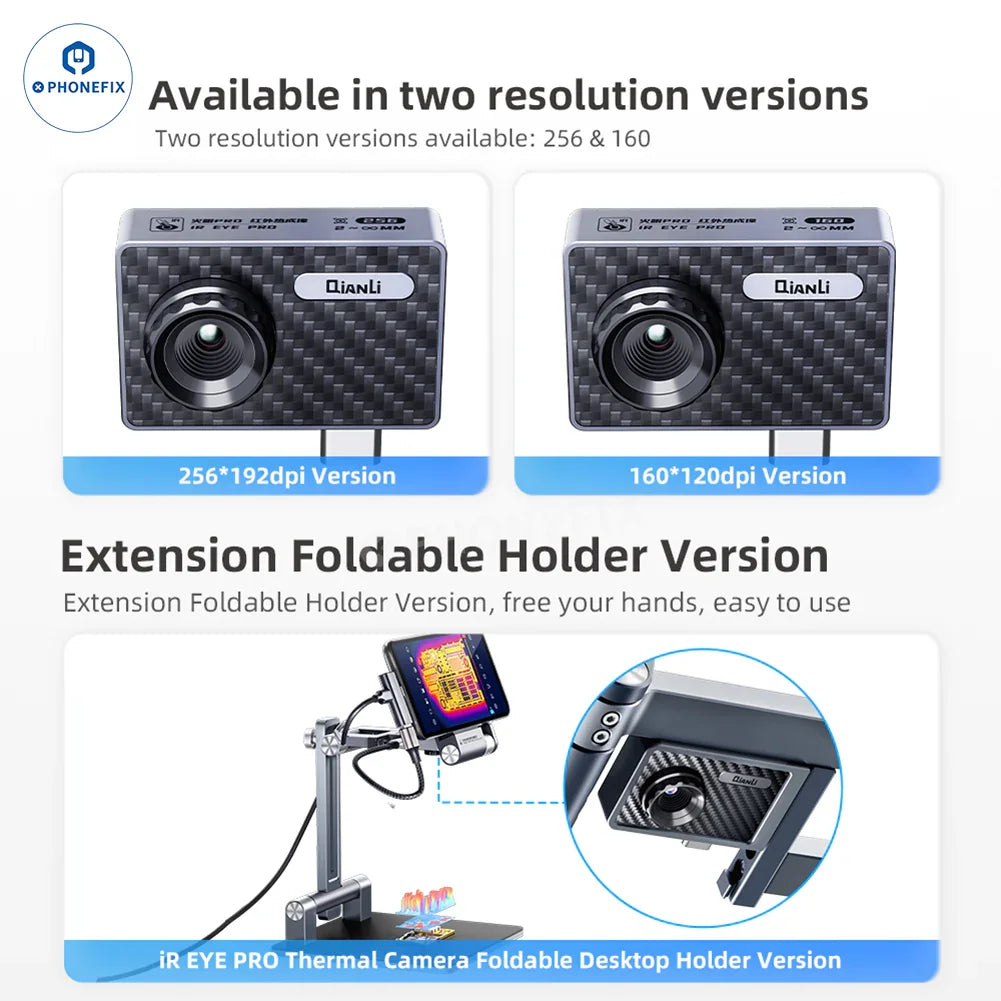

Optional resolution: 256*192, 160*120.
Working wavelength: 8-14um.
Frame frequency: 25Hz.
NETD: <50mk@25℃.
Focus distance: 2mm-∞.
Field of view angle: 56° x 42°, 35° x 27°.
Temperature measurement range: -20℃-120℃.
Temperature measurement accuracy: ±2℃/±2%.
Operating temperature: -10℃-75℃.
Storage temperature: -45℃-85℃.
Port: Type-C (currently only supports Android system).
Software: https://drive.google.com/file/d/1VB7jv2-9bMCS6RjVlBjNlUG3lhYUeJvI/view?usp=sharing
Features:
1. Qianli Fire Eye Pro infrared thermal camera, optional foldable holder, adjustable focus, one-key quick check, photo taking, video recording, picture enhancement, high-temperature alarm.
2. Intelligent analysis software to detect issues on the motherboard such as chip resistance, capacitor operating temperature, current leakage, and short circuits.

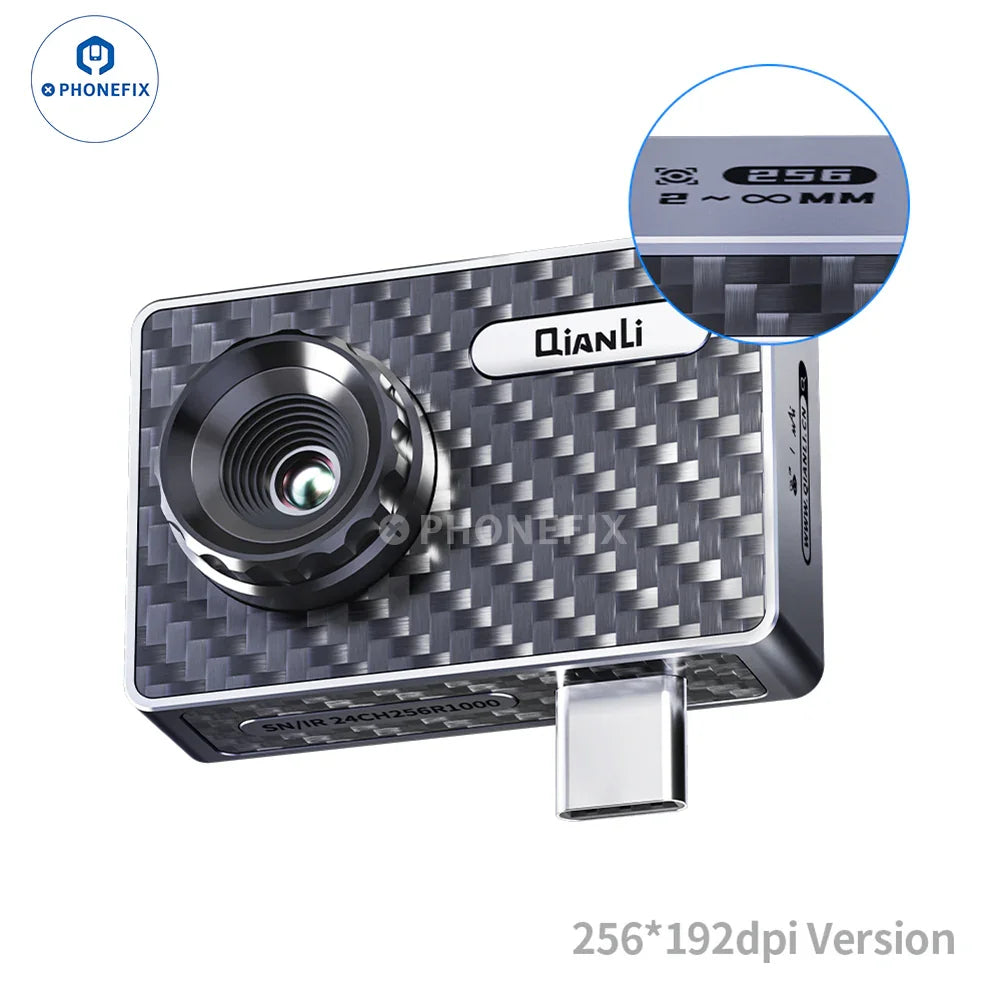

3. It has a resolution of 256x192 and a frame frequency of 25Hz, which provides clear thermal images necessary for precise diagnostics.
4. 2mm-∞ focus distance range, making it particularly effective for detailed work on mobile phone repairs and other small electronic components.

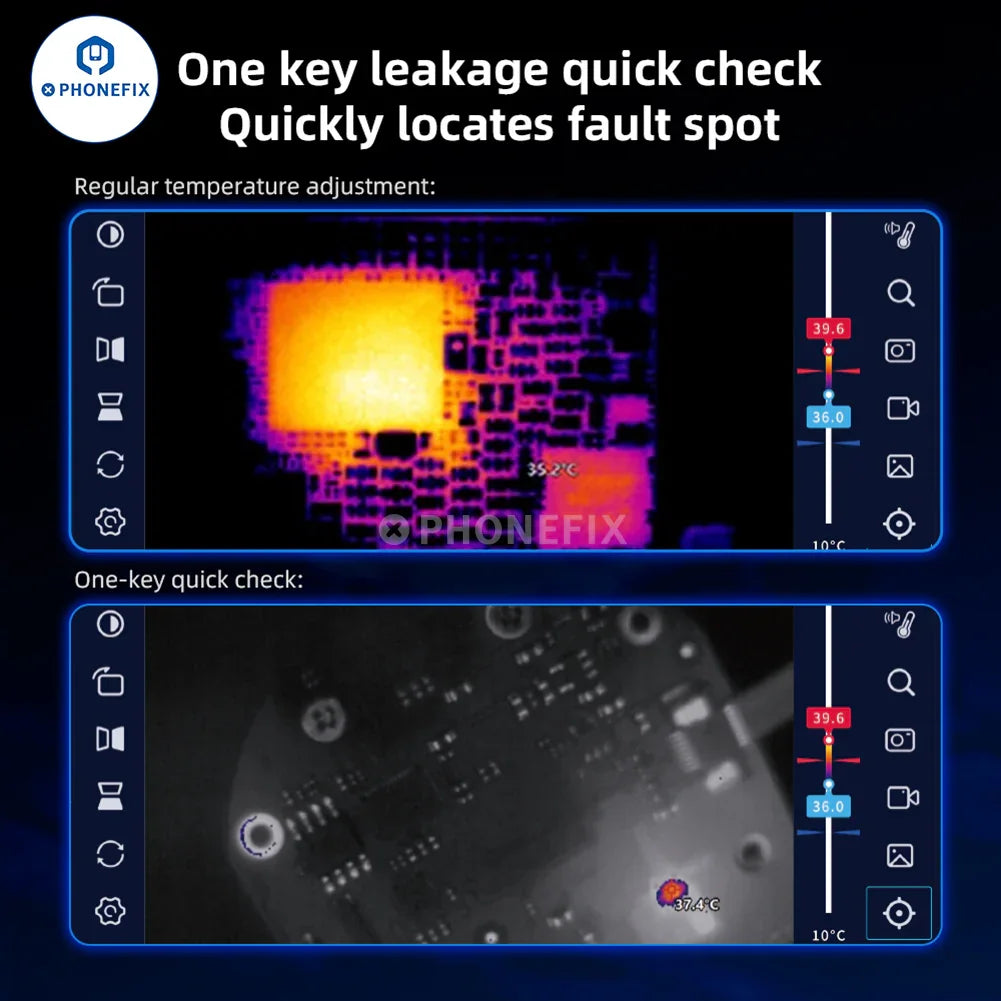

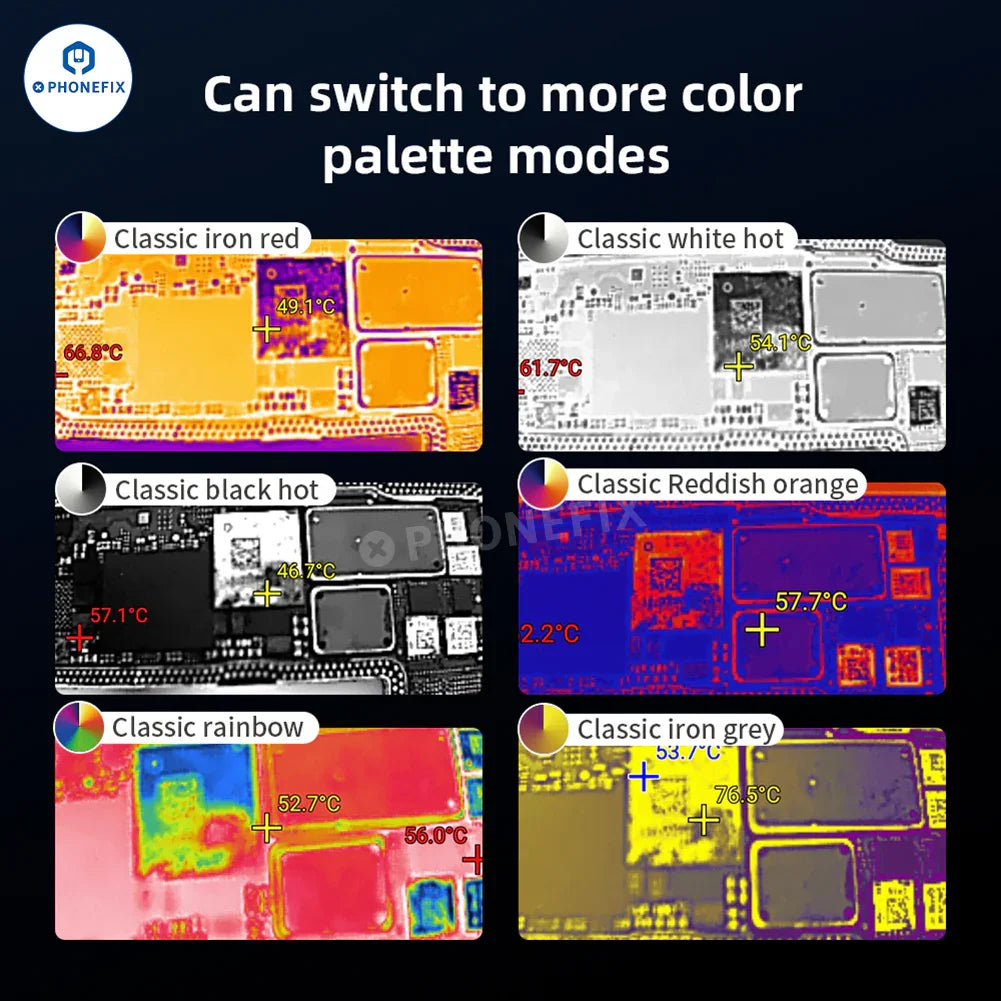

5. Quickly locate abnormal temperature points based on real-time temperature, and carefully troubleshoot faults by adjusting the temperature range.
6. High-temperature alarm, no need to watch in real-time, set the temperature for auto reminding, the high-temperature alarm can be turned on or off according to the needs of the scenarios

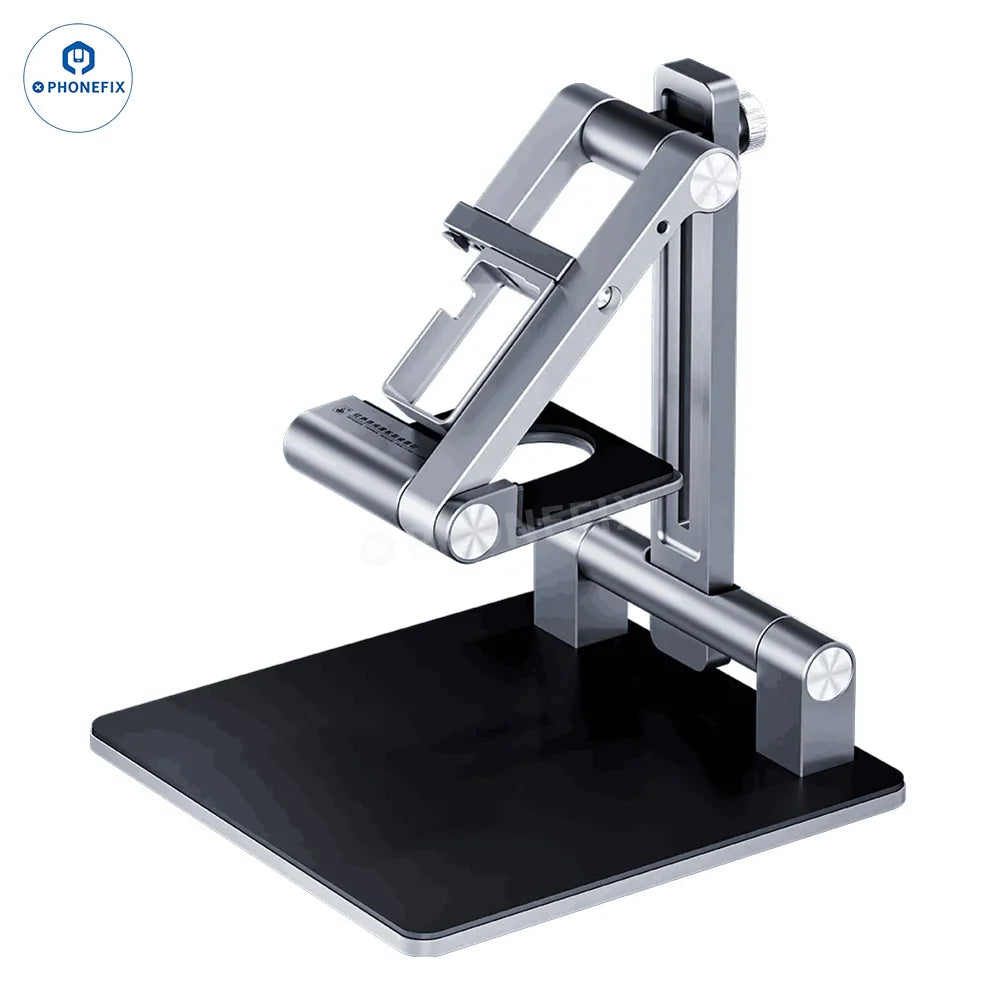

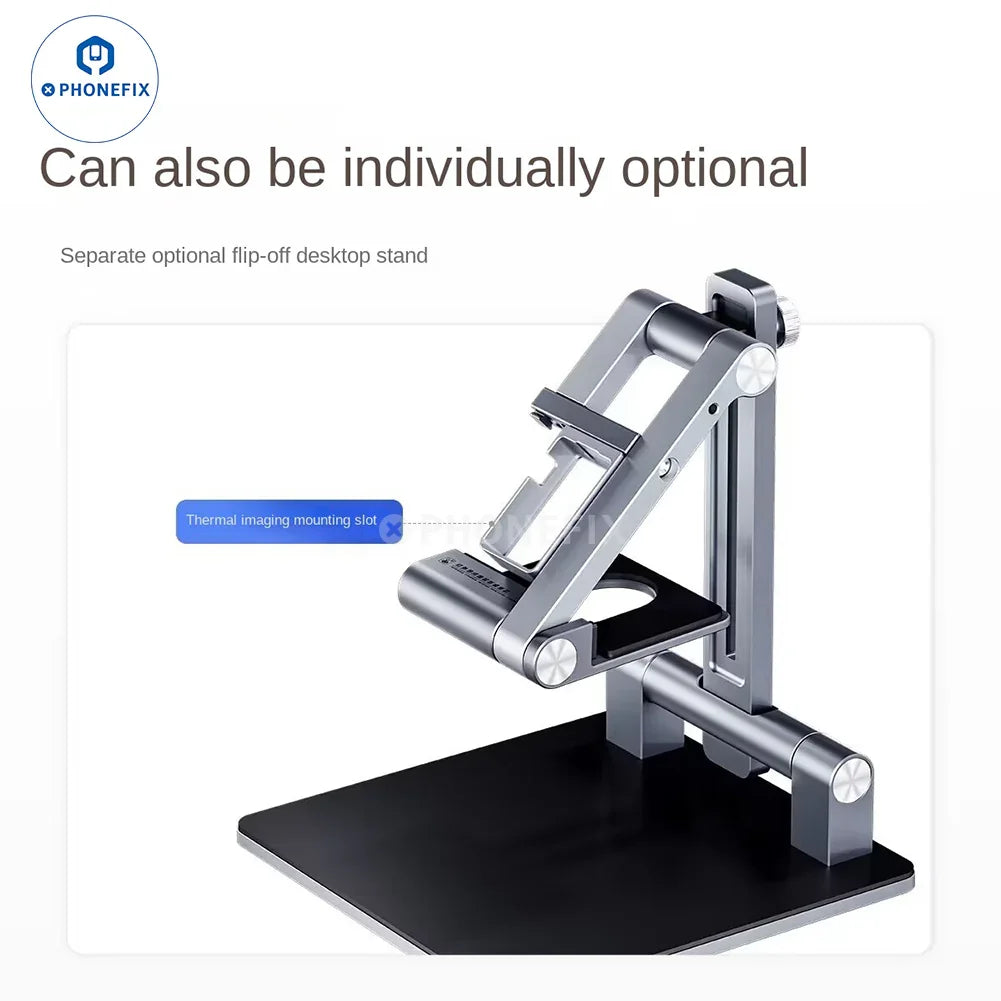

7. Universal phone holder, compatible with various phone models, holds firmly and stably

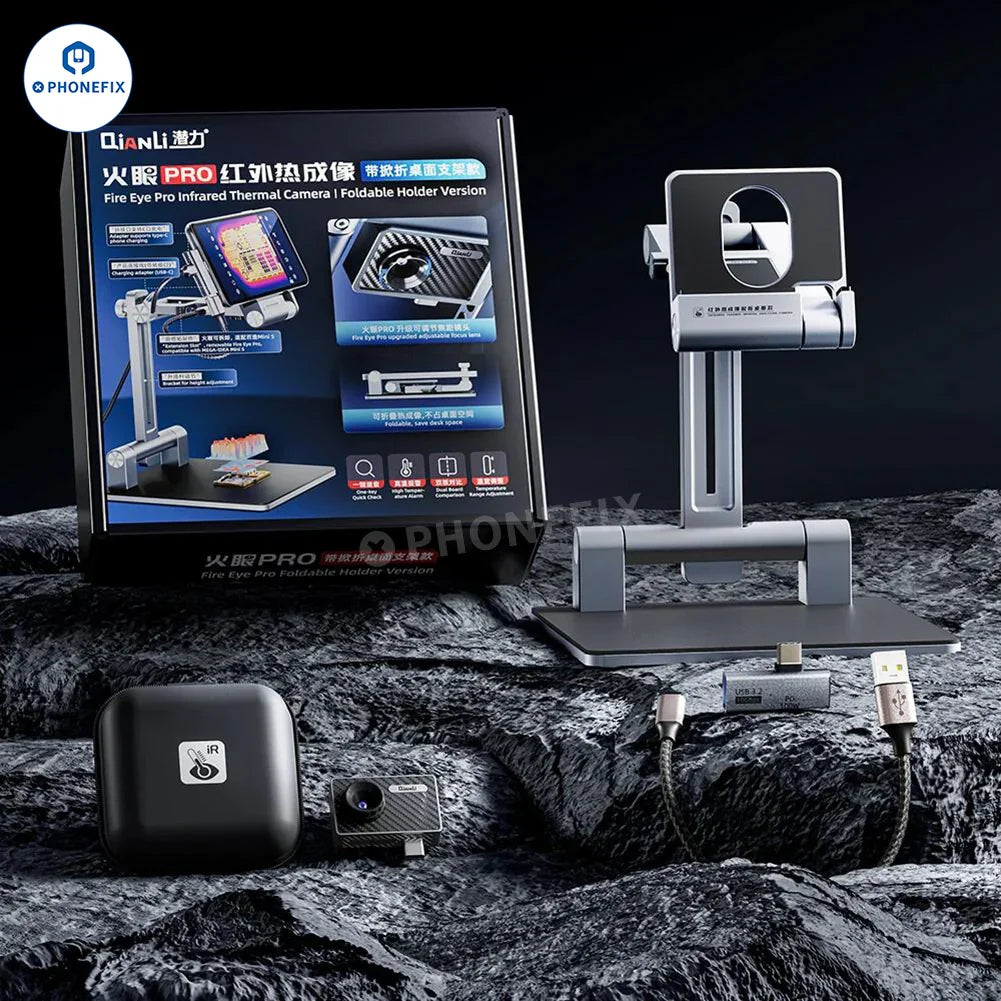

8. It comes with L shape 3 in 1 charging adapter, connects the thermal camera to a mobile phone, and charges easily and freely.

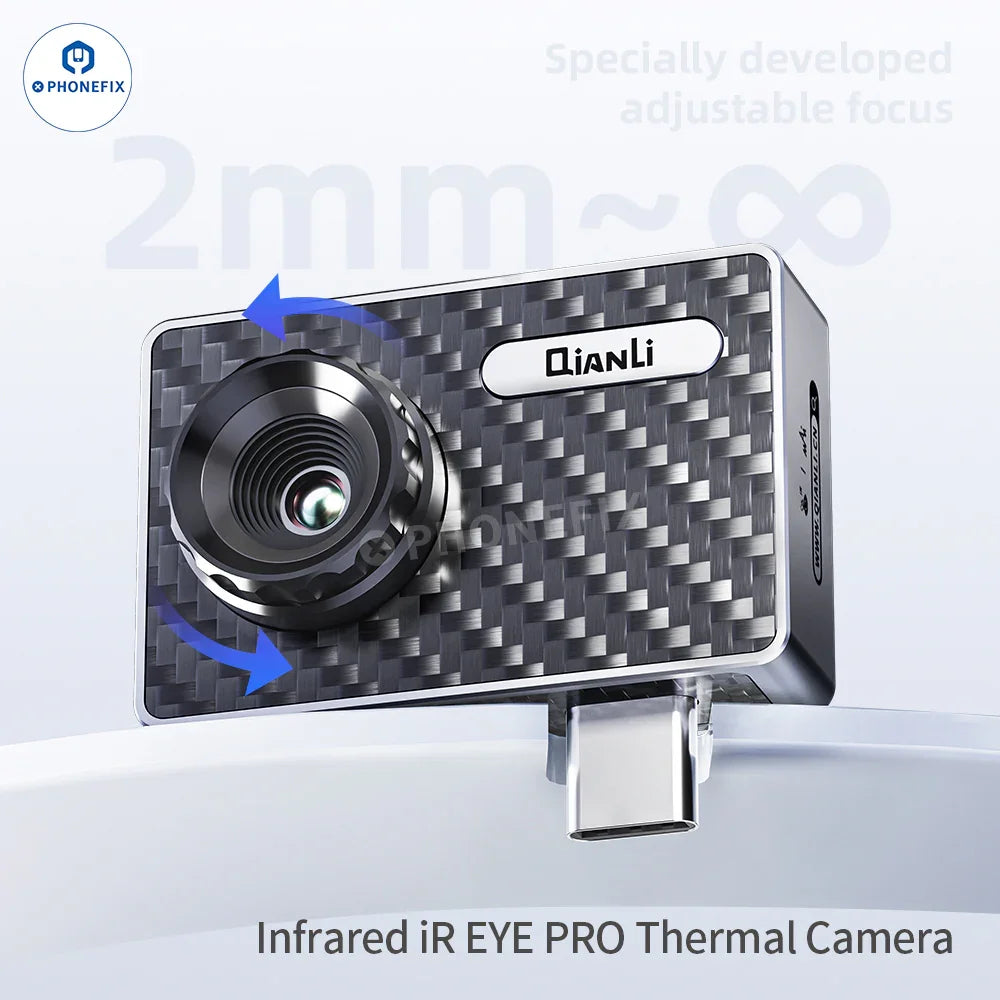

9. Liftable and foldable, slightly larger than a coin, adjustable focus, specially developed adjustable focus.
10. Upgraded adjustable focus, motherboards with different thicknesses may cause unclear images, and image clarity can be adjusted by the focal length of the camera.

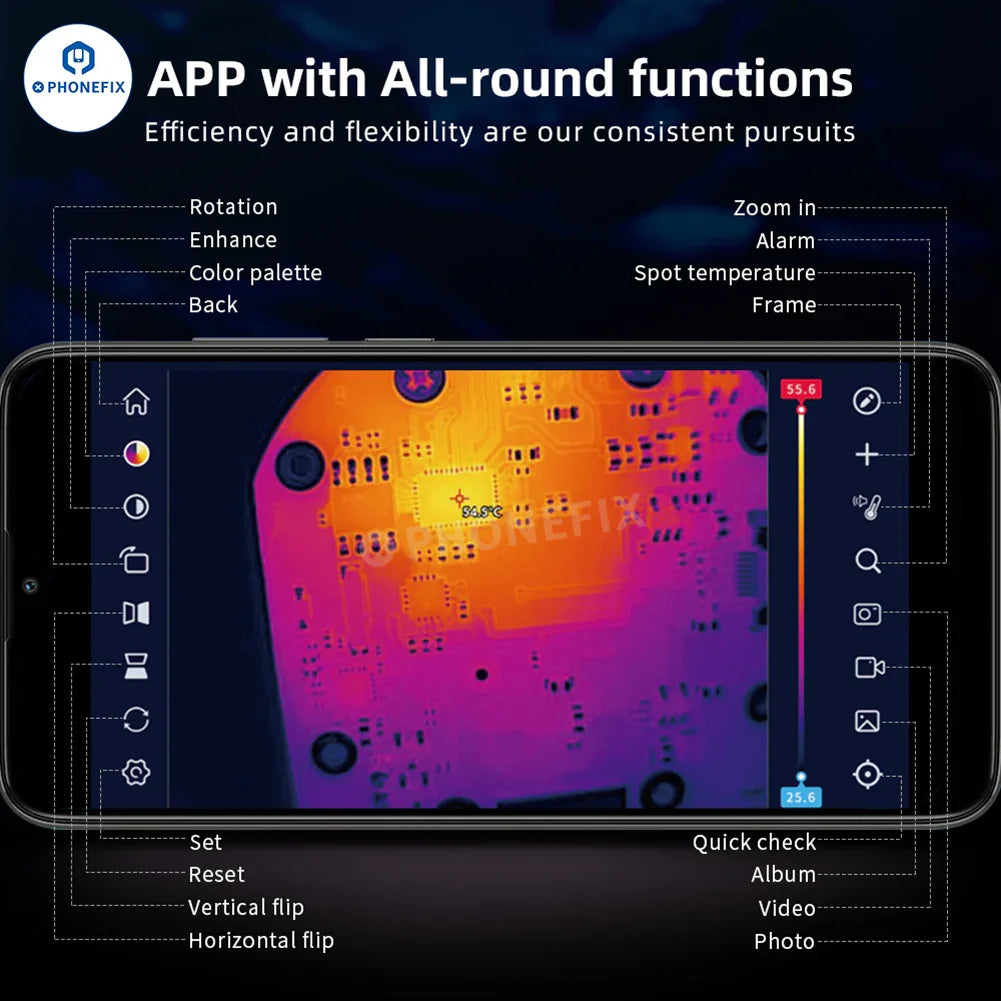

11. Mobile App/PC software usage smooth operation, Type-C port.

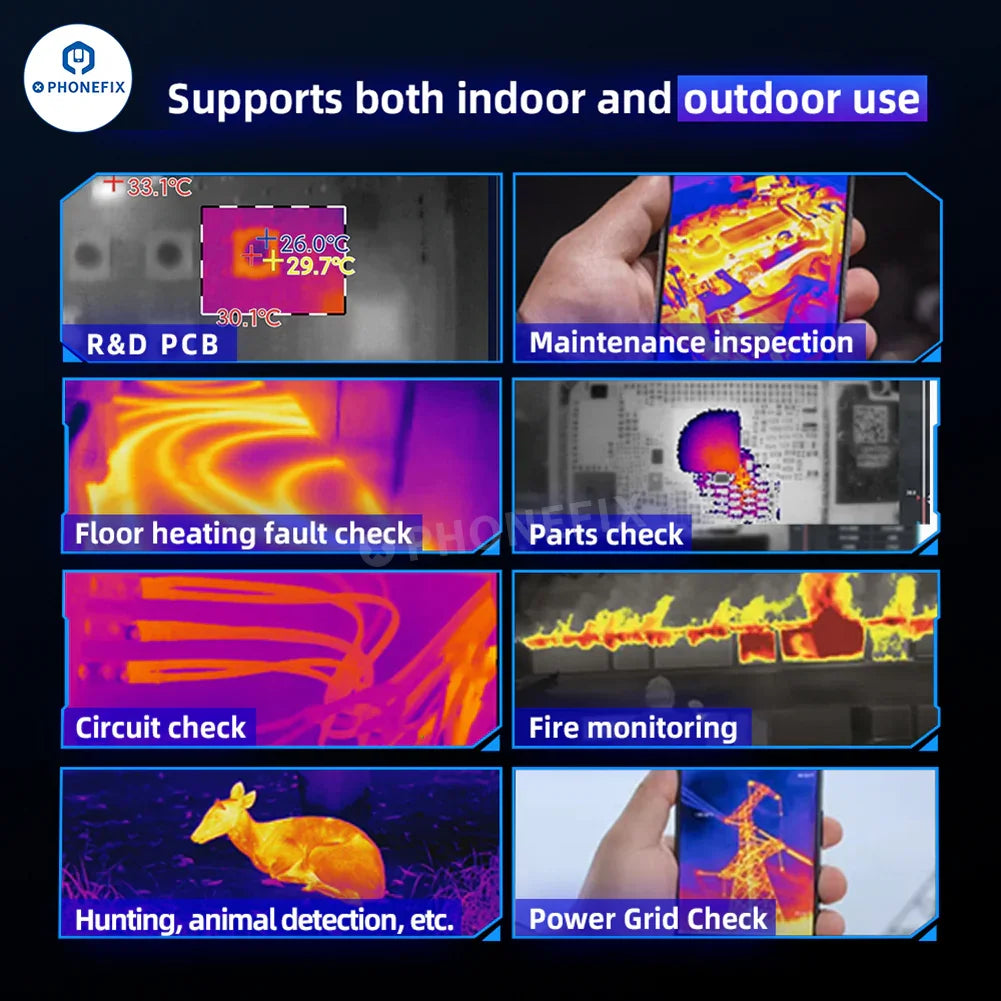

Applications:
The QianLi Fire Eye Pro is primarily used for:
1. Mobile Phone Motherboard Repair: Identifying damaged components like ICs or capacitors by detecting heat from power leakage.
2. Electronic Diagnostics: Troubleshooting and maintaining various electronic devices by comparing normal and abnormal motherboard conditions.
