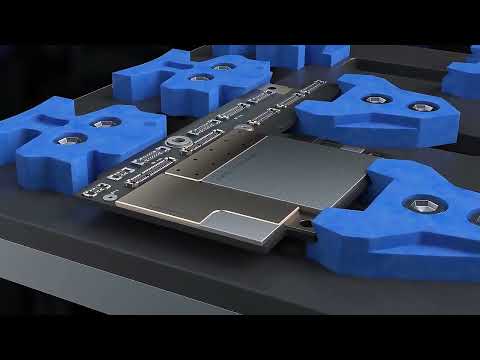

MiJing universal motherboard holder fixture T22 MAX/T22 Pro/T23 MAX/T26. Mijing iRepair U3/U6 universal motherboard holder fixture for mobile phone motherboard soldering repair. Mijing Phone Repair PCB Holder Fixture T-series metal fixture for cell phone repair.
Option:
1. T22 MAX: Dual-shaft, 2 Axis.
2. T23 MAX: Triaxial, 3 Axis.
3. T22 PRO: Double-shaft.
4. T26: 6 Axis.
5. irepair U3: 3 Axis.（A replacement for the T23 Pro）
6. irepair U6: 6 Axis.（A replacement for the T26 Pro）
Product Features:
- MJ T Series Universal Multifunction PCB Board Holder Fixture.
- Prevent clamps from moving during use, special anti-skid pad, in order to allow heating. Let the hot air can be discharged more efficiency. Add heat sink to button of clamp.
- Rotary shaft locks the motherboard or IC more efficiency, Fixed well without rebound.
- Fixture also support IC type fixtures fixed for removal of back glue, the clamp is designed to bear the force of IC beam, which can hold up the empty parts of IC well and avoid the IC breaking when removing black glue.
- The fixture can be adjusted at difference distance from the high, middle and low levels. It's necessary to loosen the two screw as the bottom, move the fixing plate to the appropriate gear position, and then tighten the bottom screws to lock it.
Package includes :
