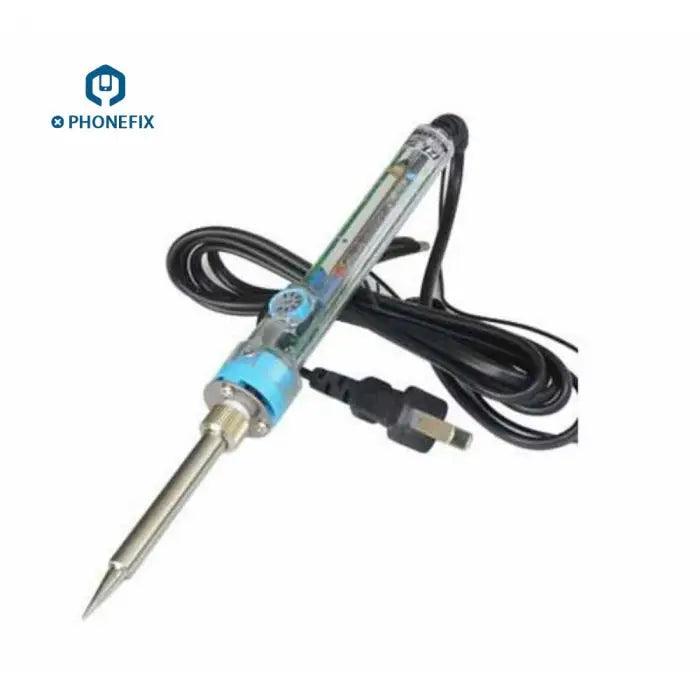

Microcomputer intelligence soldering iron - Lead-Free Soldering Iron
Intelligent automatic temperature controller and other components, the button on the handle directly thermostat, LCD temperature display with speed heating, precise temperature control, no leakage in the form of design, in addition to static,feel light, nice advantages. Protection during welding board and improve the reliability of the circuit elements, it has particularly excellent
Product Specification :
- Power supply voltage: 220V 50Hz
- Insulation resistance: 100 megohms
- Electric Strength: 3750V 1 minute without breakdown
- Leakage current: 1mA less
- Capacitance: 20PF less
- Max Power: 60W 70W 80W 100W 150W
- Temperature range: 100-450 Celsius degree
- Start-up time: <35 seconds
- Temperature accuracy: ± 2 Celsius degree
- Ground Resistance: <2 ohms
Features :
- Particularly stable welding temperature, the power of the heating element power;
- Fast heating of the heating function, strong regenerator temperature compensation;
- Lead-free long-life tip configuration, safe and reliable grounding device;
- Eco-friendly ways of working, power consumption 50% lower than the average iron.
How to use :
- Power 35 seconds to carry out welding work.
- With two buttons on the handle, you can use the heating or cooling process, press the button once for each change in temperature of 5 Celsius degree.
- Adjust the buttons on the handle, you can between 200 -450 Celsius degree arbitrarily set the desired temperature.
- The LCD screen displays the temperature directly, the temperature digits flash, the tip temperature is being adjusted, the temperature figures stable, tip temperature is set temperature.
