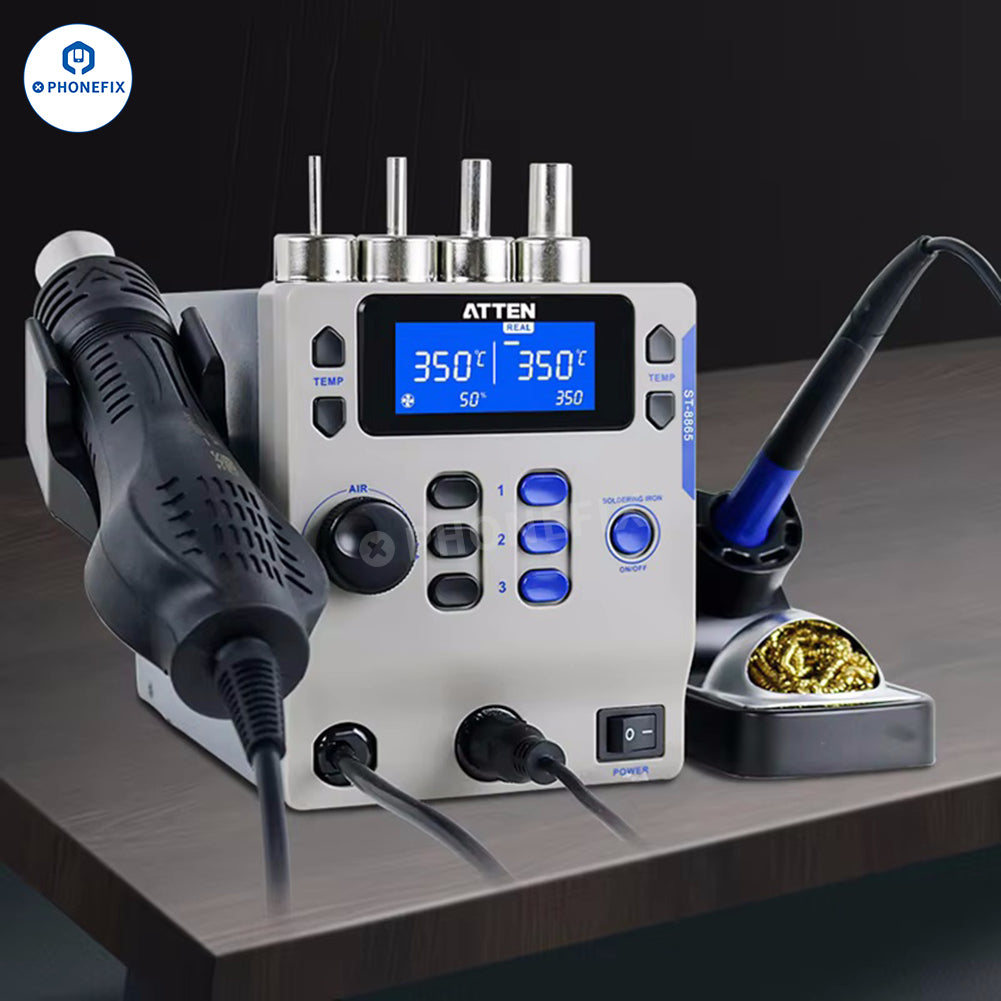

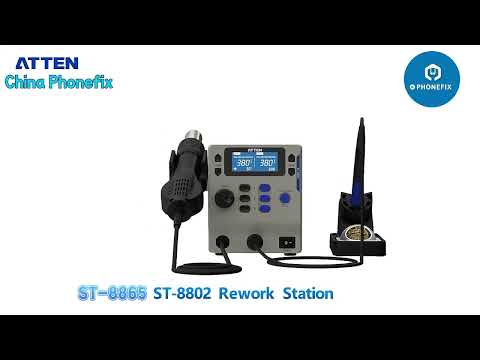

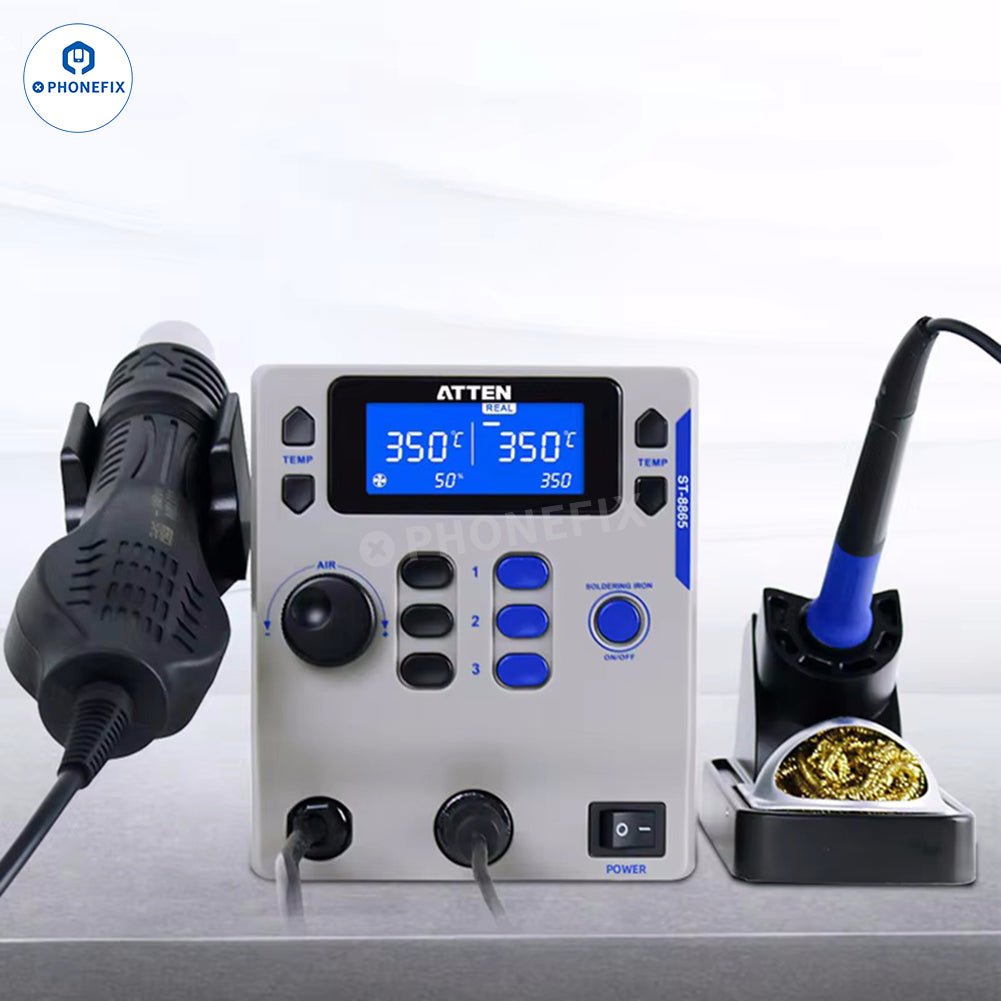

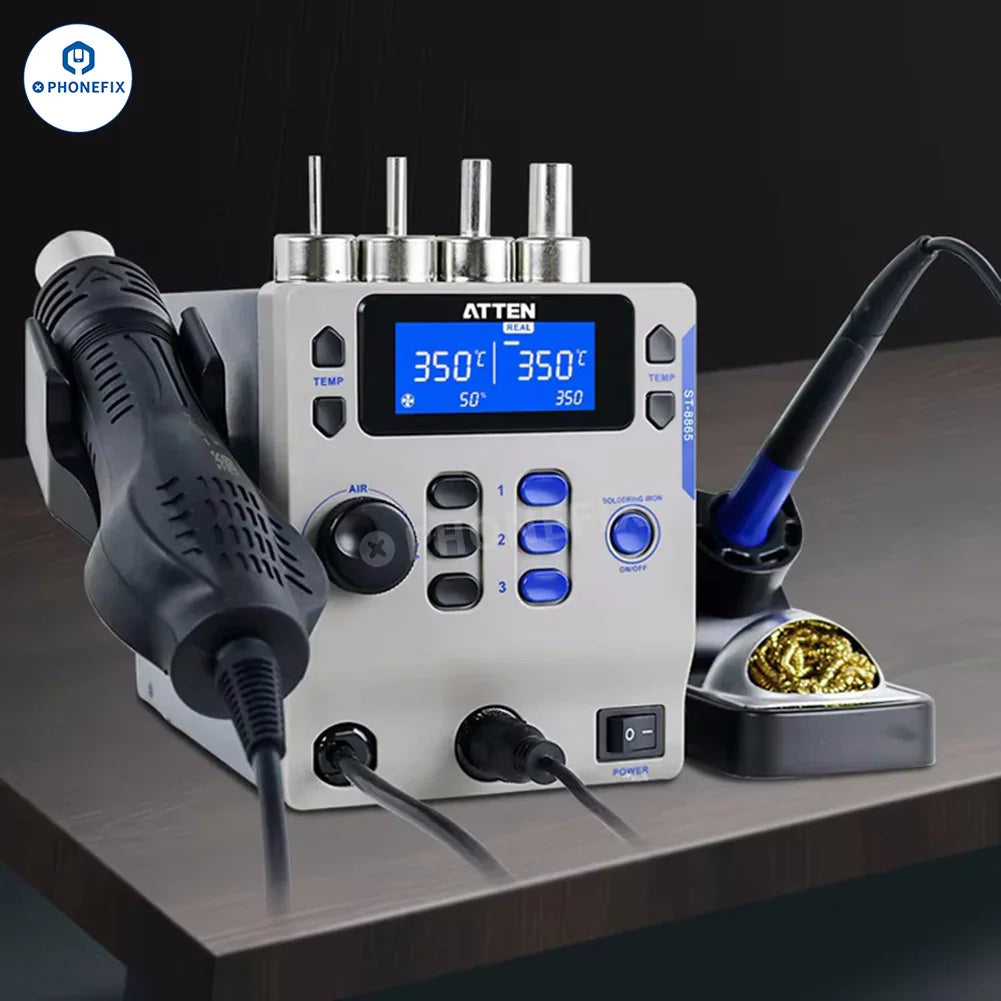

ATTEN ST-8865 (ST-8802) Intelligent 2-In-1 Digital Rework Station with Soldering Iron Hot Air Gun Dual Channels for mobile phone/tablets/electronic motherboard BGA SMD soldering/desoldering repair. ATTEN ST-8865 800W heat gun and 65W electric soldering iron, constant temperature operation, rapid heating/recovery, and automatic sleep.
Features:
1. With password protection, key lock, timing and temperature compensation functions, easy to control and flexible to use.
2. With automatic large air volume cooling function, it effectively protects the life of the heating core and handle, and can cope with special uses.
3. Three sets of quick temperature keys can be set and saved independently, which is easy to use.
4. Large screen LCD display, convenient temperature/air volume adjustment.
5. Adopt brushless vortex fan to make the cyclone air output softer and more uniform.
6. Built-in touch sensor, automatic sleep function takes effect when the hot air gun is placed on the bracket.
7. The hot air gun will automatically enter sleep mode when placed on the bracket; the hot air gun will turn off heating after being placed on the bracket for 30 minutes.
8. Temperature adjustment: long press to adjust 10 units each time; short press to adjust 1 unit each time.
Please note that ST-8802 and ST-8865 are the same product, just called differently in different regions.

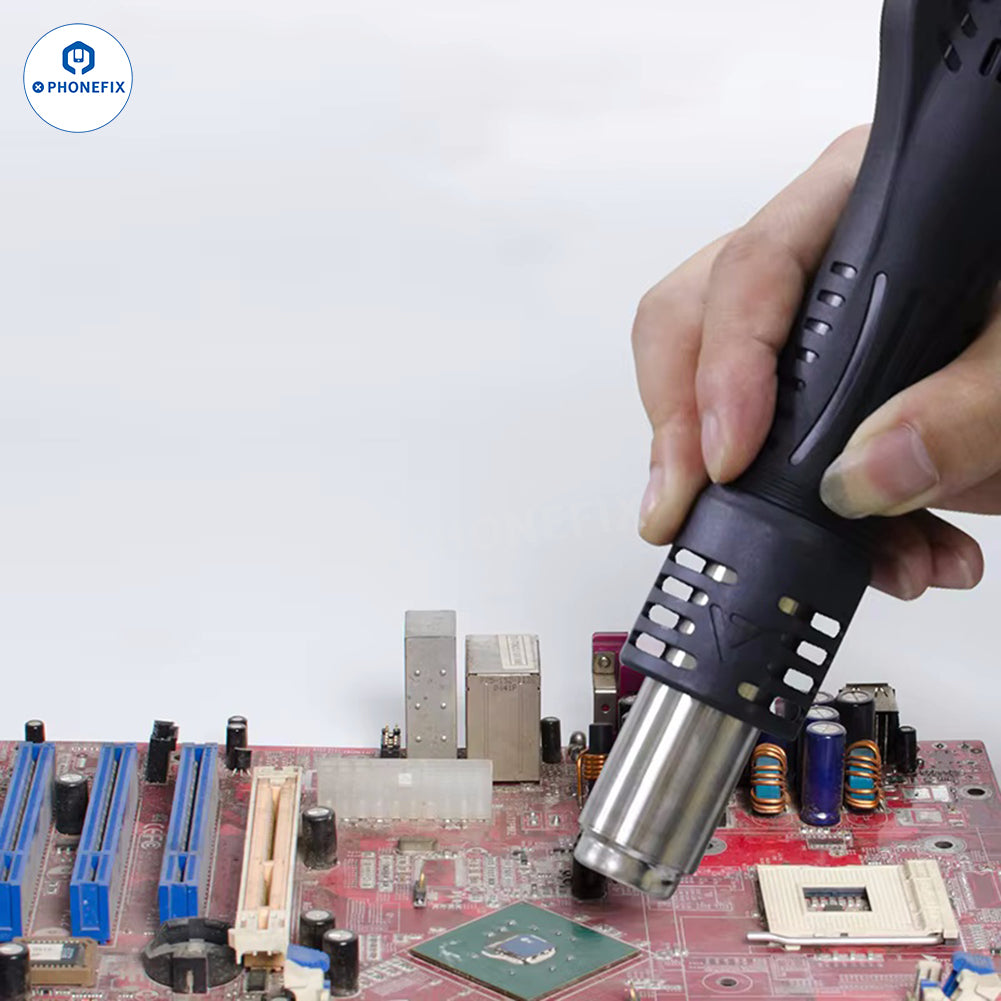

Hot Air Gun Specification:
Power: 800W
Temperature range: 100℃~500℃ / 212℉~932℉
Temperature stability: ±5℃.
Temperature accuracy: ±35℃.
Air flow: 120L/min.
The handle type: AP-800B.

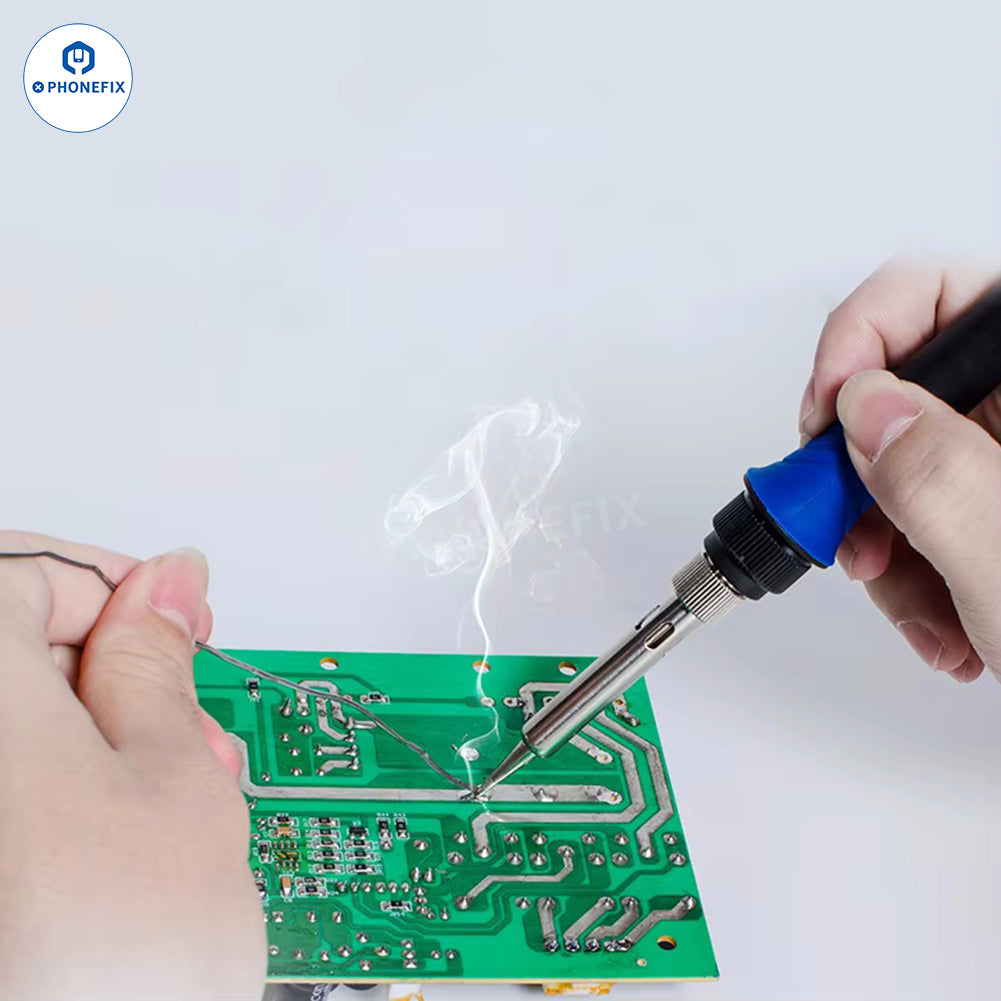

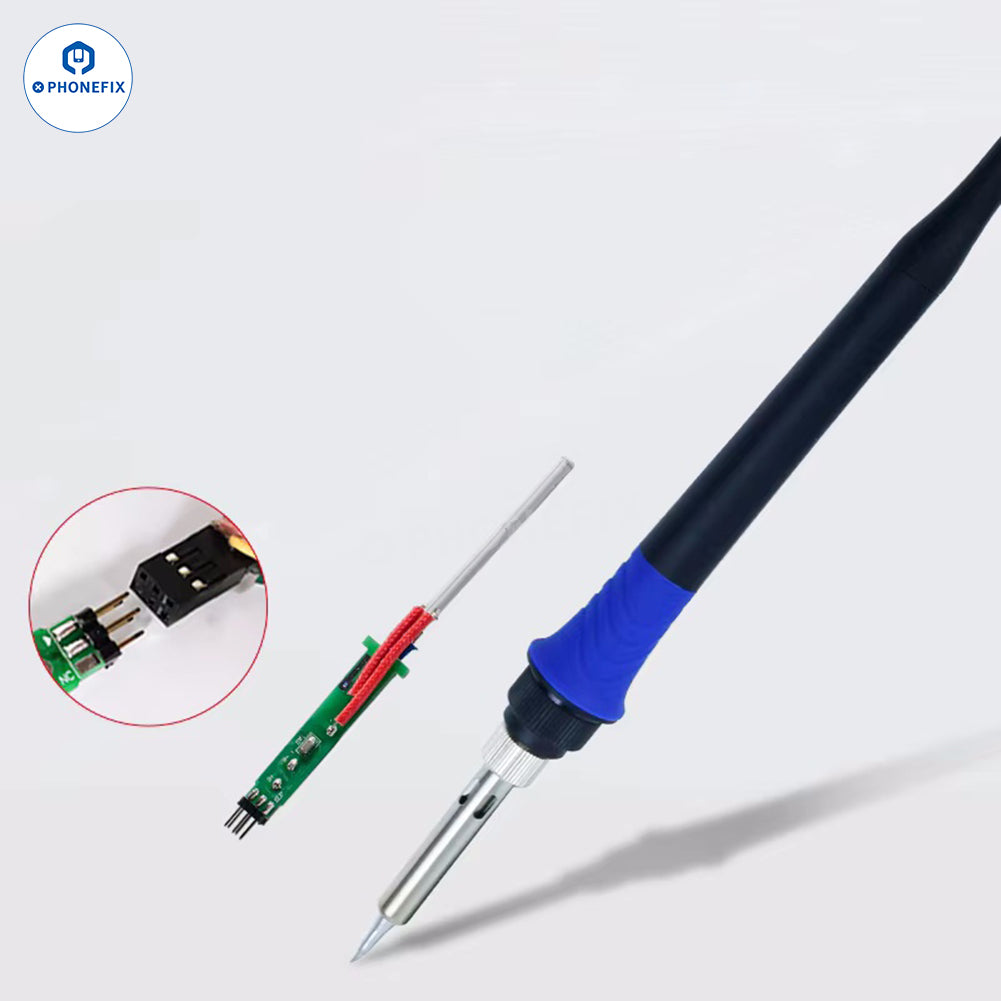

Soldering Iron Specification:
Power: 65W.
Temperature range: 80℃~480℃ / 176℉~896℉.
Temperature stability: ±2℃.
Standby mode: 0~60mins.
Turn off heating function: After 10mins standby will turn off the heating.
Specification:
Model: ST-8865 (ST-8802).
Total Power: 800W.
Voltage: AC 110V/220V 50Hz/60Hz.
Fuse type: T5A(230V) / T10A(110V).
Shortcut temperature: 3 sets.
Working conditions: Temperature 0-40°C, relative humidity <80%.
Storage conditions: Temperature -20-80°C, relative humidity <80%.

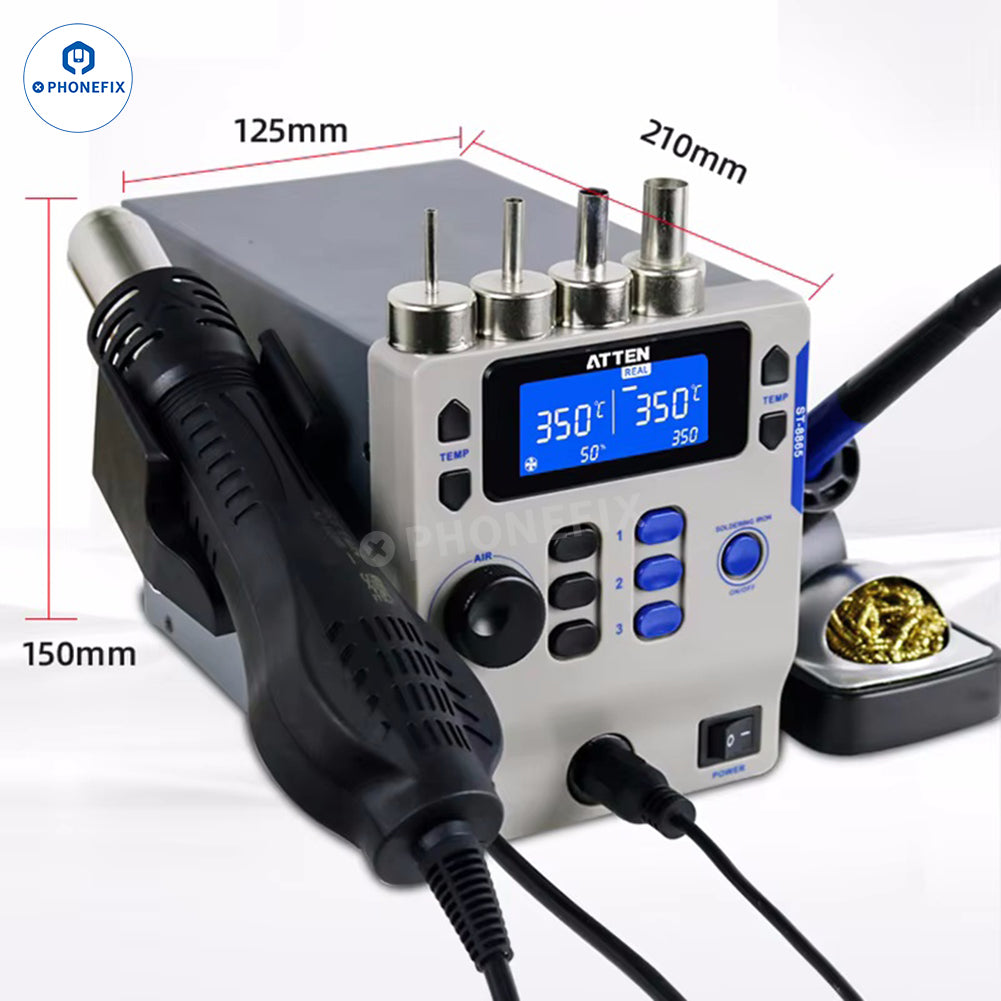

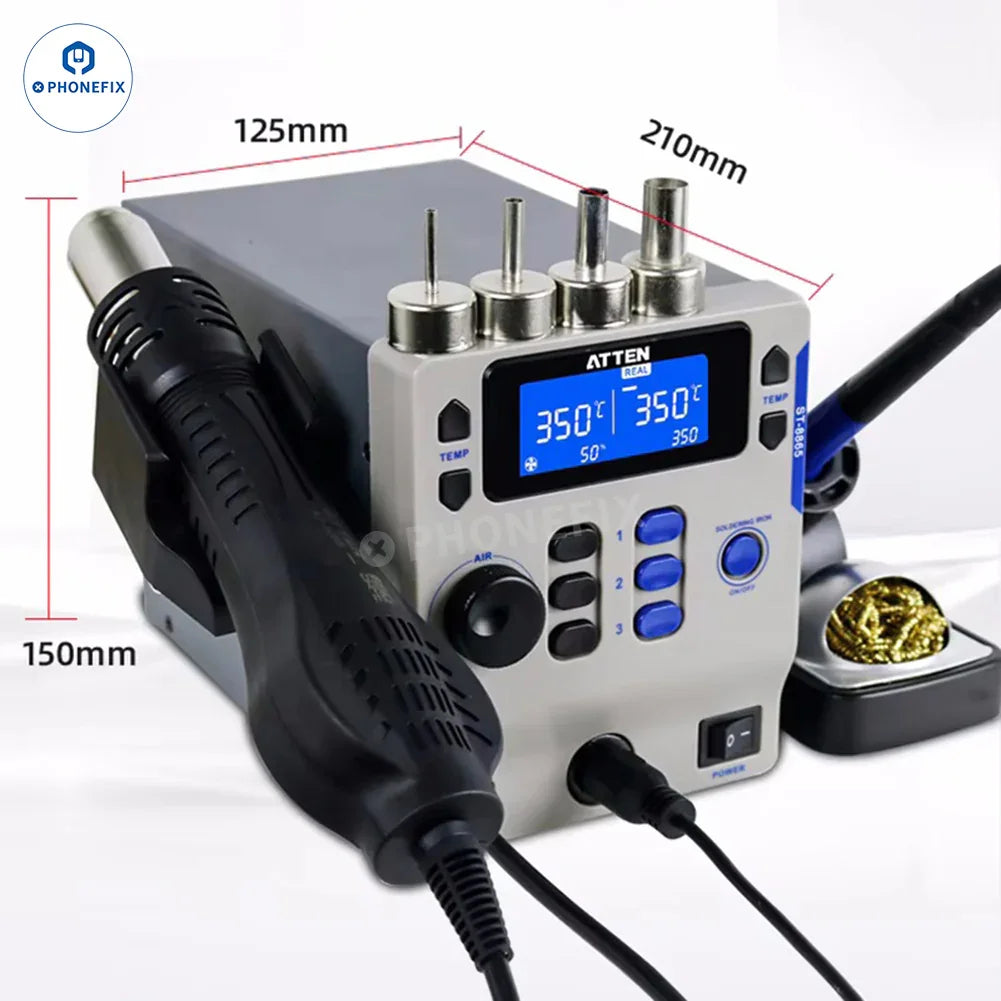

Dimension: 32X26X20 cm
Weight: 4.200 kg.
