110/220V 100W S-998P PN-998 electric vacuum double-pump solder sucker desoldering gun soldering iron, S-998P desoldering gun is very easy for you to desoldering and remove the solder, S-998P desoldering gun device is 2 in 1 soldering / desoldering station, including soldering iron and desoldering vacuum pump.
220V AC / 100W 350℃~450℃ : S-998P Electric Desoldering Gun Vacuum Pump Solder Sucker. S-998P=PN-998P.
Features :
- Fast heat up function, heated up to 350 *C for one minute a stable working temperature and the instantaneous temperature function, suitable for continuous use

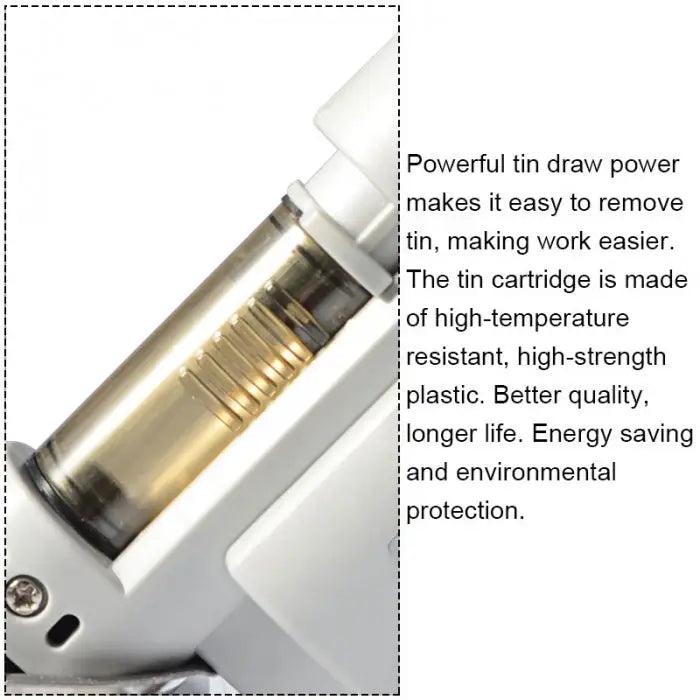

- Storage Tin glass tube with heat, easily disassembled for easy cleaning
- Enhanced double-pump, suction larger, more easily than tin
- Transparent back cover, air pump working at a glance
- Design horizontal motor
- Pump easy to clean, easy to maintain
- High insulation, anti-static
- Super longevity printed circuit ceramic heater
- Suction greater than 650 mmhg
- Suitable for double-sided and multilayer circuit boards
- Adjustable constant temperature of 350 ℃ -450 ℃
- High power heating with rapid heating function
- Stable operating temperature ± 2 ° C.
- High insulation design in addition to static patent
- Horizontally motor design

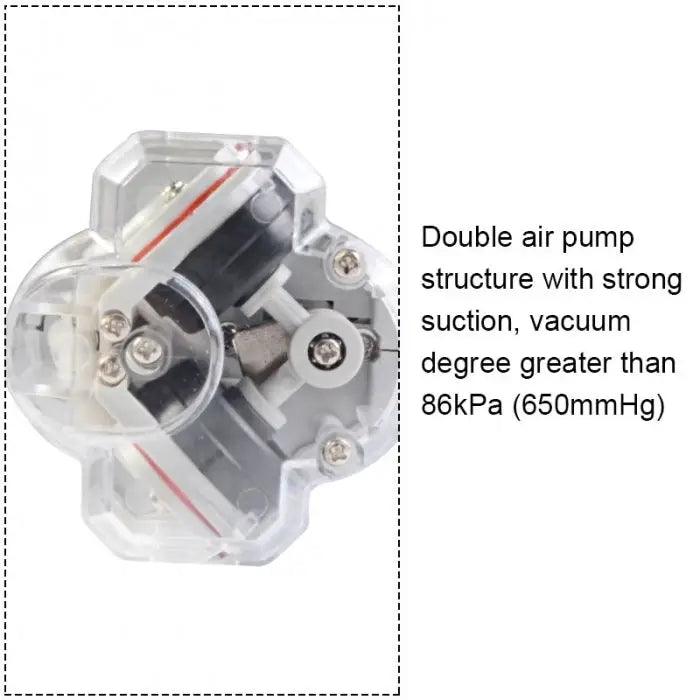

- Dual air pump structure strong suction
- Energized minutes
- Distribution ST-2091 Deluxe Desoldering gun holder
- Transparent back cover air pump work at a glance
- The air pump easy to clean and easy maintenance
Product Specification :
Model |
S-998P |
Power supply voltage |
AC 220V~240V 50Hz |
Vacuum pump |
Dual Diaphragm type |
Power consumption |
100W |
Motor Power |
≤20W |
Heat-generating components |
80W ceramic heater |
Temperature range |
350℃~450℃ |
Temperature control accuracy |
±2℃ |
Vacuum degree |
Greater than 650mmHg |
Insulation Resistance |
≥100MΩ |
Work |
Continuous |
Circuit control system |
No interference |

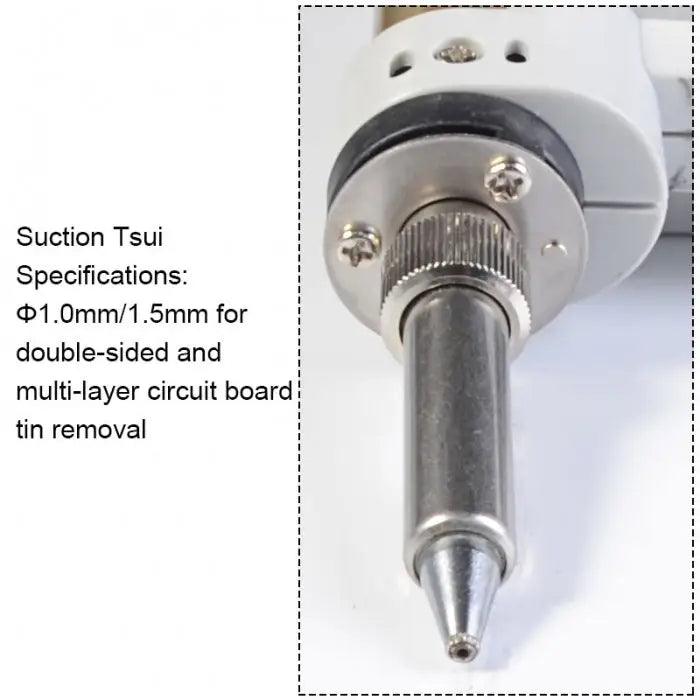

NOZZLE specifications |
∮1.2mm |
Package List :
- 1pcs x S-998P desoldering gun
- 2pcs x Cleaner needle
- 2pcs x Filter
- 1pcs x Desoldering gun
- 3pcs x 1.0mm nozzle + 1.5mm nozzle+2.0mm nozzle
