Finished product:

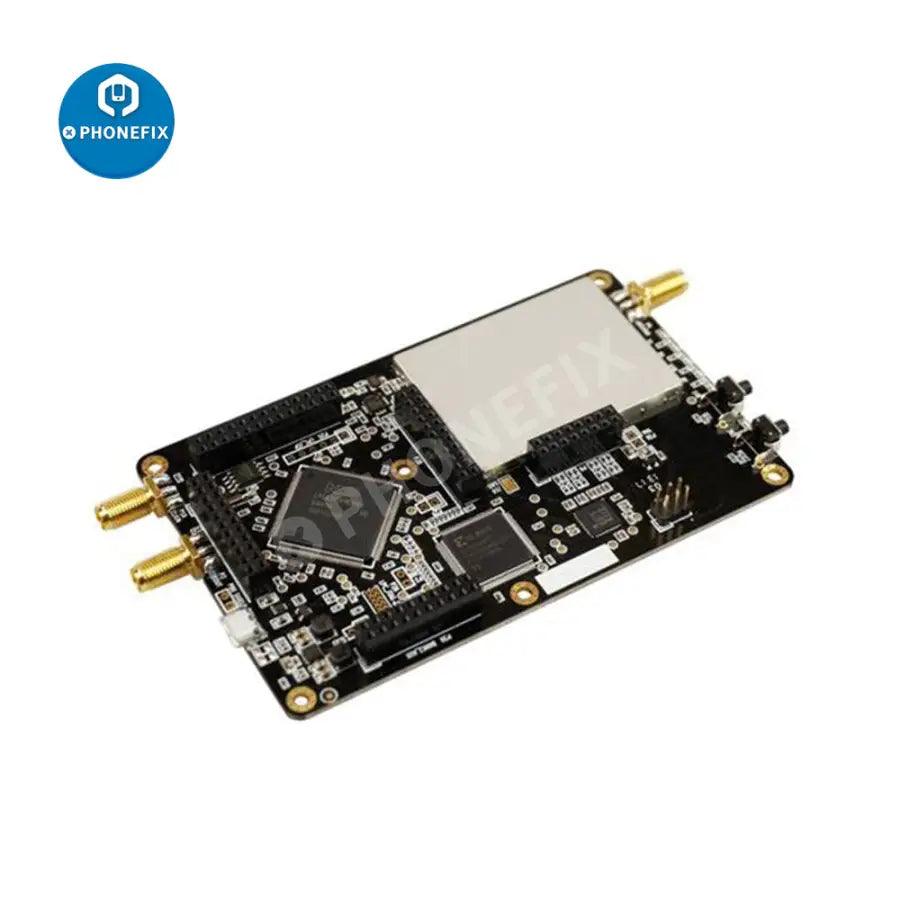

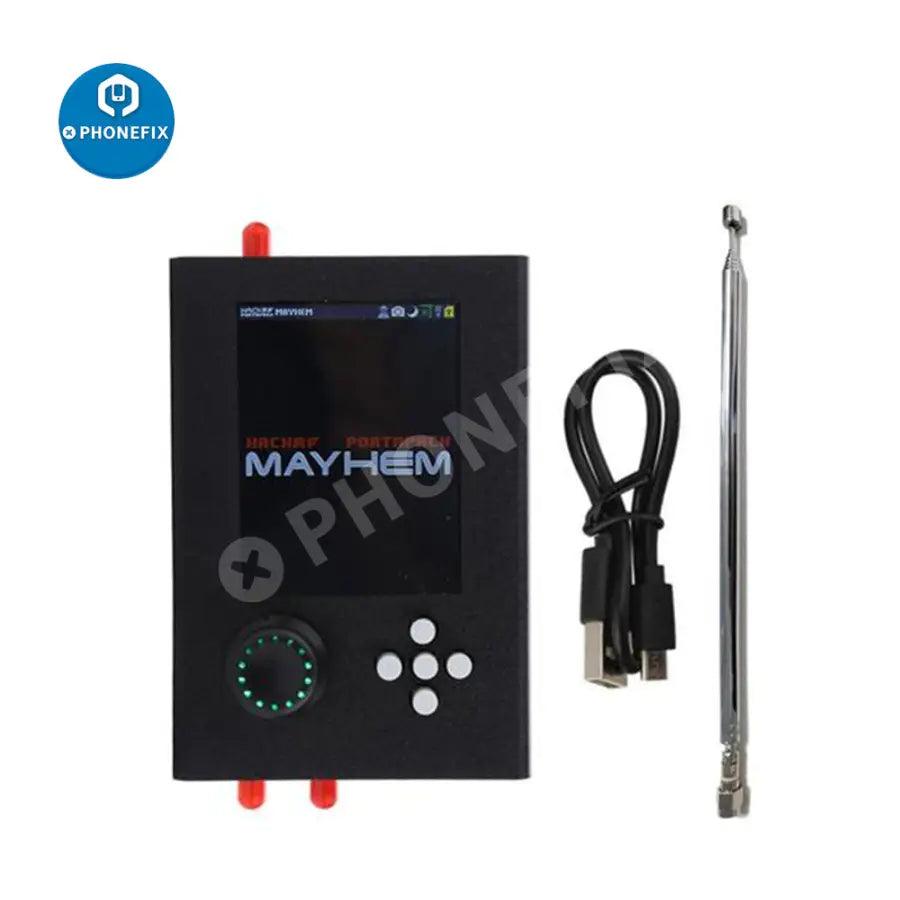

Ready to use, with hackrf one, battery, speaker and case assembled,mayhem v1.3.1 firmware installed.

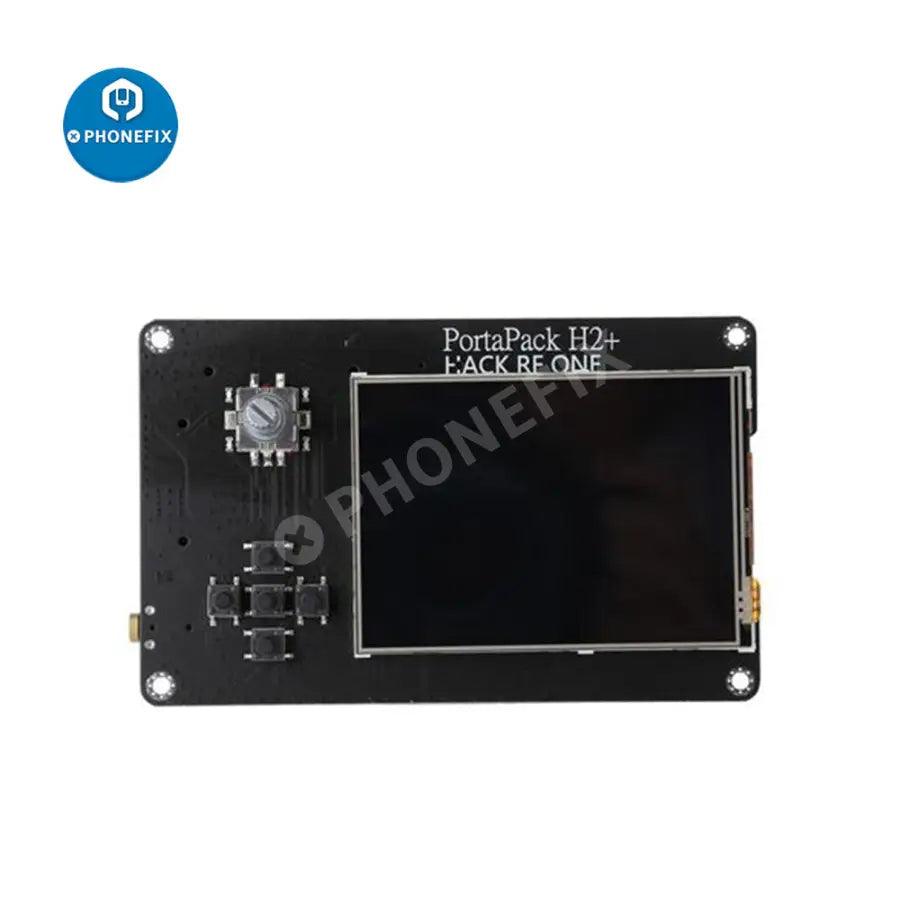

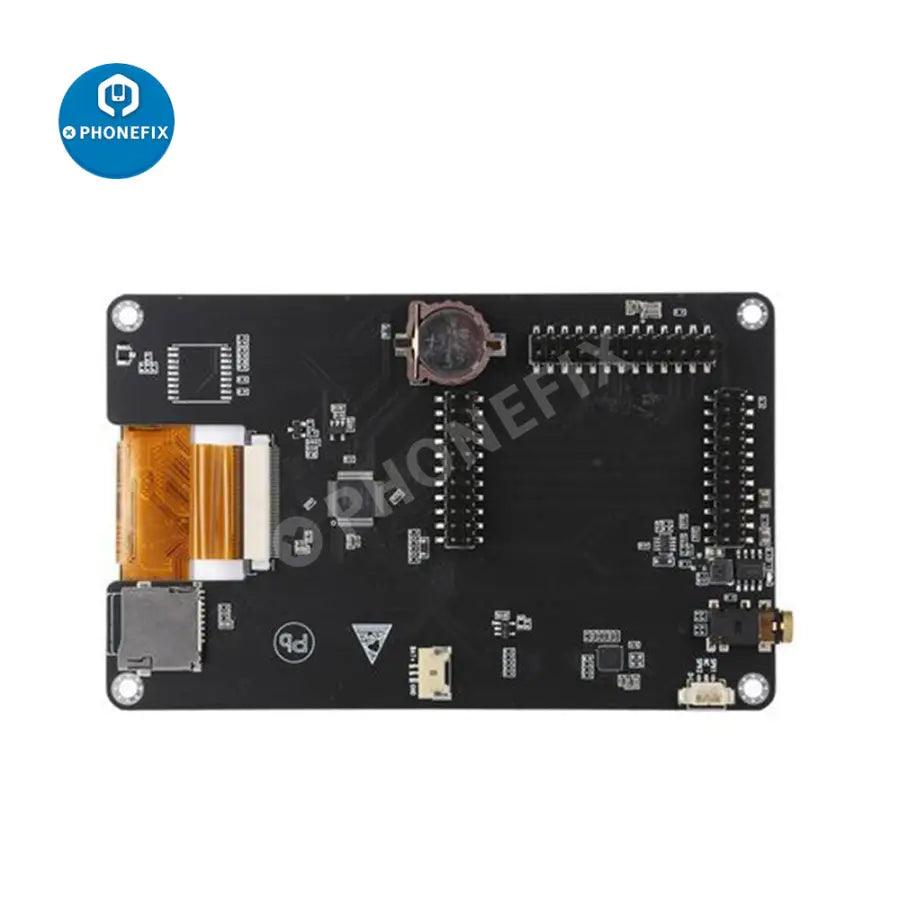

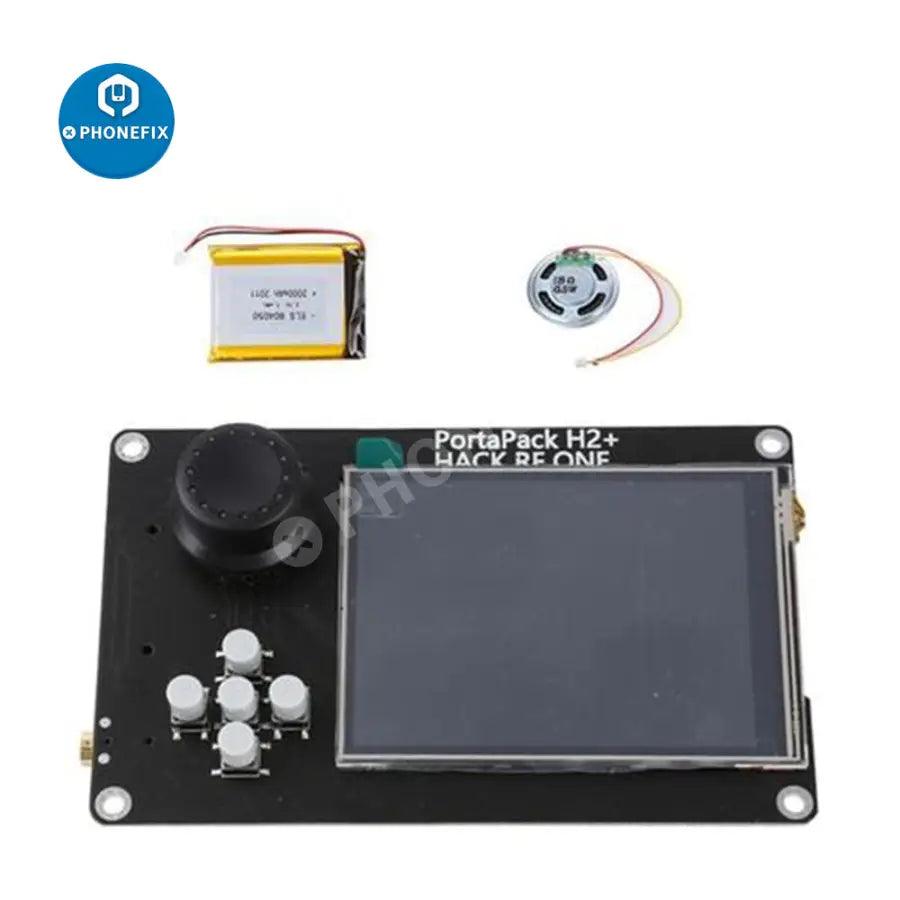

Portapack H2 Portapack H2 with battery,speaker,knob and caps of switch.

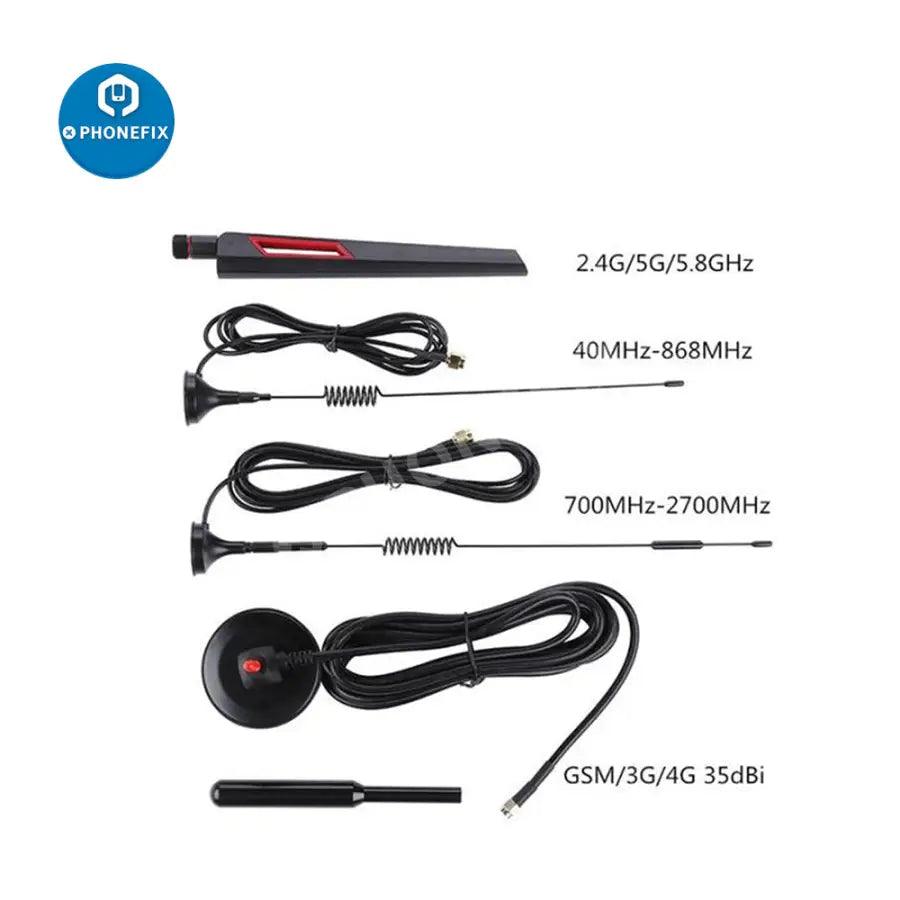

Antenna kit, include 4pcs antenna only.
Instruction:
Finished product update to black aluminum case on Feb 21th 2021,with speaker, the ABS case without enough space for speaker and easy to damage the screen. The PortaPack makes the HackRF One software-defined radio portable. It adds an LCD touchscreen, user interface navigation controls, audio output and input, micro SD card slot, 0.5 PPM crystal oscillator, and real-time clock battery backup,Li po battery Charger and Center key power on/off function(long press 3-4 sec). The PortaPack firmware provides a user interface and necessary signal processing to do many useful things without a computer. New ABS case, can protect the portapack and hackrf one well. With Mayhem firmware installed,ready to use.
Features:
3.2 inch touch screen With voice input and output function (ADC, DAC) With TF card slot (store data, playback data, frequency management) Built-in TCXO high-precision clock (0.5ppm), the frequency is as accurate as the walkie-talkie The new firmware automatically switches the external TCXO (you can see the clock source is external in the menu) Built-in CR1220 battery with RTC clock function (record current time when saving baseband file) Support offline GPS simulation.
What in the package:

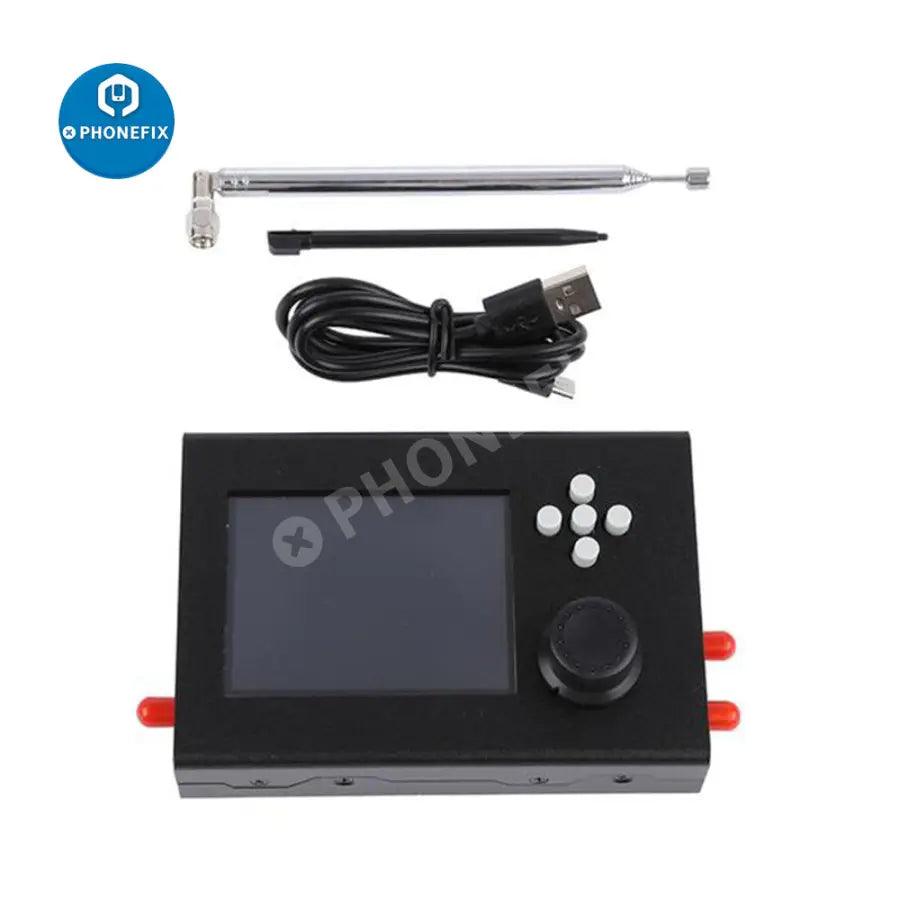

Finished product: 1 x Black Assembled with HackRF one,case and firmware installed 1 x Antenna 1 x USB cable 1 x Touch pen Portapack h2 1 x Portapack h2 1 x Knob 5 x Switch cap 1 x 2000mAh battery Antenna kit: Include the antenna as the picture shows
